Portable CTEL antenna amplifier component description - GF82.70-P-3111SXU
MODEL 221.0/1 up to 31.8.06 with CODE (494) USA version
MODEL 221.0/1 with CODE (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada up to Model Year 08

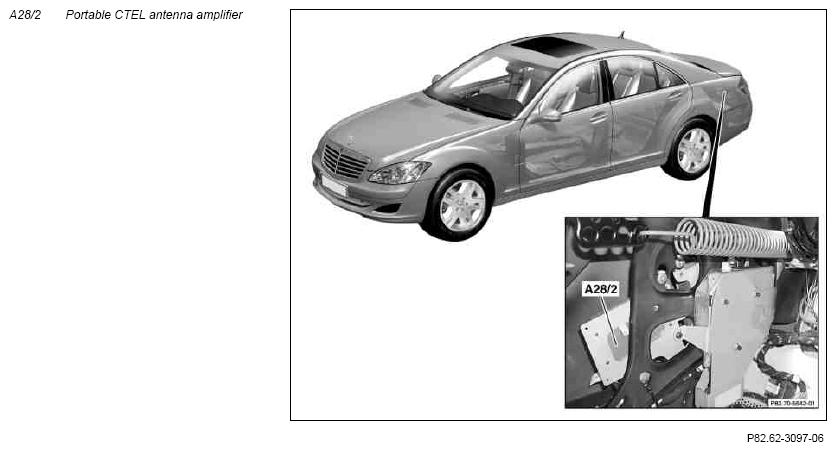

Location
The portable CTEL antenna amplifier is in the rear of the trunk on the left-hand side.
Task and function
The portable CTEL antenna amplifier compensates for transmission and reception losses in the antenna line. These physical losses can occur during use of the portable CTEL (A34/6), depending on the mobile telephone network frequency.
