Mobile phone system, location of components - GF82.70-P-0007-01LEJ

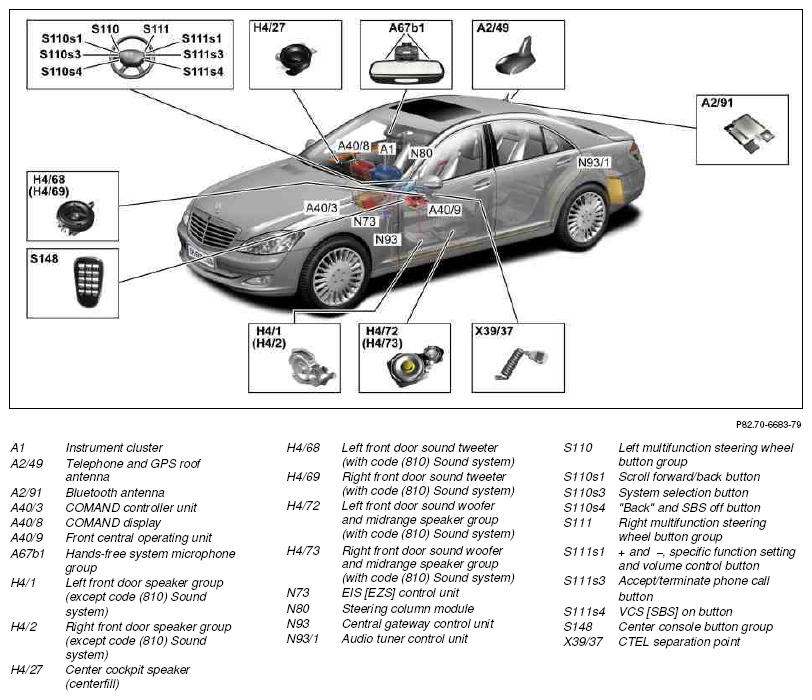

Fig 1: Mobile Phone System Components Location

G10112259

Courtesy of MERCEDES-BENZ USA
