Mobile phone system, block diagram - GF82.70-P-0007-02LE

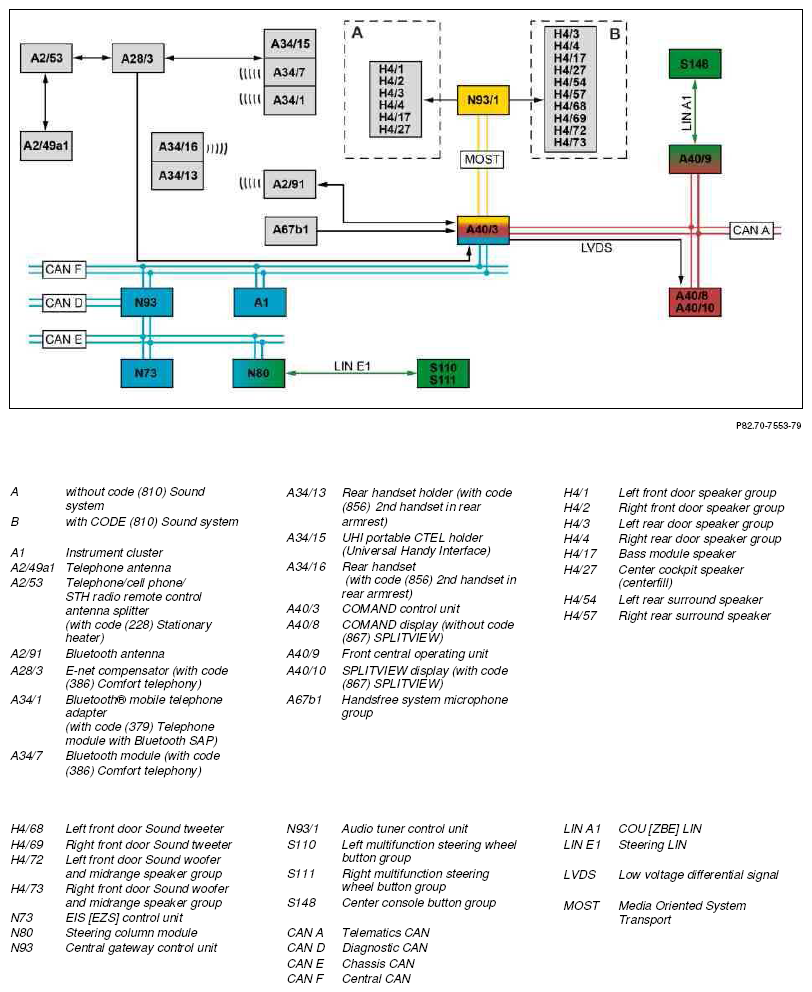

Fig 1: Mobile Phone System Block Diagram - Vehicles To 31.5.09 With Code (386)

Courtesy of MERCEDES-BENZ USA

Vehicles up to 31.5.09 with code (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system

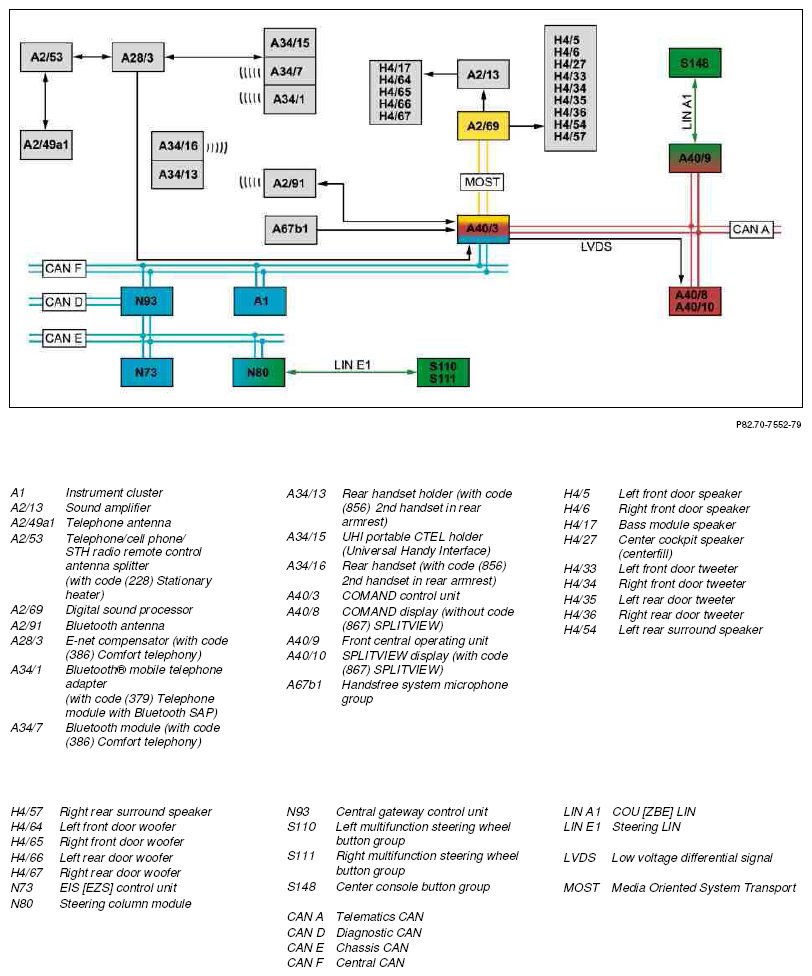

Fig 2: Mobile Phone System Block Diagram - Vehicles To 31.5.09 With Code (389)

Courtesy of MERCEDES-BENZ USA

Vehicles up to 31.5.09 with code (389) Mobile phone preinstallation with universal interface, USA/Canada

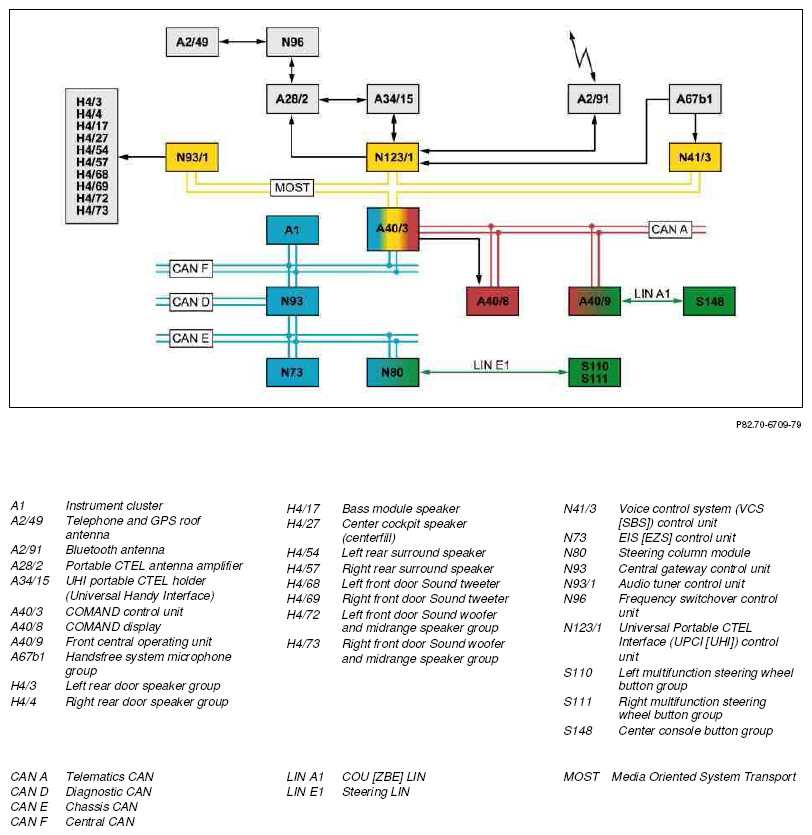

Fig 3: Mobile Phone System Block Diagram - Vehicles Of 1.6.09, Except Code (811)

Courtesy of MERCEDES-BENZ USA

Vehicles as of 1.6.09, except code (811) Advanced Sound System

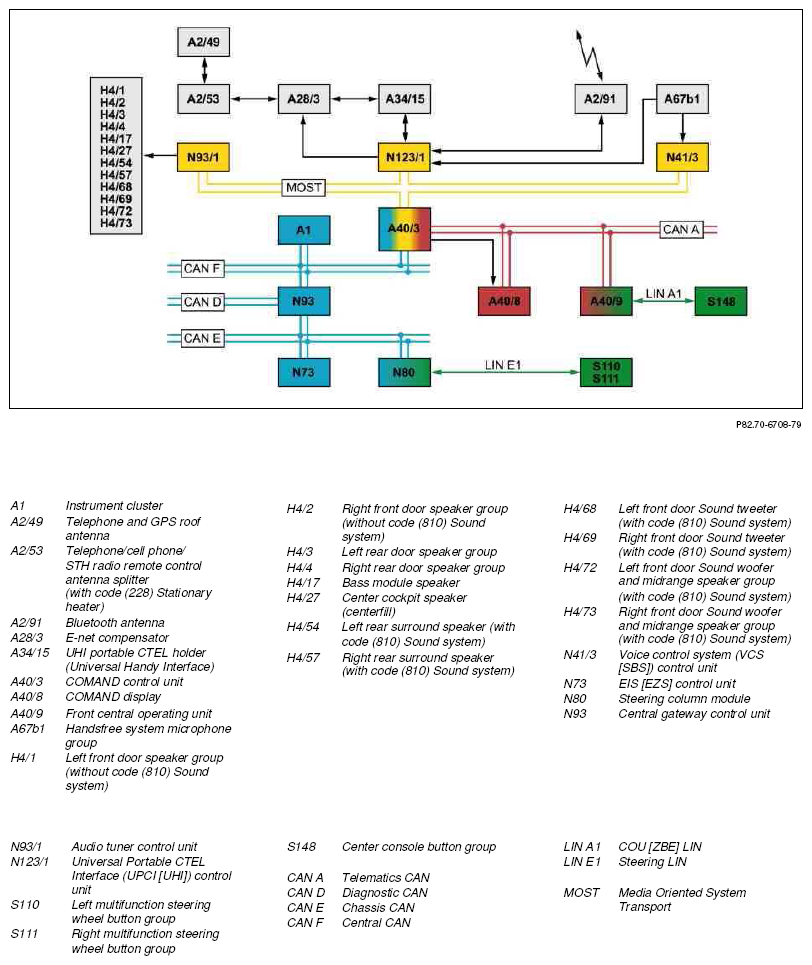

Fig 4: Mobile Phone System Block Diagram - Vehicles Of 1.9.10 With Code (811)

Courtesy of MERCEDES-BENZ USA

Vehicles as of 1.9.10, with code (811) Advanced Sound System
