Wiper system (WSA), location of components - GF82.30-P-0003-01LE

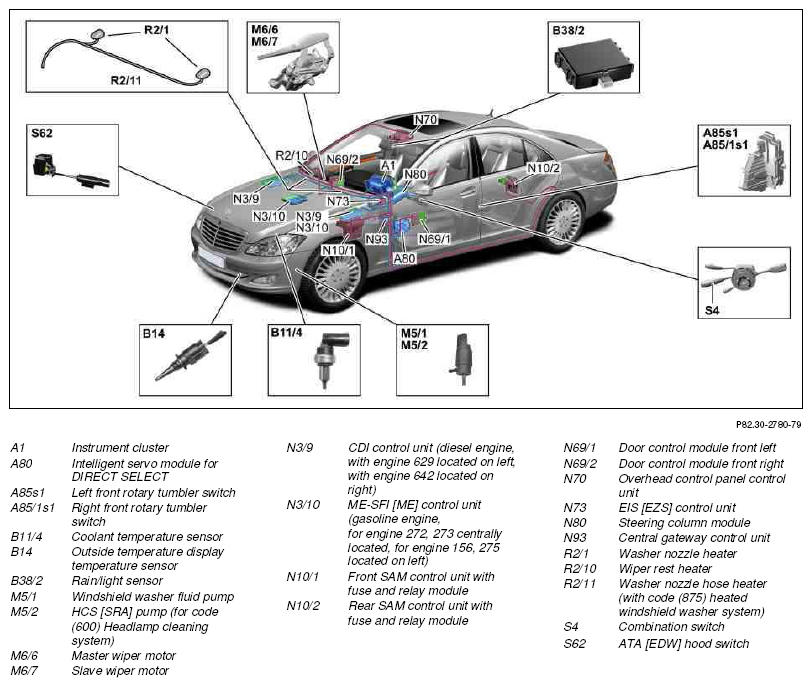

Fig 1: Wiper System (WSA) Components Location

G10112171

Courtesy of MERCEDES-BENZ USA
