Taxi/rental vehicle block diagram - GF82.25-P-0019-02LE

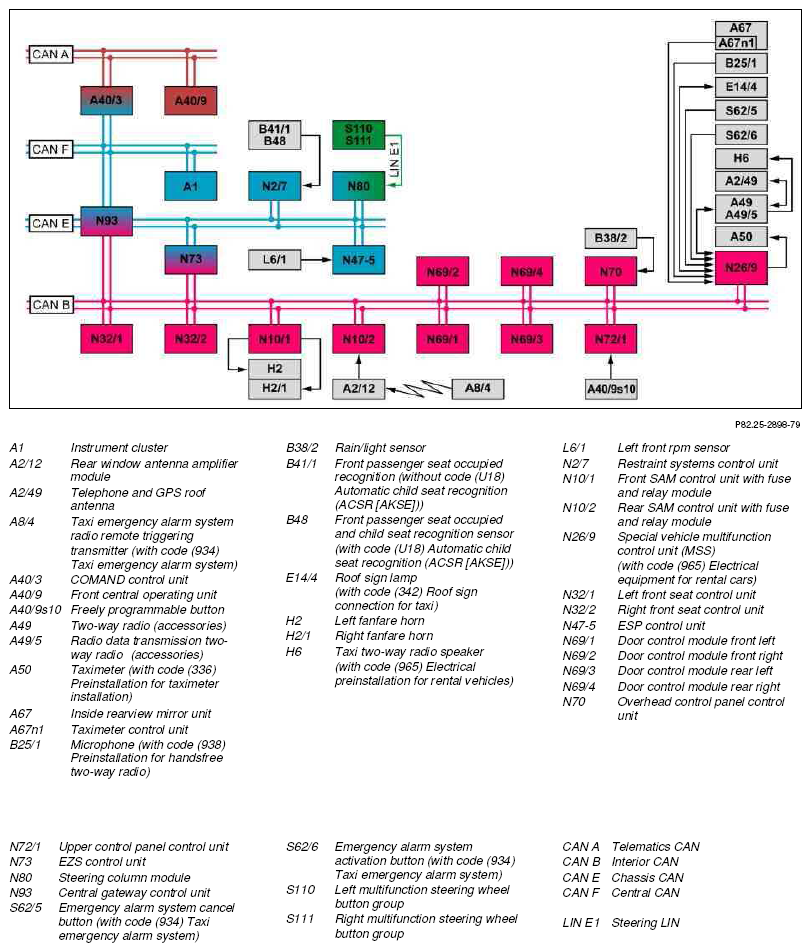

Fig 1: Taxi/Rental Vehicle Block Diagram

G10128818

Courtesy of MERCEDES-BENZ USA
