Panic alarm system (GAS), location of components - GF82.25-P-0005-01SXS

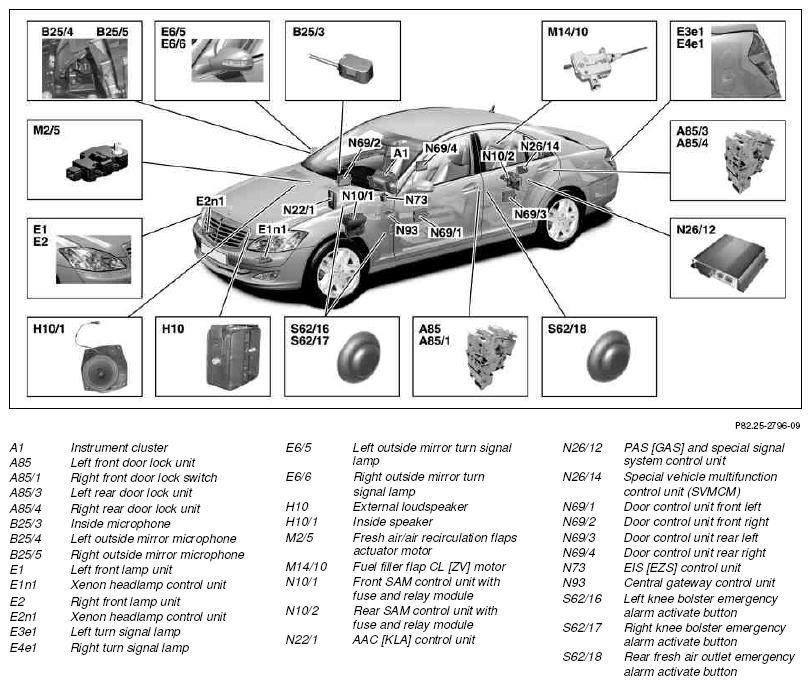

Fig 1: Overview Of Panic Alarm System (GAS) Components

G10128813

Courtesy of MERCEDES-BENZ USA
