Block diagram of exterior lights - GF82.10-P-0003-03LE

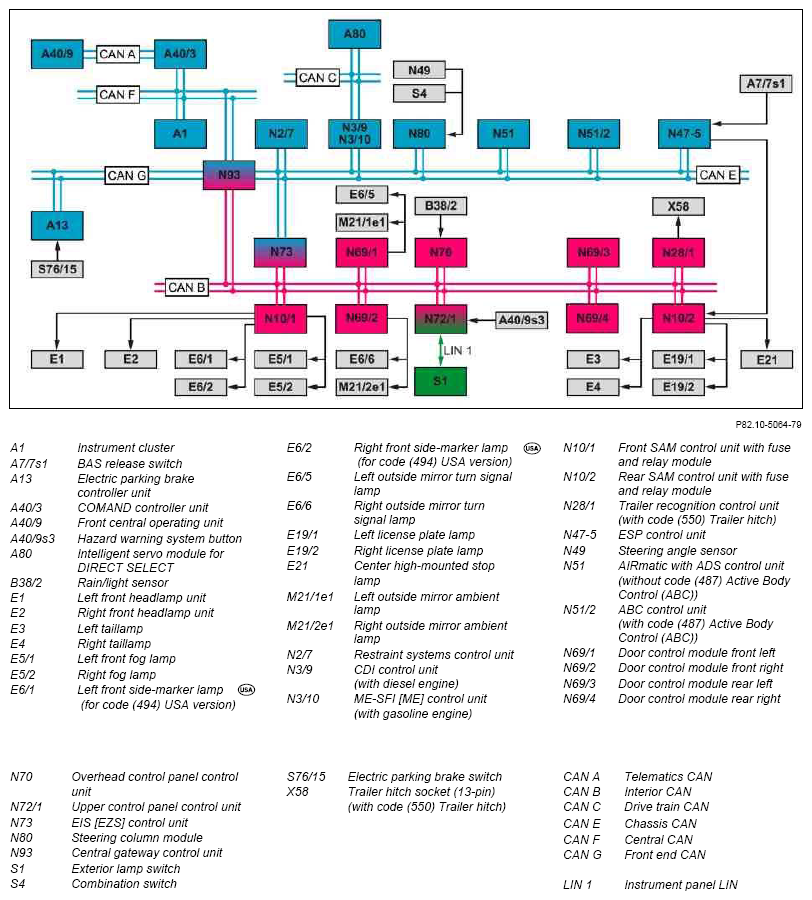

Fig 1: Exterior Lights Block Diagram

G10112134

Courtesy of MERCEDES-BENZ USA
