Remove/install belt drive components - AR13.20-P-0001SX

ENGINES 272 in MODEL 221 Vehicles with single-belt pulley

ENGINES 273 in MODEL 216, 221

Shown on engine 273.922

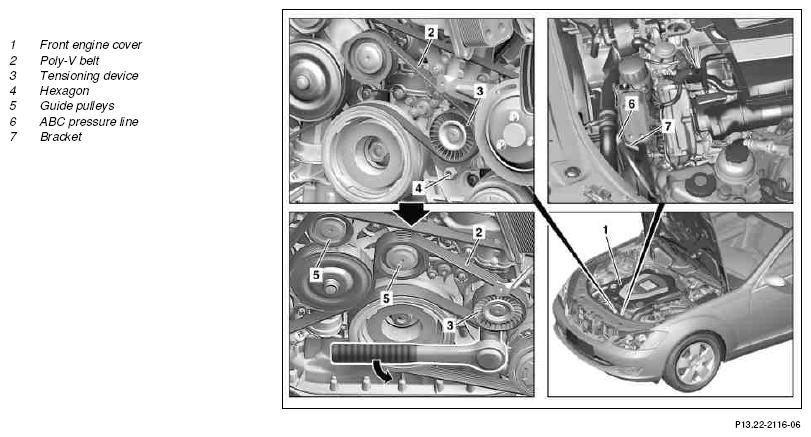

Fig 1: Identifying Belt Drive Remove/Install Components - Shown On Engine 273.922 (1 Of 2)
G10126568Courtesy of MERCEDES-BENZ USA

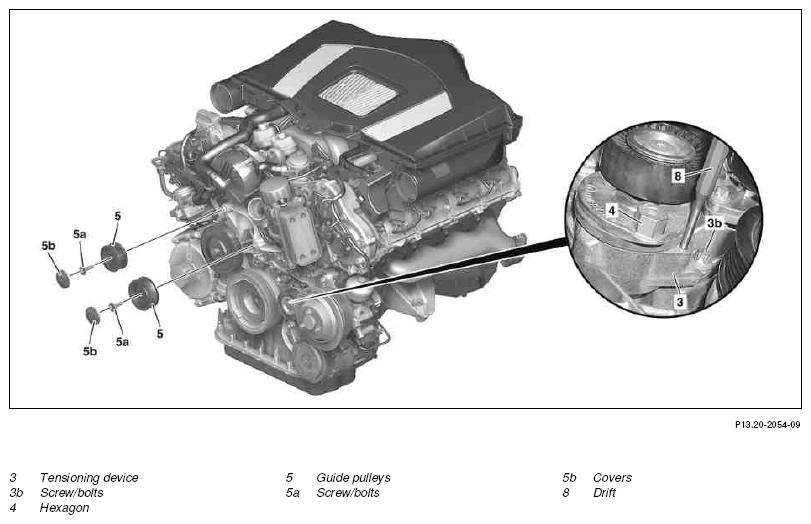

Fig 2: Identifying Belt Drive Remove/Install Components - Shown On Engine 273.922 (2 Of 2)
G10126569Courtesy of MERCEDES-BENZ USA

Shown on engine 273.922

MODIFICATION NOTES

27.2.12 Reference to the altered version of the poly-V belt, added   BT13.20-P-1000-01SXH
REMOVING Removing
DANGER Risk of injury  caused by moving parts that can pinch, crush  or, in extreme cases, even sever  extremities No parts of the body or limbs should be within the operating range of the mechanism when moving components. AS00.00-Z-0009-01A
REFER TO COMPONENT MODIFICATIONS Version of the poly-V belt altered Model 221.095/195 BT13.20-P-1000-01SXH
1 Pull out front engine cover (1) from mounts
2 Detach pressure line (6) from bracket (7) Vehicles with Active Body Control (Code 487) only.
3 Loosen poly-V belt (2) and remove IMPORTANT To do this swivel clamping device (3) on hexagon (4) counterclockwise (arrow), remove poly-V-belt (2) and slacken clamping device (3).
INSPECT Checking
4 Inspect belt pulley sections, tensioning device (3) and guide pulleys (5) IMPORTANT Check for damage, wear and dirt; replace if necessary.
5 Check poly-V belt (2) and replace if required
REFER TO MAINTENANCE Check visible area of poly-V belt for wear   AP13.22-P-1352SX
REMOVINGINSTALLING Remove/install clamping device (3)  IMPORTANT Only perform Operation steps 6 through 9 for remove/install of clamping device (3).
6 Lock tensioning device (3) IMPORTANT Swivel clamping device (3) at hexagon (4) in an anti-clockwise direction and lock in place using drift (8).
7 Remove screw/bolts (3b) and remove clamping device (3) TORQUE SPECIFICATION *BA13.25-P-1001-01P
8 Slacken tensioning device (3) When replacing the clamping device (3)
IMPORTANT Clamp tensioning device (3) in a vise, swivel at hexagon (4) in an anti-clockwise direction, pull out drift (8) and slacken tensioning device (3).
INSTALLATION IMPORTANT The tensioning device (3) can only be installed when locked.

9 Install in the reverse order
REMOVINGINSTALLING Remove/install guide pulleys (5)  IMPORTANT Only perform Operation steps 10 through 12 for remove/install of guide pulleys (5).
10 Pry off covers (5b)
11 Remove screw/bolts (5a) and remove guide pulleys (5) TORQUE SPECIFICATION *BA20.10-P-1004-01U
12 Install in the reverse order
INSTALLING Install
13 Fit on and tension (2) as per routing diagram IMPORTANT To do this swivel clamping device (3) on hexagon (4) counterclockwise (arrow), fit on poly-V-belt (2) and slacken clamping device (3).
NOTES Do not use belt wax or any similar products. These lead to slipping of the poly-V belt (2).
AR13.22-P-3902-02SX
14 Install pressure line (6) to bracket (7) Vehicles with Active Body Control (Code 487) only.
15 Install front engine cover (1)
BELT TENSIONING DEVICE

Number Designation Engine 272 Engine 273
BA13.25-P-1001-01P Screw/bolt, poly-V belt tensioning device to timing case cover Nm 35 35
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 272 Engine 273
BA20.10-P-1004-01U Screw/bolt, guide pulley between water pump and belt tensioner Initial installation Nm 35 35
Follow-up operations Nm 25 25
