| 1 |
Blind spot assist, status |
13E |
| 10 |
Switch on/off, signal |
8H |
| 10 |
Switch on/off, signal |
14E |
| 11 |
Far range radar sensor, signal |
10E |
| 12 |
Close range radar sensors, signal |
10G |
| 13 |
Circuit 15, status |
11H |
| 14 |
Combination switch, status |
10B |
| 14 |
Combination switch, status |
12E |
| 15 |
Instrument cluster, message |
17D |
| 16 |
Steering angle sensor, signal |
13B |
| 16 |
Steering angle sensor, signal |
12E |
| 17 |
Blind Spot Assist readiness and warning indicator, request |
18F |
| 17 |
Blind Spot Assist readiness and warning indicator, request |
25F |
| 18 |
Blind Spot Assist readiness and warning indicator, actuation |
31H |
| 19 |
Active brake intervention, request |
4F |
| 2 |
Circuit 61, status |
13G |
| 20 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
8F |
| 20 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
3E |
| 3 |
ESP®, status |
10F |
| 4 |
Standstill coordinator, status |
10F |
| 5 |
Wheel speed, signal |
3H |
| 5 |
Wheel speed, signal |
9F |
| 6 |
Wheel rotation direction, signal |
9F |
| 6 |
Wheel rotation direction, signal |
3H |
| 7 |
Engine speed, signal |
14G |
| 8 |
GPS, signal |
25C |
| 9 |
Navigation data, signal |
21E |
| 9 |
Navigation data, signal |
13F |

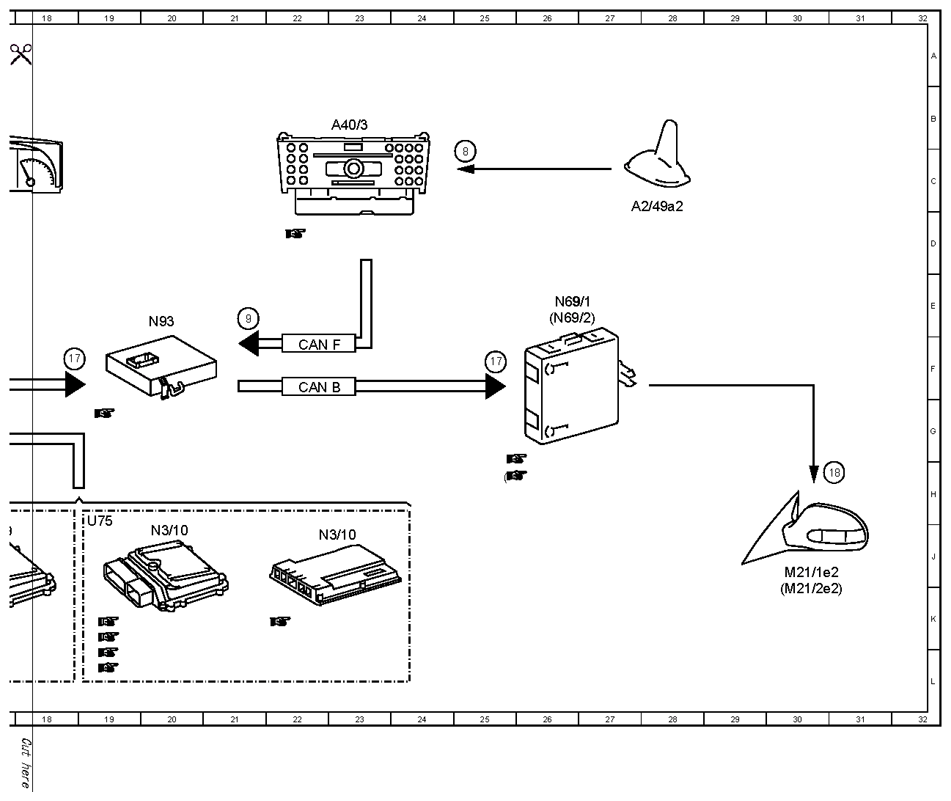

| A1 |
Instrument cluster |
17B |
| A2/49a2 |
GPS antenna |
28C |
| A40/3 |
COMAND control unit |
23B |
| A86/1b2 |
Left inner radar sensor, front bumper |
8H |
| A86/1b3 |
Right inner radar sensor, front bumper |
8H |
| A86/2b1 |
Right outer radar sensor, rear bumper |
8J |
| A86/2b4 |
Left outer radar sensor, rear bumper |
8J |
| A89 |
DTR control unit |
7A |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
3B |
| CAN B |
Interior CAN |
22F |
| CAN E |
Chassis CAN |
15F |
| CAN E |
Chassis CAN |
12D |
| CAN E |
Chassis CAN |
7F |
| CAN E |
Chassis CAN |
15E |
| CAN E |
Chassis CAN |
15G |
| CAN E |
Chassis CAN |
12H |
| CAN F |
Central CAN |
22F |
| CAN H |
Vehicle dynamics CAN |
3D |
| CAN H |
Vehicle dynamics CAN |
7D |
| CAN S |
Sensor CAN |
9G |
| L6/1 |
Left front rpm sensor |
2K |
| L6/2 |
Right front rpm sensor |
2K |
| L6/3 |
Left rear rpm sensor |
2K |
| L6/4 |
right rear rpm sensor |
2K |
| M21/1e2 |
Left Blind Spot Assist readiness and warning indicator |
30J |
| M21/2e2 |
Right Blind Spot Assist readiness and warning indicator |
30K |
| N3/10 |
ME-SFI [ME] control unit |
23J |
| N3/10 |
ME-SFI [ME] control unit |
20J |
| N3/9 |
CDI control unit |
17J |

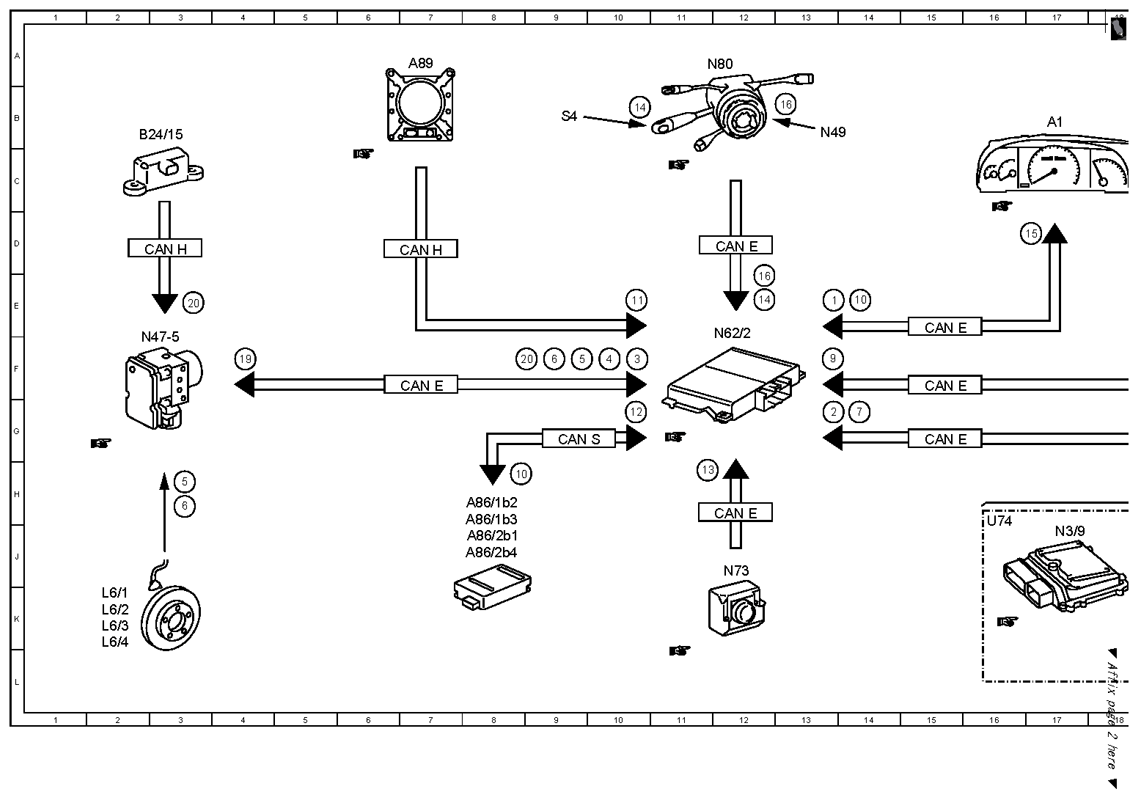

| N47-5 |
ESP control unit |
3F |
| N49 |
Steering angle sensor |
13B |
| N62/2 |
Video and radar sensor system control unit |
12F |
| N69/1 |
Left front door control unit |
26E |
| N69/2 |
Right front door control unit |
26E |
| N73 |
EIS [EZS] control unit |
12J |
| N80 |
Steering column module |
12A |
| N93 |
Central gateway control unit |
20E |
| S4 |
Combination switch |
9B |
| U74 |
Valid for diesel engines |
16J |
| U75 |
Valid for gasoline engines |
19J |
