| A40/9 |
Front central operating unit |
26L |
| A40/9s10 |
Freely programmable button |
28L |
| A40/9s3 |
Hazard warning system button |
28L |
| A40/9x1 |
Front central operating unit connector |
25H |
| A70/1 |
Analog clock |
23L |
| CAN B |
Interior CAN |
12K |
| E13/1 |
Glove compartment lamp |
6L |
| E17/15 |
Right front footwell lamp |
8L |
| E17/16 |
Left front footwell lamp |
10L |

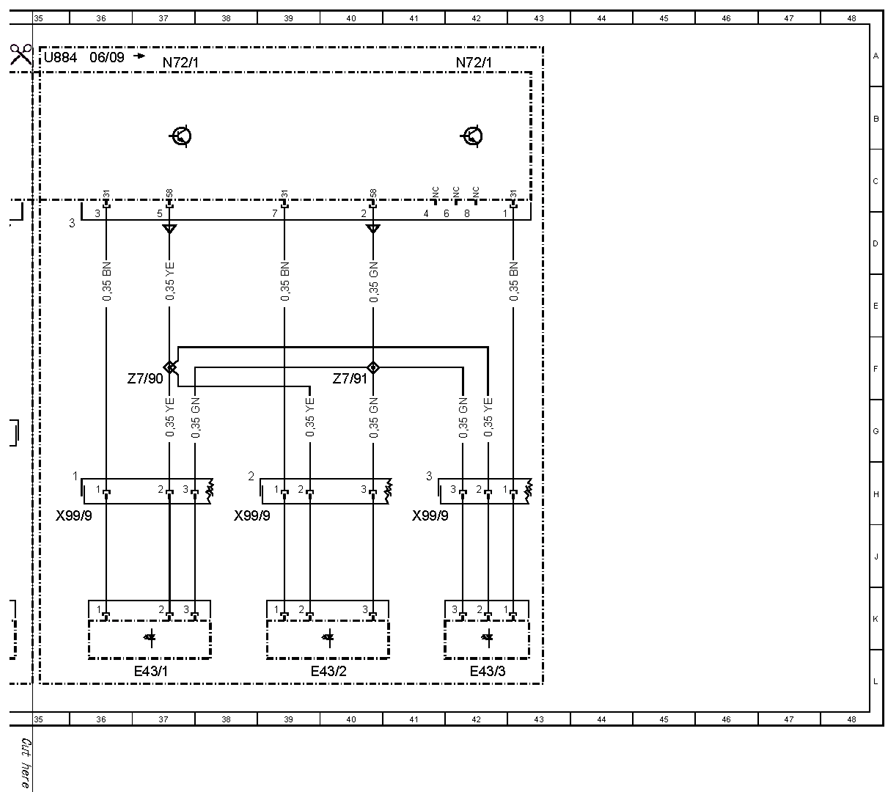

| E43/1 |
Ambiance illumination LED 1 |
31L |
| E43/1 |
Ambiance illumination LED 1 |
37L |
| E43/2 |
Ambiance illumination LED 2 |
32L |
| E43/2 |
Ambiance illumination LED 2 |
39L |
| E43/3 |
Ambiance illumination LED 3 |
34L |
| E43/3 |
Ambiance illumination LED 3 |
42L |
| N10/1 |
Front SAM control unit with fuse and relay module |
2L |

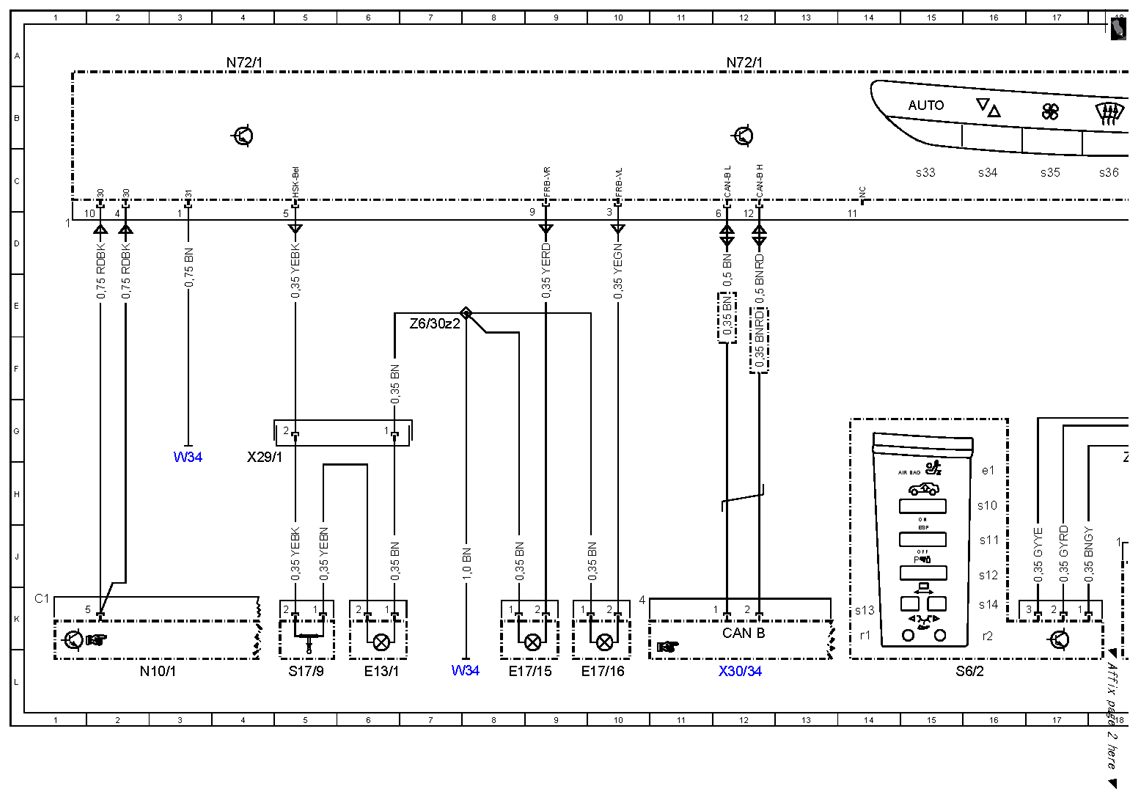

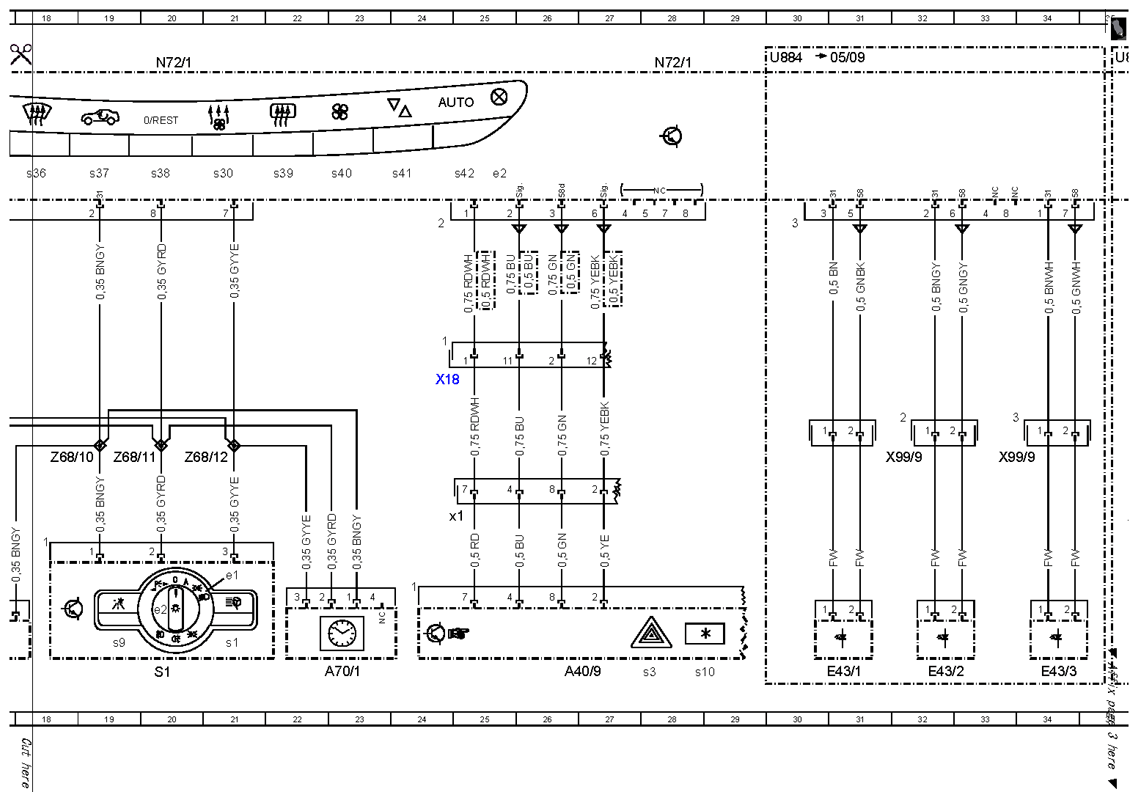

| N72/1 |
Upper control panel control unit |
42A |
| N72/1 |
Upper control panel control unit |
4A |
| N72/1 |
Upper control panel control unit |
12A |
| N72/1 |
Upper control panel control unit |
20A |
| N72/1 |
Upper control panel control unit |
28A |
| N72/1 |
Upper control panel control unit |
37A |
| N72/1e2 |
ATA [EDW] function indicator |
25C |
| N72/1s30 |
STH/ZUH/residual heat button |
21C |
| N72/1s33 |
Left automatic air conditioning button |
15C |
| N72/1s34 |
Left temperature selection button |
16C |
| N72/1s35 |
Left blower button |
17C |
| N72/1s36 |
Defrost/heated windshield button |
18C |
| N72/1s37 |
Air recirculation button |
19C |
| N72/1s38 |
OFF/residual heat button |
20C |
| N72/1s39 |
Heated rear window button |
22C |
| N72/1s40 |
Right blower button |
23C |
| N72/1s41 |
Right temperature selection button |
24C |
| N72/1s42 |
Right automatic air conditioning button |
25C |
| S1 |
Rotary light switch |
20L |
| S17/9 |
Glove compartment lamp switch |
5L |
| S1e1 |
Front fog lamps indicator lamp |
21J |
| S1e2 |
Rear fog lamp indicator lamp |
20K |
| S1s1 |
HCS [SRA] switch |
21K |
| S1s9 |
Night vision assist button |
19K |
| S6/2 |
Cockpit switch group |
15L |
| S6/2e1 |
Automatic child seat recognition airbag OFF indicator lamp |
16H |
| S6/2r1 |
Switch and controls illumination/Night View Assist display brightness control |
14K |
| S6/2r2 |
COMAND display brightness control |
16K |
| S6/2s10 |
Level adjustment switch |
16H |
| S6/2s11 |
ESP OFF switch |
16J |
| S6/2s12 |
PTS OFF switch |
16J |
| S6/2s13 |
COMAND display swivel left switch |
14K |
| S6/2s14 |
COMAND display swivel right switch |
16K |
| U884 |
Valid for ambiance illumination |
35A |
| U884 |
Valid for ambiance illumination |
30A |
| W34 |
Ground (left footwell) |
7L |
| W34 |
Ground (left footwell) |
3H |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
24F |
| X29/1 |
Glove compartment lamp connector |
4H |
| X30/34 |
Interior CAN/cockpit voltage distributor connector |
12L |
| X99/9 |
Separation point 9 |
32H |
| X99/9 |
Separation point 9 |
34H |
| X99/9 |
Separation point 9 |
36H |
| X99/9 |
Separation point 9 |
38H |
| X99/9 |
Separation point 9 |
41H |
| Z6/30z2 |
Circuit 31 connector sleeve |
7E |
| Z68/10 |
OBD LIN bus ground connector sleeve |
18G |
| Z68/11 |
OBD LIN bus positive connector sleeve |
19G |
| Z68/12 |
OBD LIN bus data connector sleeve |
21G |
| Z7/90 |
Amber ambiance illumination connector sleeve |
37F |
| Z7/91 |
IceBlue ambiance illumination connector sleeve |
40F |
