| A0 |
Color code key |
40L |
| CAN L |
Hybrid CAN |
3K |
| CAN L |
Hybrid CAN |
7K |
| CAN L |
Hybrid CAN |
15K |
| CAN L |
Hybrid CAN |
19K |
| CAN L |
Hybrid CAN |
11K |
| CAN L |
Hybrid CAN |
31K |
| CAN L |
Hybrid CAN |
27K |
| CAN L |
Hybrid CAN |
35K |
| Code 348 |
Emergency call/assistance system |
9E |
| Code 350 |
E-call emergency call system Europe Generation 2 |
13E |
| Code B54 |
Live Traffic Information |
13E |
| H4/16 |
Sound generator |
27L |
| N112/2 |
Telematics services communication module |
15L |
| N123/4 |
Emergency call system control unit |
11L |
| N127 |
Drivetrain control unit |
31L |
| N129/1 |

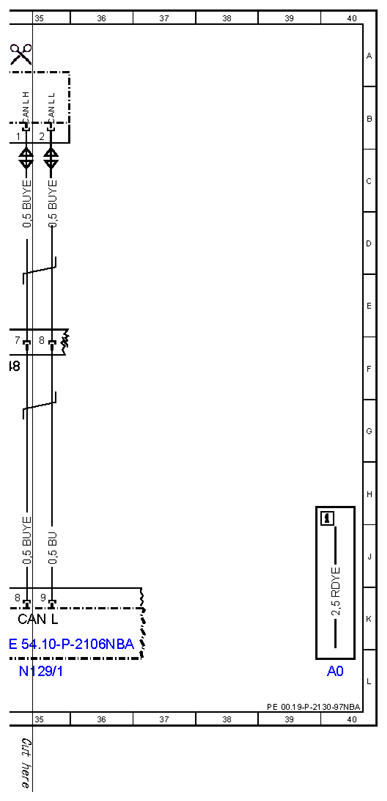

Power electronics control unit |
35L |
| N82/2 |
Battery management system control unit |
3L |
| N83/1 |
DC/DC converter control unit |
7L |
| N83/5 |
Charger |
19L |
| U12 |
Valid for left-hand drive vehicles |
24C |
| U13 |
Valid for right-hand drive vehicles |
24D |
| W15/1 |
Right footwell ground point |
25E |
| W15/5 |
Left front footwell ground point |
25E |
| W7 |
Right rear center section ground point |
4E |
| X248 |
Underfloor electrical connector (rectifier) |
34F |
| X30/54 |

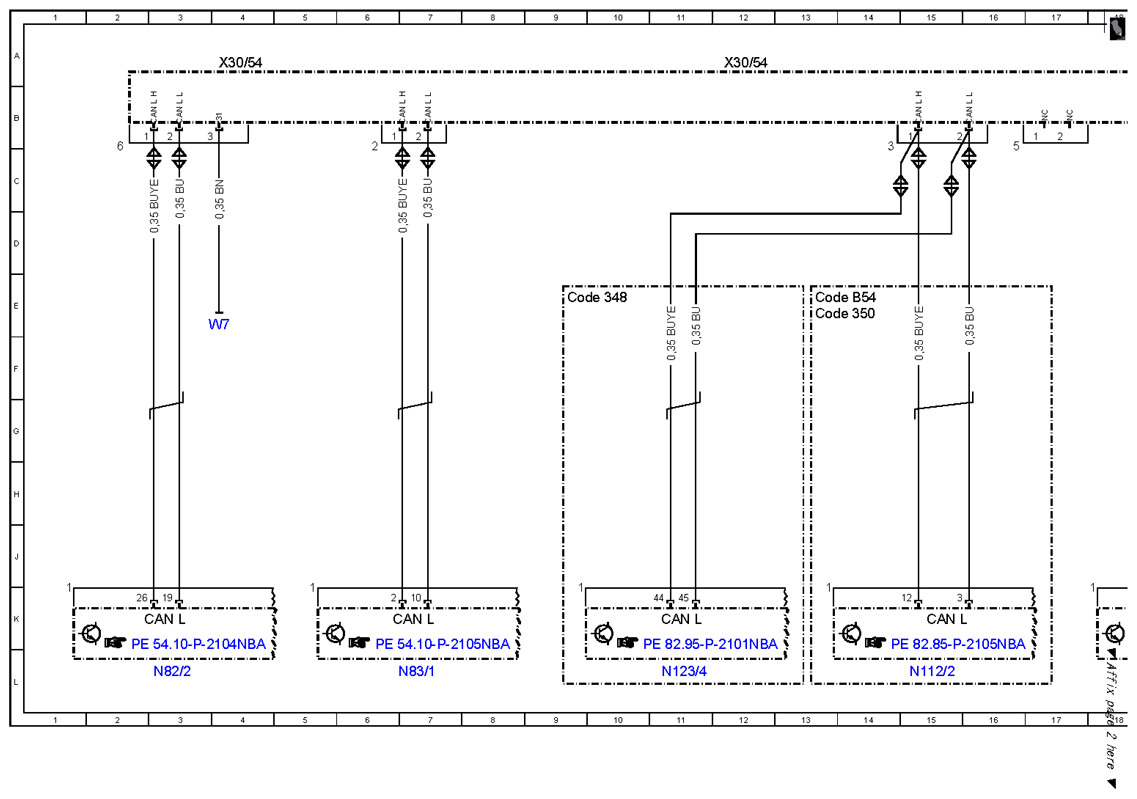

Rear hybrid CAN (CAN L) potential distributor electrical connector |
4A |
| X30/54 |
Rear hybrid CAN (CAN L) potential distributor electrical connector |
12A |
| X30/54 |
Rear hybrid CAN (CAN L) potential distributor electrical connector |
20A |
| X30/55 |

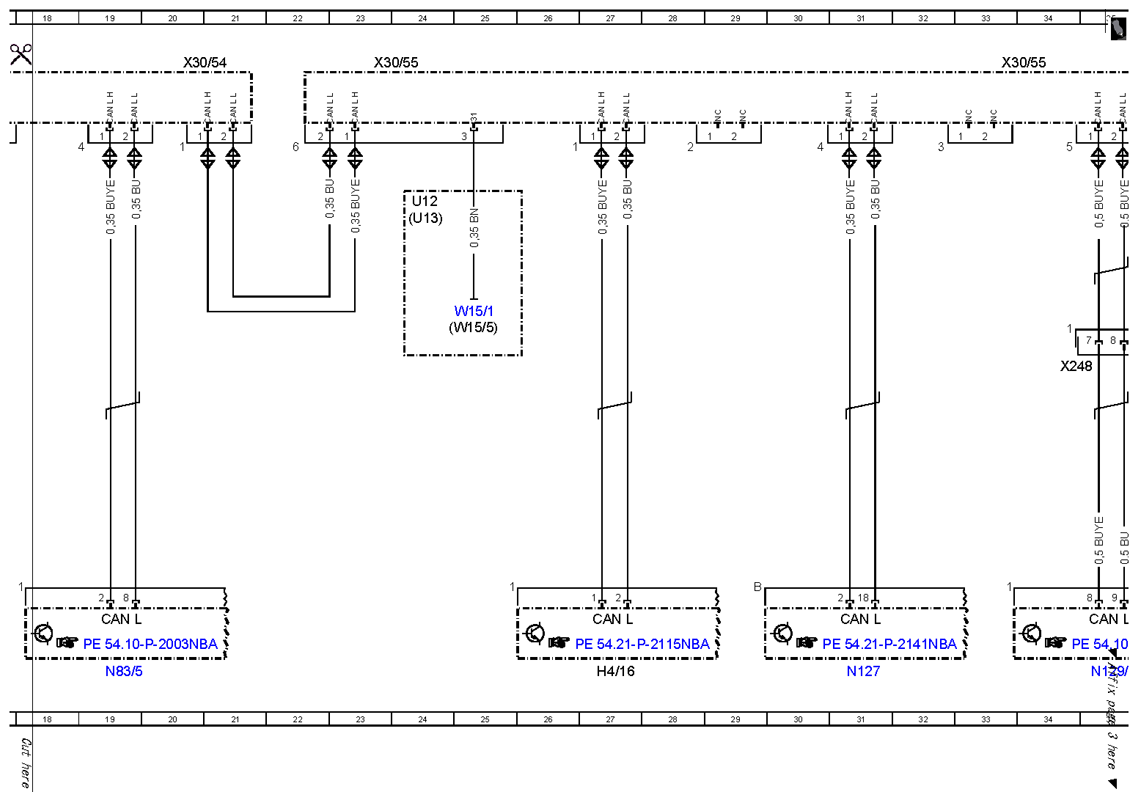

Front hybrid CAN (CAN L) potential distributor electrical connector |
33A |
| X30/55 |
Front hybrid CAN (CAN L) potential distributor electrical connector |
23A |
