Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

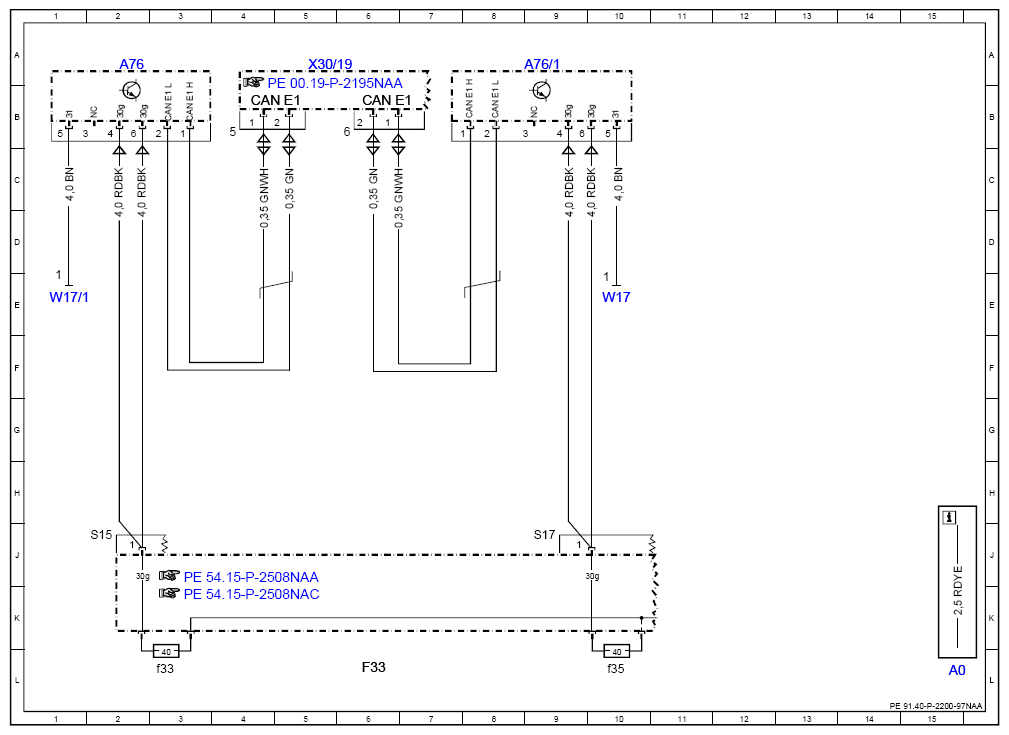

MODEL 166 up to model year 2016 Control unit A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A76 | Left front reversible emergency tensioning retractor | 2A |
| A76/1 | Right front reversible emergency tensioning retractor | 9A |
| CAN E1 | Chassis CAN 1 | 4B |
| CAN E1 | Chassis CAN 1 | 6B |
| F33 | Battery compartment prefuse box | 6L |
| F33f33 | Fuse 33 | 3L |
| F33f35 | Fuse 35 | 10L |
| W17 | Right rear seat ground point | 10E |
| W17/1 | Left rear seat ground point | 1E |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 5A |
