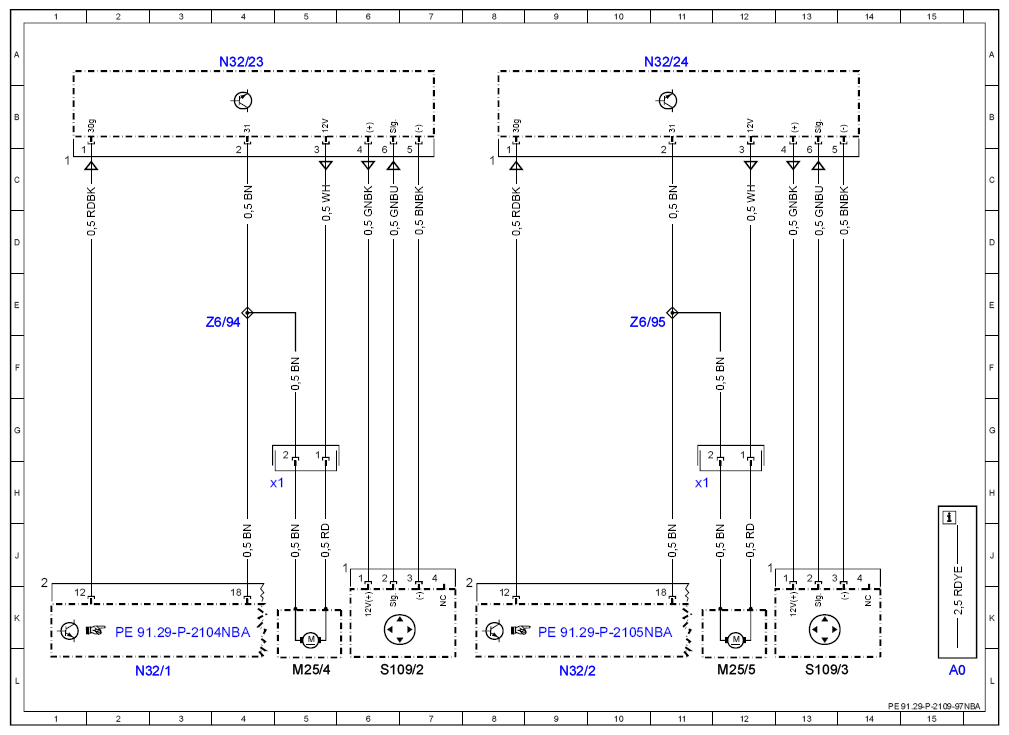

Lumbar Support Wiring Diagram - PE91.29-P-2109-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 with CODE 275 (Electrically adjustable driver seat, steering column and outside mirrors with memory) with CODE 560 (Electrically adjustable front seats) with CODE P64 (Memory package) Control unit N32/23, N32/24
MODEL 292 with CODE 275 (Driver's seat, electrically adjustable with memory function) with CODE 560 (Electrically adjustable front seats) with CODE P64 (Memory package) Control unit N32/23, N32/24
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| M25/4 | Driver seat lumbar support pneumatic pump | 5L |
| M25/4x1 | Driver seat lumbar support pneumatic pump electrical connector | 5H |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 12L |
| M25/5x1 | Front passenger seat lumbar support pneumatic pump electrical connector | 11H |
| N32/1 | Driver seat control unit | 2L |
| N32/2 | Front passenger seat control unit | 9L |
| N32/23 | Driver seat lumbar support adjustment control unit | 4A |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 11A |
| S109/2 | Driver seat lumbar support adjustment switch | 6L |
| S109/3 | Front passenger seat lumbar support adjustment switch | 13L |
| Z6/94 | Driver seat circuit 31 connector sleeve | 4E |
| Z6/95 | Front passenger seat circuit 31 connector sleeve | 10E |
