Wiring Diagram For The Video And Radar Sensor System Control Unit - PE30.30-P-2103-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

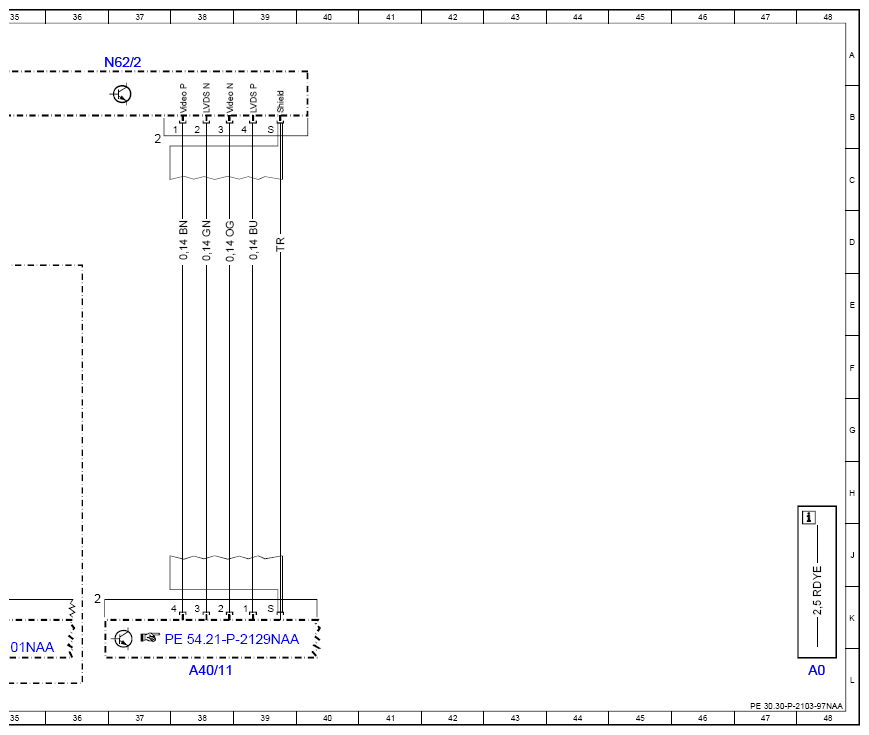

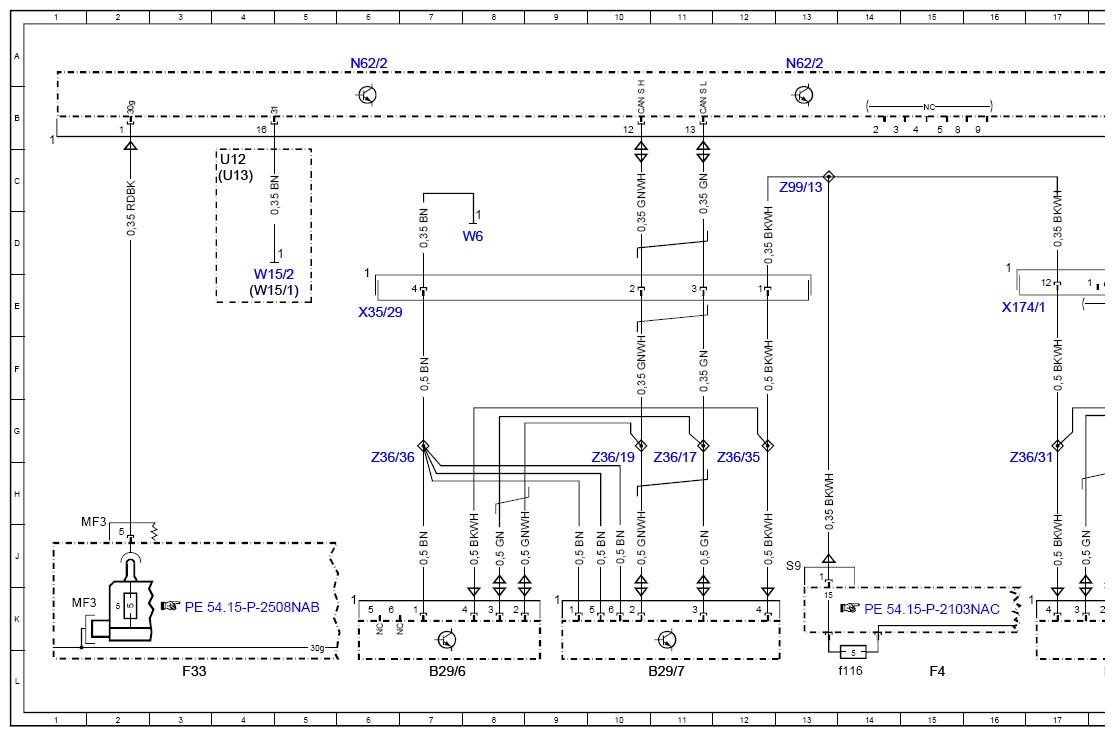

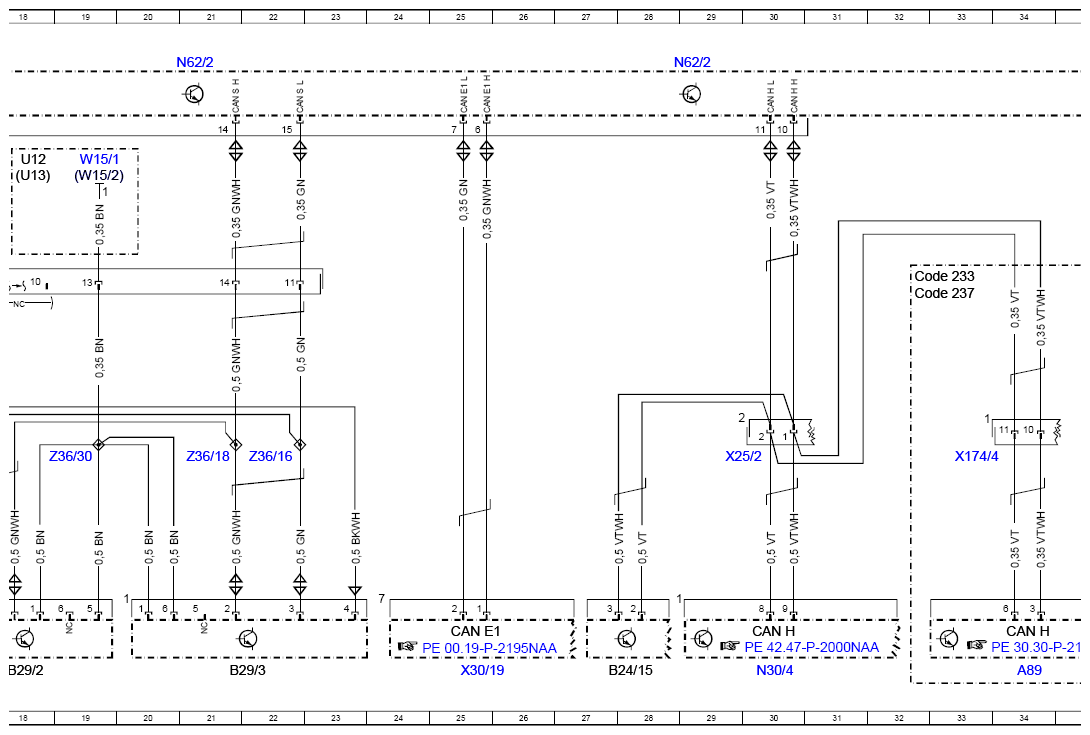

ENGINE 276.8/9, 278.9, 642.8, 651.9 in MODEL 166 up to model year 2016 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) Control unit N62/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A40/11 | Multifunction camera | 38L |
| A89 | DISTRONIC electric controller unit | 34L |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 28L |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 18L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 21L |
| B29/6 | Left rear bumper radar sensor | 7L |
| B29/7 | Right rear bumper radar sensor | 11L |
| CAN E1 | Chassis CAN 1 | 25K |
| CAN H | Vehicle dynamics CAN | 34K |
| CAN H | Vehicle dynamics CAN | 30K |
| Code 233 | DISTRONIC PLUS | 32E |
| Code 237 | Active Blind Spot Assist | 32E |
| F33 | Battery compartment prefuse box | 3L |
| F33MF3 | Multiple fuse 3 | 1K |
| F4 | Rear fuse box | 15L |
| F4f116 | Fuse 116 | 14L |
| N30/4 | Electronic Stability Program control unit | 30L |
| N62/2 | Video and radar sensor system control unit | 6A |
| N62/2 | Video and radar sensor system control unit | 13A |
| N62/2 | Video and radar sensor system control unit | 21A |
| N62/2 | Video and radar sensor system control unit | 29A |
| N62/2 | Video and radar sensor system control unit | 37A |
| U12 | Valid for left-hand drive vehicles | 4C |
| U12 | Valid for left-hand drive vehicles | 18C |
| U13 | Valid for right-hand drive vehicles | 4C |
| U13 | Valid for right-hand drive vehicles | 18C |
| W15/1 | Right footwell ground point | 4E |
| W15/1 | Right footwell ground point | 19C |
| W15/2 | Left footwell ground point | 4E |
| W15/2 | Left footwell ground point | 19C |
| W6 | Inner left D-pillar ground point | 8D |
| X174/1 | Vehicle interior/front bumper electrical connector | 16E |
| X174/4 | Engine compartment/vehicle front electrical connector | 33H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 30G |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 25L |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 6E |
| Z36/16 | Front sensor CAN connector sleeve | 22G |
| Z36/17 | Rear sensor CAN (low) connector sleeve | 11G |
| Z36/18 | Front sensor CAN (high) connector sleeve | 21G |
| Z36/19 | Rear sensor CAN (high) connector sleeve | 10G |
| Z36/30 | Short range radar front sensor ground connector sleeve | 19G |
| Z36/31 | Short range radar front sensor voltage connector sleeve | 17G |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 12G |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 6G |
| Z99/13 | Radar sensors control unit circuit 87 connector sleeve | 13C |
