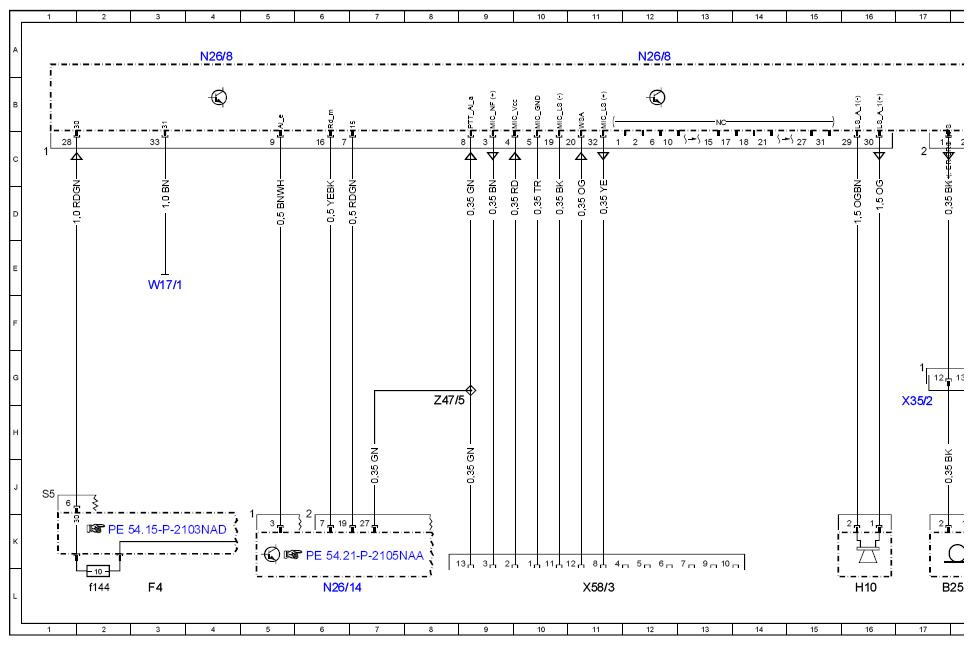

Wiring Diagram, Panic Alarm System (PAS (GAS)) Control Unit - PE82.25-P-2101-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE Z04 (B4 armoring for special protection version) with CODE Z05 (B5 armoring on special protection version) with CODE Z22 (Panic alarm system) Control unit N26/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| B25/4 | Left outside mirror PAS [GAS] microphone | 19L |
| B25/5 | Right outside mirror PAS [GAS] microphone | 17L |
| F4 | Rear fuse box | 3L |
| F4f144 | Fuse 144 | 2L |
| H10 | Outside PAS [GAS] speaker | 16L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 6L |
| N26/8 | PAS (GAS) control unit | 12A |
| N26/8 | PAS (GAS) control unit | 4A |
| N26/8 | PAS (GAS) control unit | 19A |
| W17/1 | Left rear seat ground point | 3E |
| X35/1 | Left front door electrical connector | 19H |
| X35/2 | Right front door electrical connector | 17H |
| X58/3 | Microphone electrical connector | 11L |
| Z47/5 | Alarm off connector sleeve | 8G |
