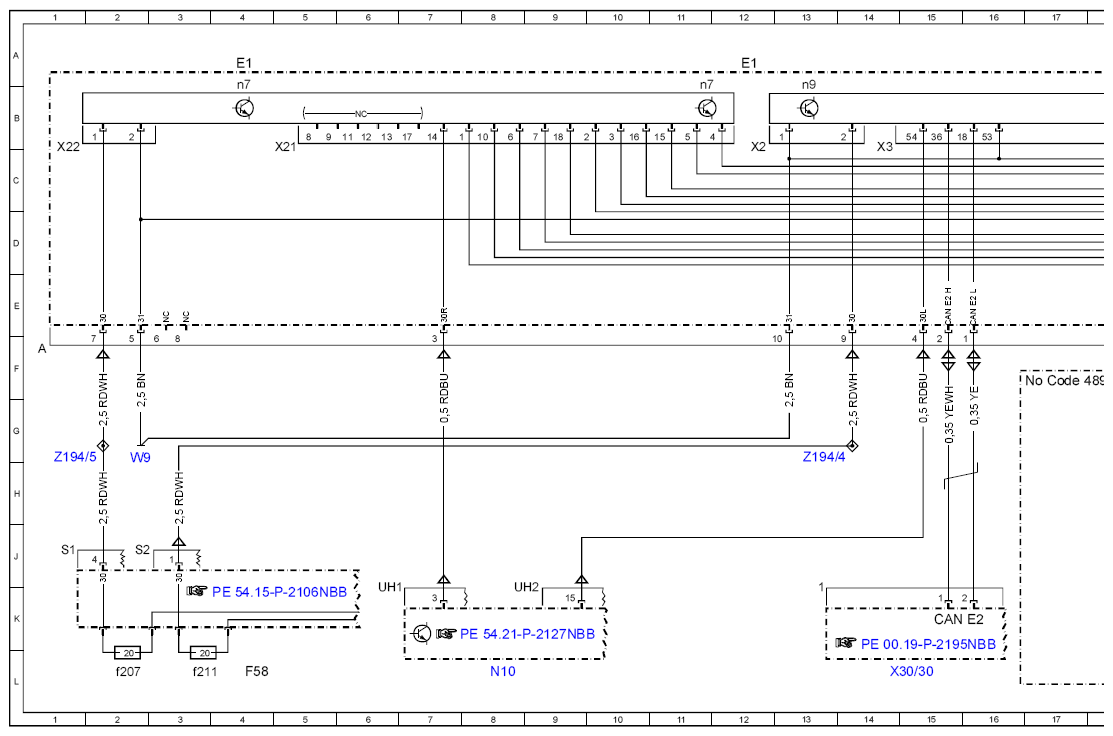

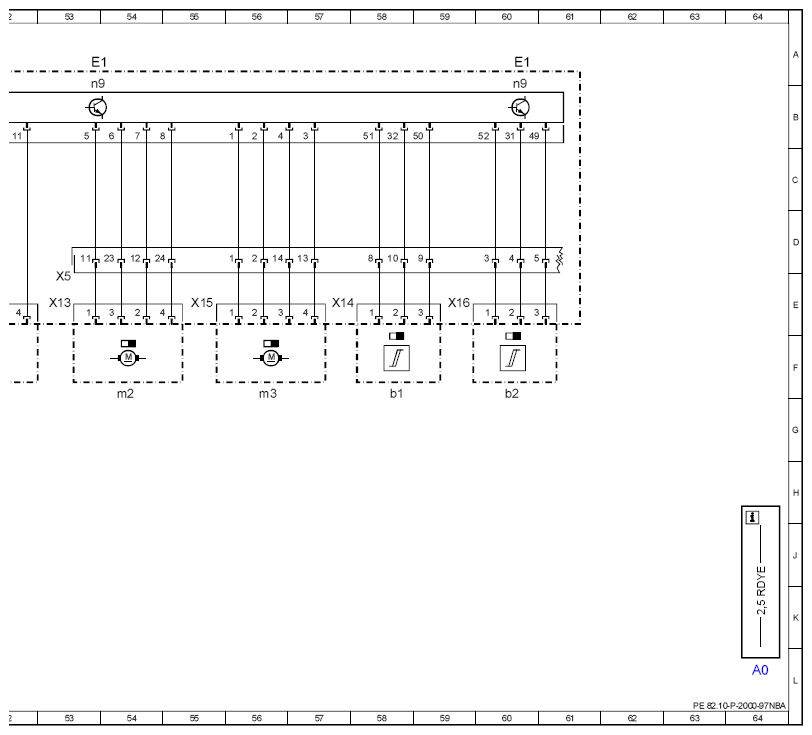

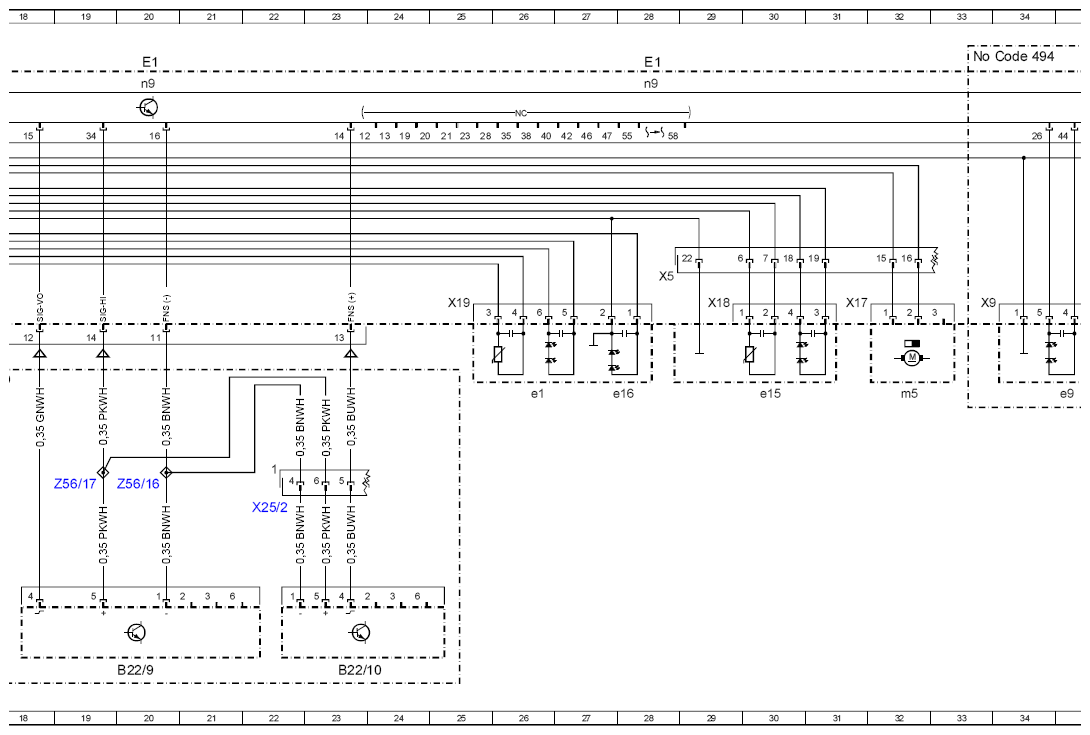

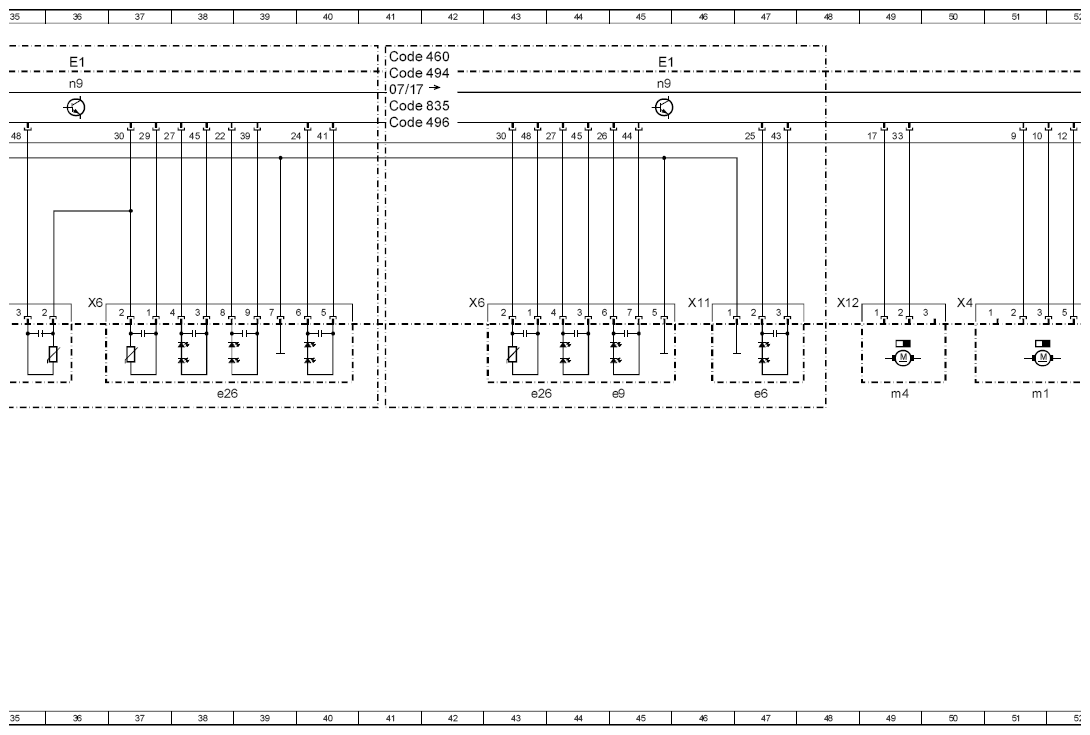

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 with CODE 640 (High-performance LED) with CODE 641 (Dynamic LED headlamps, left-hand traffic) with CODE 642 (Dynamic LED headlamps, right-hand traffic) Headlamp unit E1
MODEL 292 with CODE 640 (High-performance LED) with CODE 641 (Dynamic LED headlamps, left-hand traffic) with CODE 642 (Dynamic LED headlamps, right-hand traffic) Headlamp unit E1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| B22/10 | Right rear level sensor | 23L |
| B22/9 | Right front level sensor | 20L |
| CAN E2 | Chassis CAN 2 | 15K |
| Code 460 | Canada version | 41A |
| Code 489 | AIRMATIC | 17F |
| Code 494 | USA version | 41A |
| Code 494 | USA version | 34A |
| Code 496 | Mexico version | 41B |
| Code 835 | Additional parts for South Korea vehicles | 41B |
| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 20A |
| E1 | Left front lamp unit | 28A |
| E1 | Left front lamp unit | 36A |
| E1 | Left front lamp unit | 45A |
| E1 | Left front lamp unit | 53A |
| E1 | Left front lamp unit | 60A |
| E1b1 | Left active curve illumination position sensor | 58F |
| E1b2 | Left light distribution position sensor | 60F |
| E1e1 | Left high beam | 26F |
| E1e15 | Left low beam (short range) | 30F |
| E1e16 | Left low beam (long range) | 28F |
| E1e26 | Left position light, daytime running light, turn signal light and ambient light | 38F |
| E1e26 | Left position light, daytime running light, turn signal light and ambient light | 43F |
| E1e6 | Left front side-marker lamp | 47F |
| E1e9 | Left cornering illumination | 35F |
| E1e9 | Left cornering illumination | 45F |
| E1m1 | Left headlamp range adjustment actuator motor | 51F |
| E1m2 | Left active curve illumination actuator motor | 54F |
| E1m3 | Left light distribution actuator motor | 56F |
| E1m4 | Left LED signaling lights actuation module fan motor | 49F |
| E1m5 | Left LED driving lights actuation module fan motor | 32F |
| E1n7 | Actuation module for left front exterior lights LED | 4B |
| E1n7 | Actuation module for left front exterior lights LED | 11B |
| E1n9 | Left headlamp control unit | 13B |
| E1n9 | Left headlamp control unit | 20B |
| E1n9 | Left headlamp control unit | 28B |
| E1n9 | Left headlamp control unit | 36B |
| E1n9 | Left headlamp control unit | 45B |
| E1n9 | Left headlamp control unit | 53B |
| E1n9 | Left headlamp control unit | 60B |
| F58 | Engine compartment fuse and relay module | 4L |
| F58f207 | Fuse 207 | 2L |
| F58f211 | Fuse 211 | 3L |
| N10 | SAM control unit | 8L |
| W9 | Left front ground point (at lamp unit) | 2H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 22H |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 15L |
| Z194/4 | Circuit 30/1 connector sleeve (front lamp unit) | 13G |
| Z194/5 | Circuit 30/2 connector sleeve (front lamp unit) | 1G |
| Z56/16 | Level sensor ground connection engine compartment solder point | 20H |
| Z56/17 | Level sensor supply engine compartment solder point | 19H |
