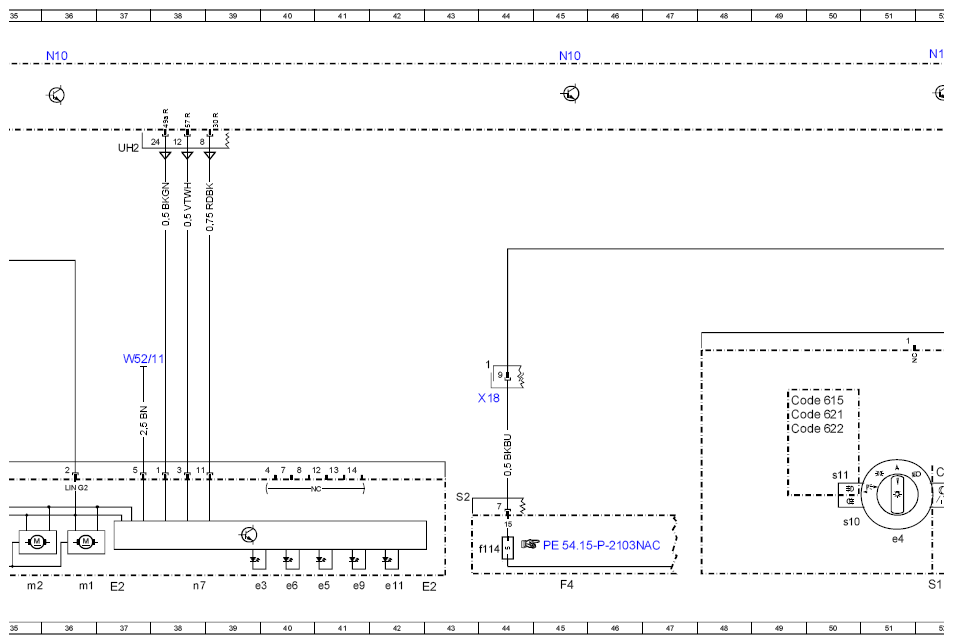

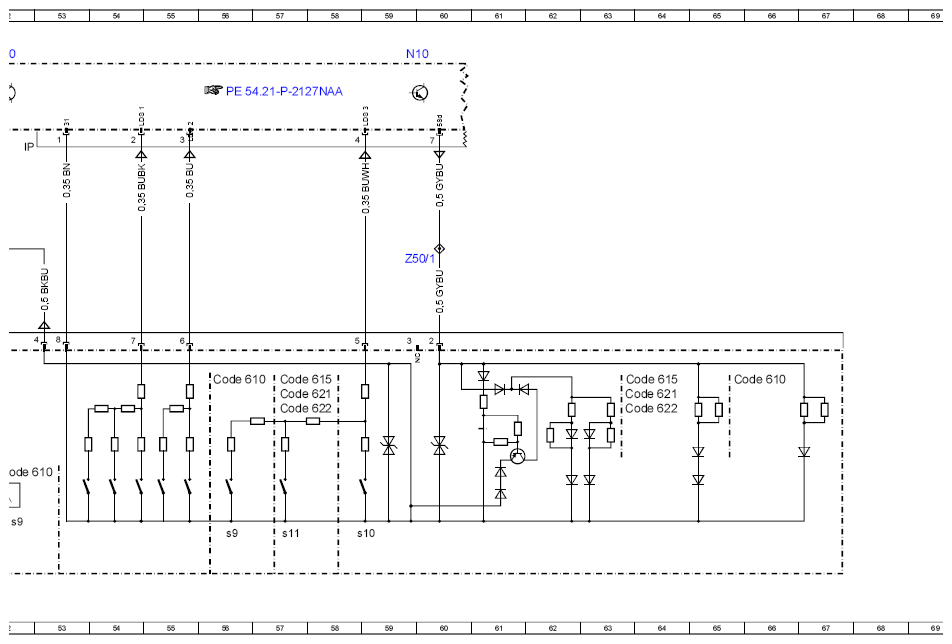

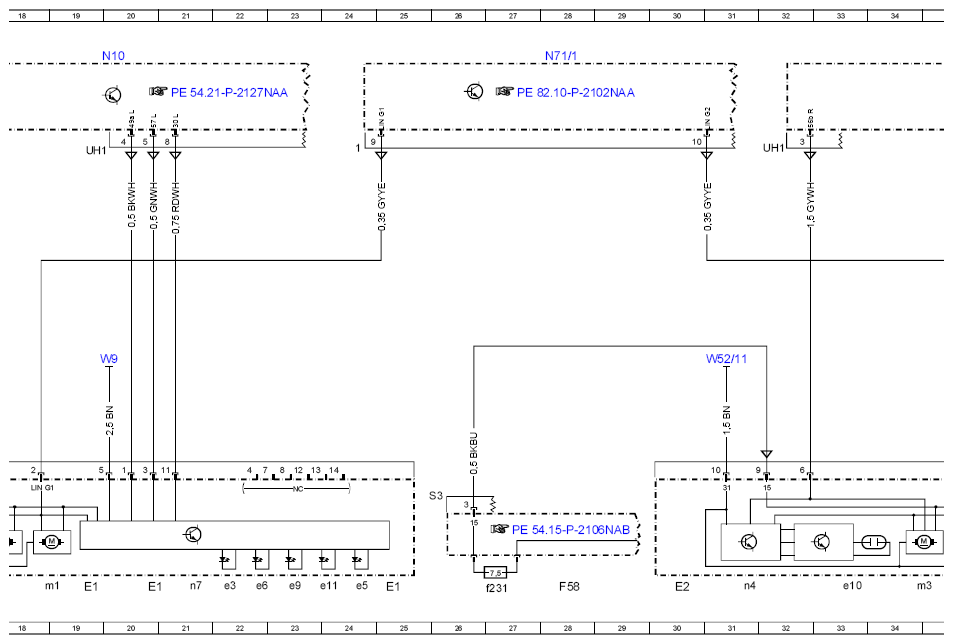

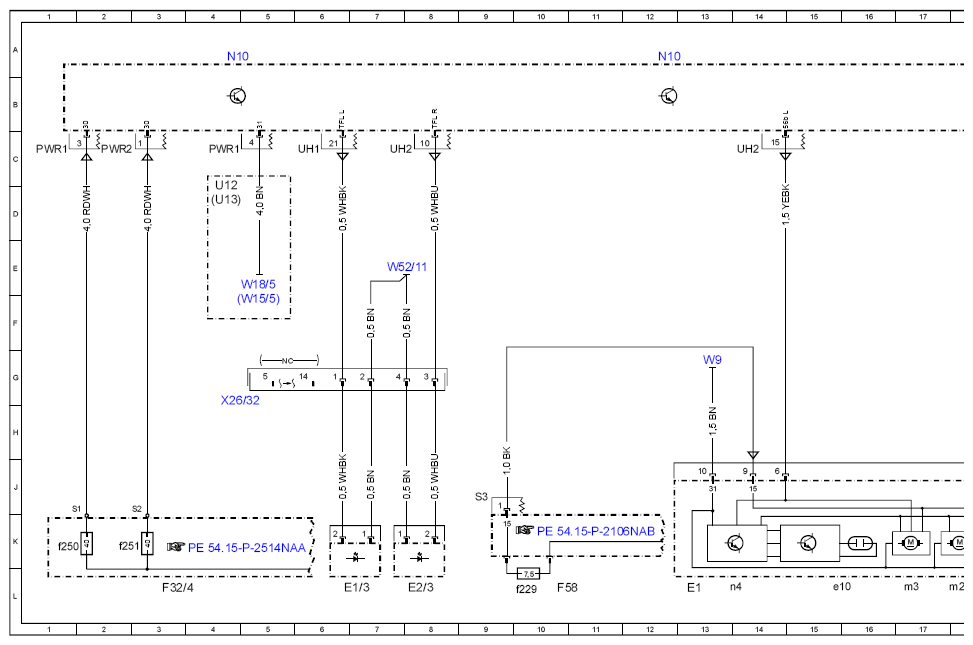

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE 615 (Bi-xenon headlamps with active light function) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System)
| Code: | Designation: | Position: |
|---|---|---|

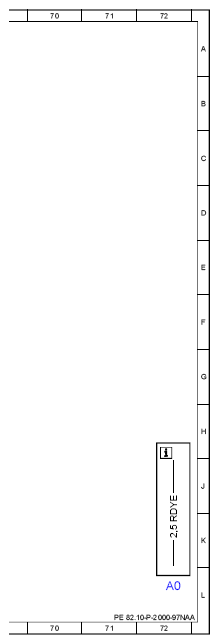

| A0 | Color code key | 72L |
| Code 610 | Night View Assist | 52J |
| Code 610 | Night View Assist | 56G |
| Code 610 | Night View Assist | 65G |
| Code 615 | Bi-xenon headlamp unit with integrated curve illumination | 49H |
| Code 615 | Bi-xenon headlamp unit with integrated curve illumination | 57G |
| Code 615 | Bi-xenon headlamp unit with integrated curve illumination | 63G |
| Code 621 | Intelligent Light System (left-hand traffic) | 49H |
| Code 621 | Intelligent Light System (left-hand traffic) | 57G |
| Code 621 | Intelligent Light System (left-hand traffic) | 63G |
| Code 622 | Intelligent Light System (right-hand traffic) | 49H |
| Code 622 | Intelligent Light System (right-hand traffic) | 57H |
| Code 622 | Intelligent Light System (right-hand traffic) | 63H |
| E1 | Left front lamp unit | 20L |
| E1 | Left front lamp unit | 25L |
| E1 | Left front lamp unit | 19L |
| E1 | Left front lamp unit | 13L |
| E1/3 | Left daytime running lamps headlamp | 7L |
| E1e10 | Left xenon bulb with integrated ignition module | 15L |
| E1e11 | Left infrared lamp | 24L |
| E1e3 | Left front standing and parking lamp | 22L |
| E1e5 | Left front turn signal lamp | 24L |
| E1e6 | Left front side-marker lamp | 22L |
| E1e9 | Left cornering illumination | 23L |
| E1m1 | Left headlamp range adjustment actuator motor | 18L |
| E1m2 | Left active curve illumination actuator motor | 18L |
| E1m3 | Left light distribution actuator motor | 17L |
| E1n4 | Left xenon light power supply module | 14L |
| E1n7 | Actuation module for left front exterior lights LED | 21L |
| E2 | Right front lamp unit | 30L |
| E2 | Right front lamp unit | 37L |
| E2 | Right front lamp unit | 43L |
| E2/3 | Right daytime running lamps headlamp | 8L |
| E2e10 | Right xenon bulb with integrated ignition module | 33L |
| E2e11 | Right infrared lamp | 42L |
| E2e3 | Right front standing and parking lamp | 39L |
| E2e5 | Right front turn signal lamp | 41L |
| E2e6 | Right front side-marker lamp | 40L |
| E2e9 | Right cornering illumination | 41L |
| E2m1 | Right headlamp range adjustment actuator motor | 36L |
| E2m2 | Right active curve illumination actuator motor | 35L |
| E2m3 | Right light distribution actuator motor | 34L |
| E2n4 | Right xenon light power supply module | 31L |
| E2n7 | Actuation module for right front exterior lights LED | 38L |
| F32/4 | Interior prefuse box | 3L |
| F32/4f250 | Fuse 250 | 1K |
| F32/4f251 | Fuse 251 | 2K |
| F4 | Rear fuse box | 45L |
| F4f114 | Fuse 114 | 44K |
| F58 | Engine compartment fuse and relay module | 10L |
| F58 | Engine compartment fuse and relay module | 28L |
| F58f229 | Fuse 229 | 10L |
| F58f231 | Fuse 231 | 27L |
| N10 | SAM control unit | 4A |
| N10 | SAM control unit | 12A |
| N10 | SAM control unit | 20A |
| N10 | SAM control unit | 36A |
| N10 | SAM control unit | 45A |
| N10 | SAM control unit | 52A |
| N10 | SAM control unit | 59A |
| N71/1 | Headlamp control unit | 28A |
| S1 | Exterior lights switch | 52L |
| S1e4 | Switch illumination | 51K |
| S1s10 | Rear fog light button | 50K |
| S1s10 | Rear fog light button | 58K |
| S1s11 | Front fog lamp button | 50J |
| S1s11 | Front fog lamp button | 57K |
| S1s9 | Night View Assist button | 52K |
| S1s9 | Night View Assist button | 56K |
| U12 | Valid for left-hand drive vehicles | 4D |
| U13 | Valid for right-hand drive vehicles | 4D |
| W15/5 | Left front footwell ground point | 5F |
| W18/5 | Roof ground point | 5E |
| W52/11 | Upper right front longitudinal member ground point | 7E |
| W52/11 | Upper right front longitudinal member ground point | 31G |
| W52/11 | Upper right front longitudinal member ground point | 37G |
| W9 | Left front ground point (at lamp unit) | 13G |
| W9 | Left front ground point (at lamp unit) | 20G |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 44G |
| X26/32 | Engine compartment/front bumper electrical connector | 5G |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 60E |
