Wiring Diagram For Headlamp Control Unit - PE82.10-P-2102-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

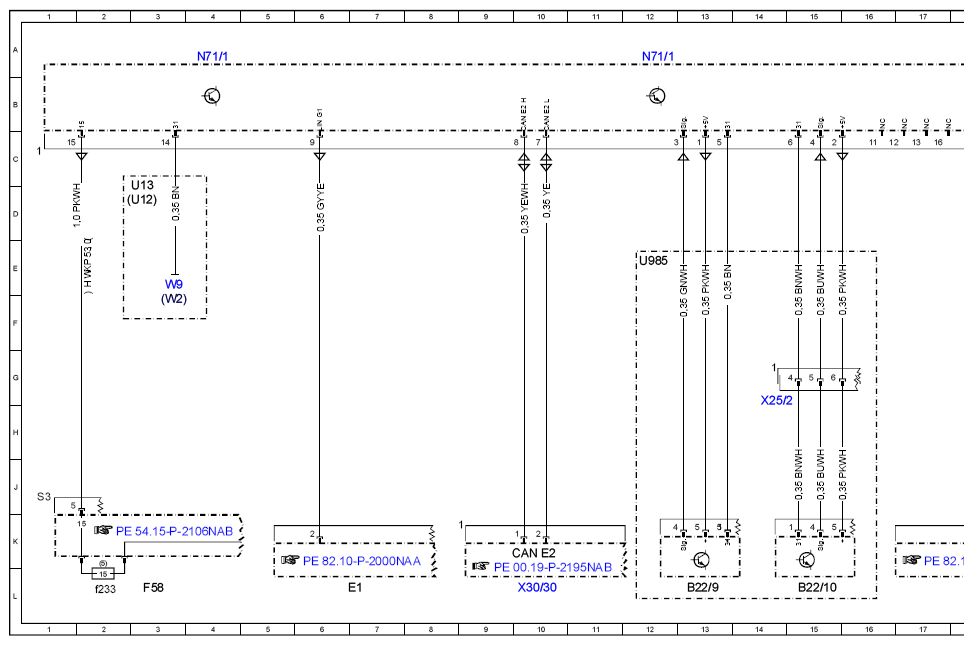

MODEL 166 up to model year 2016 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) with CODE 621 (Intelligent Light System (left-hand traffic)) with CODE 622 (Intelligent Light System (right-hand traffic)) Control unit N71/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| B22/10 | Right rear level sensor | 15L |
| B22/9 | Right front level sensor | 13L |
| CAN E2 | Chassis CAN 2 | 10K |
| E1 | Left front lamp unit | 7L |
| E2 | Right front lamp unit | 18L |
| F58 | Engine compartment fuse and relay module | 3L |
| F58f233 | Fuse 233 | 2L |
| N71/1 | Headlamp control unit | 12A |
| N71/1 | Headlamp control unit | 4A |
| U12 | Valid for left-hand drive vehicles | 2D |
| U13 | Valid for right-hand drive vehicles | 3D |
| U985 | Not valid for AIRMATIC | 12E |
| W2 | Right front ground point at lamp unit | 3F |
| W9 | Left front ground point (at lamp unit) | 3E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 14G |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 10L |
