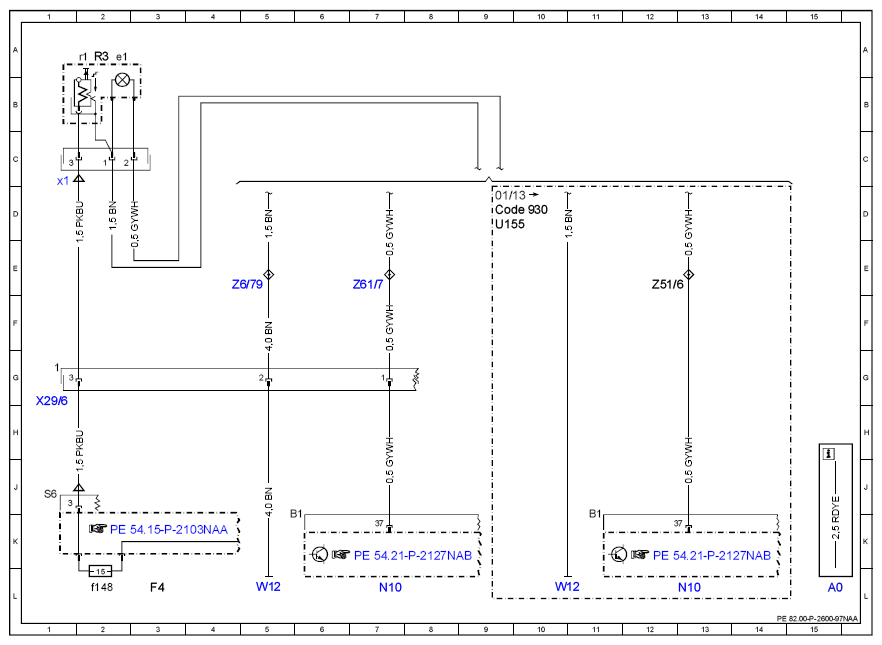

Wiring Diagram Cigar Lighter - PE82.00-P-2600-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE 301 (Ashtray package/smoker package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| Code 930 | Tachograph preinstallation | 9D |
| F4 | Rear fuse box | 3L |
| F4f148 | Fuse 148 | 2L |
| N10 | SAM control unit | 7L |
| N10 | SAM control unit | 13L |
| R3 | Front cigarette lighter with ashtray illumination | 2A |
| R3e1 | Ashtray illumination | 2A |
| R3r1 | Cigarette lighter heating element | 2A |
| R3x1 | Electrical connector for cigarette lighter with ashtray illumination | 1C |
| U155 | Valid for 166.8 | 9D |
| W12 | Ground point (center console) | 5L |
| W12 | Ground point (center console) | 10L |
| X29/6 | Center console electrical connector | 1H |
| Z51/6 | Circuit 58d vehicle interior connector sleeve | 12E |
| Z6/79 | Front center console circuit 31 connector sleeve | 5E |
| Z61/7 | Wiring harness connector sleeve for center console, terminal 58d | 7E |
