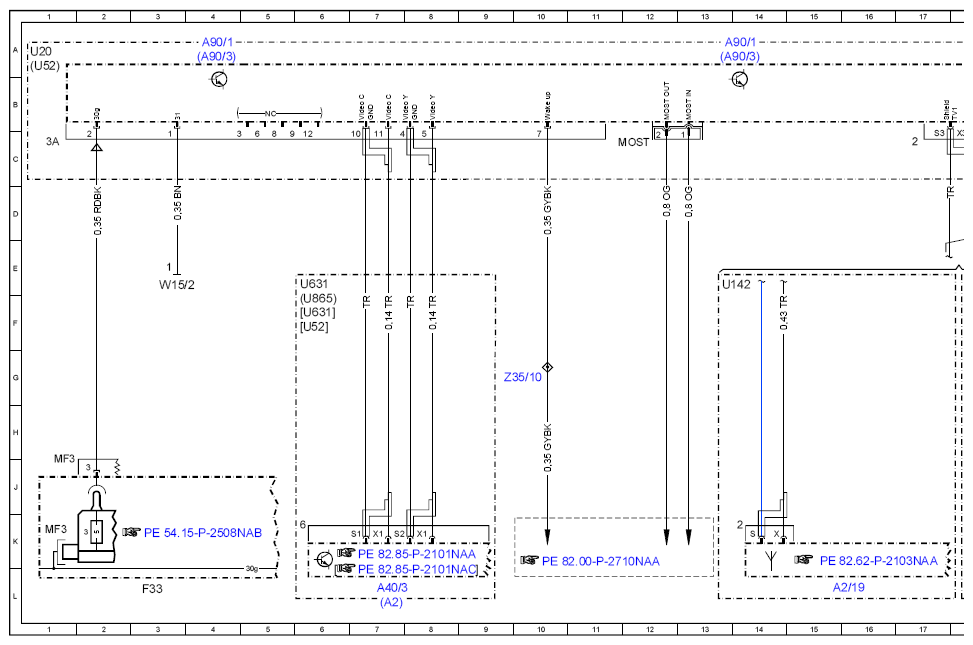

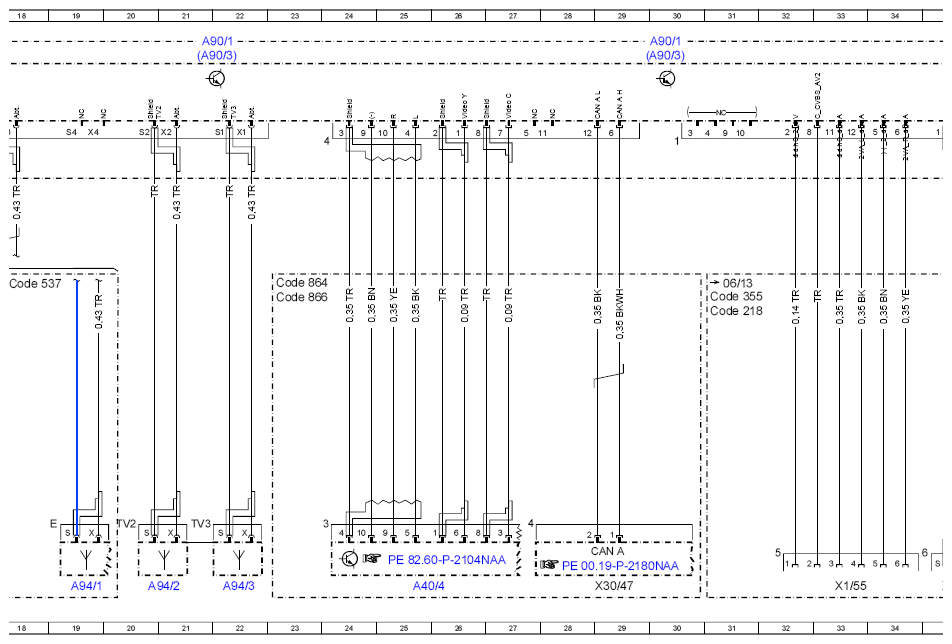

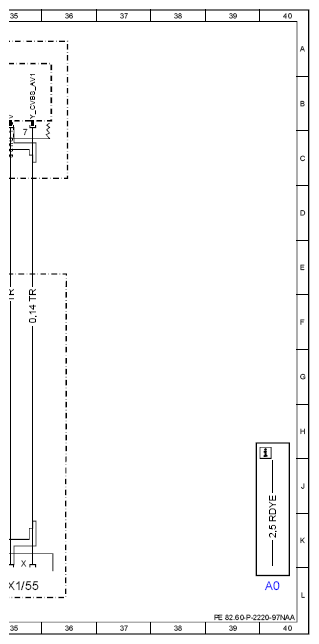

Wiring Diagram Of TV Tuner - PE82.60-P-2220-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2013 with CODE 498 (Japanese version) with CODE 865 (TV tuner) Control unit A90/3
MODEL 166 up to model year 2013 with CODE 863 (Digital/analog TV tuner) without CODE 498 (Japanese version) Control unit A90/1
MODEL 166 up to model year 2016 with CODE 865 (TV tuner) Control unit A90/1, control unit A90/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A2 | Radio | 7L |
| A2/19 | FM 2, DAB and TV 1 antenna amplifier | 16L |
| A40/3 | COMAND control unit | 7L |
| A40/4 | DVD player | 25L |
| A90/1 | TV tuner (analog/digital) | 4A |
| A90/1 | TV tuner (analog/digital) | 14A |
| A90/1 | TV tuner (analog/digital) | 21A |
| A90/1 | TV tuner (analog/digital) | 30A |
| A90/3 | TV digital tuner | 4A |
| A90/3 | TV digital tuner | 13A |
| A90/3 | TV digital tuner | 21A |
| A90/3 | TV digital tuner | 30A |
| A94/1 | TV 1 antenna amplifier | 19L |
| A94/2 | TV 2 antenna amplifier | 20L |
| A94/3 | TV 3 antenna amplifier | 22L |
| CAN A | Telematics CAN | 28K |
| Code 218 | Backup camera | 31F |
| Code 355 | Preinstallation for navigation retrofit | 31F |
| Code 537 | Digital radio | 18E |
| Code 864 | Rear compartment entertainment | 23E |
| Code 866 | Rear entertainment preinstallation | 23F |
| F33 | Battery compartment prefuse box | 3L |
| F33MF3 | Multiple fuse 3 | 1K |
| U142 | Valid without Digital Audio Broadcasting | 13E |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 1A |
| U52 | Valid for Japan | 6F |
| U52 | Valid for Japan | 1A |
| U631 | Valid for COMAND | 6E |
| U631 | Valid for COMAND | 6F |
| U865 | Valid for Audio 20 | 6F |
| W15/2 | Left footwell ground point | 3E |
| X1/55 | External navigation electrical connector | 33L |
| X1/55 | External navigation electrical connector | 35L |
| X30/47 | Telematics CAN voltage distributor electrical connector | 29L |
| Z35/10 | MOST wake-up signal connector sleeve | 10G |
