Wiring Diagram Of Navigation System - PE82.85-P-2005-97NAB
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE 835 (South Korea version) without CODE 508 (Navigation box preinstallation) without CODE 509 (Navigation box)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2 | Radio | 22L |
| A28/11 | Multifunction antenna | 25L |
| A40/3 | COMAND control unit | 21L |
| A90/1 | TV tuner (analog/digital) | 28L |
| B152 | Navigation remote control infrared receiver | 18L |
| Code 301 | Ashtray in place of stowage compartment with flap and power outlet | 15H |
| Code 863 | Digital/analog TV tuner | 26A |

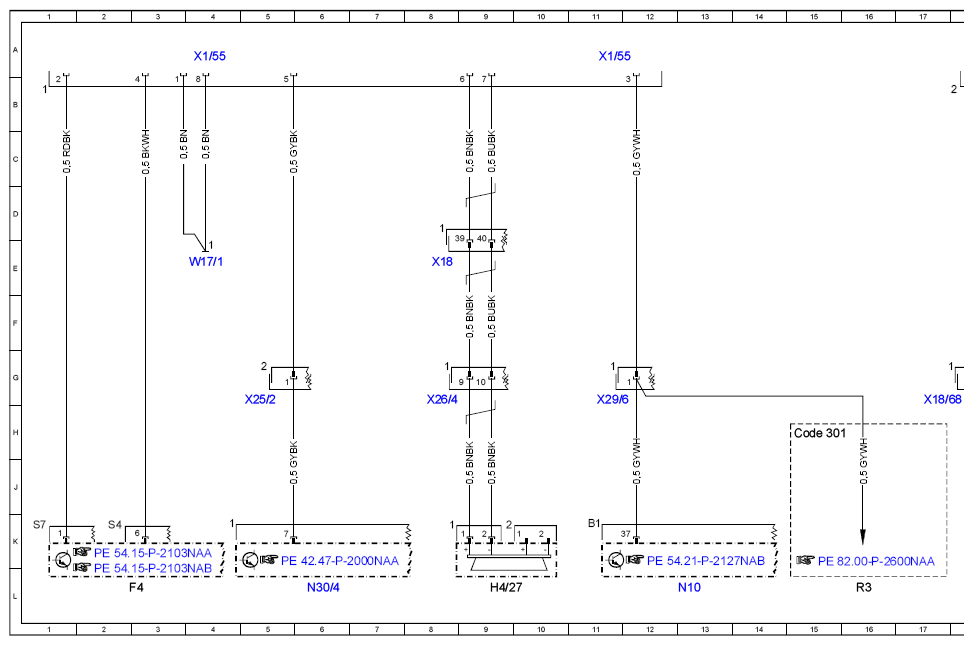

| F4 | Rear fuse box | 3L |
| H4/27 | Center instrument panel speaker | 9L |
| N10 | SAM control unit | 13L |
| N30/4 | Electronic Stability Program control unit | 6L |
| R3 | Front cigarette lighter with ashtray illumination | 16L |

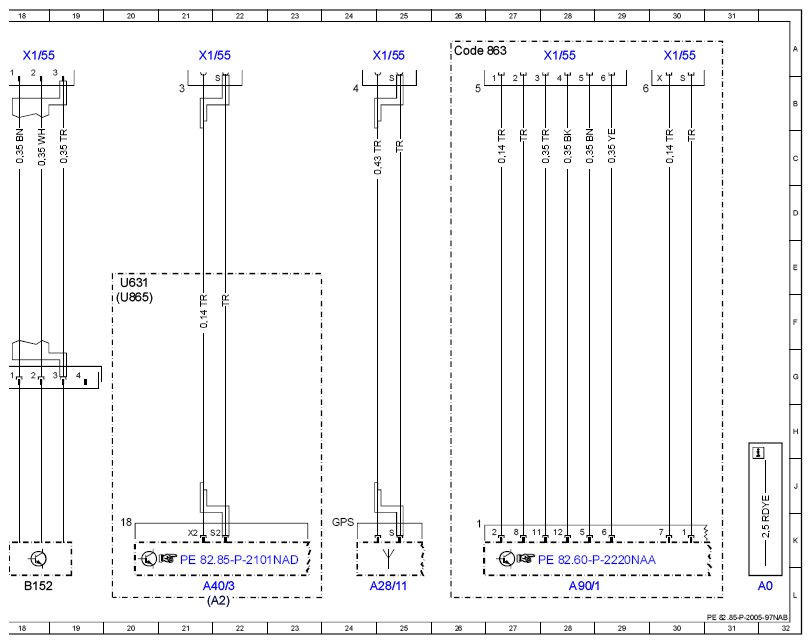

| U631 | Valid for COMAND | 20E |
| U865 | Valid for Audio 20 | 20F |
| W17/1 | Left rear seat ground point | 4E |
| X1/55 | External navigation electrical connector | 4A |
| X1/55 | External navigation electrical connector | 11A |
| X1/55 | External navigation electrical connector | 21A |
| X1/55 | External navigation electrical connector | 18A |
| X1/55 | External navigation electrical connector | 25A |
| X1/55 | External navigation electrical connector | 28A |
| X1/55 | External navigation electrical connector | 30A |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 8E |
| X18/68 | External navigation infrared receiver electrical connector | 17G |
| X25/2 | Engine compartment/vehicle interior electrical connector | 5G |
| X26/4 | Cockpit adapter wiring harness electrical connector | 8G |
| X29/6 | Center console electrical connector | 11G |
