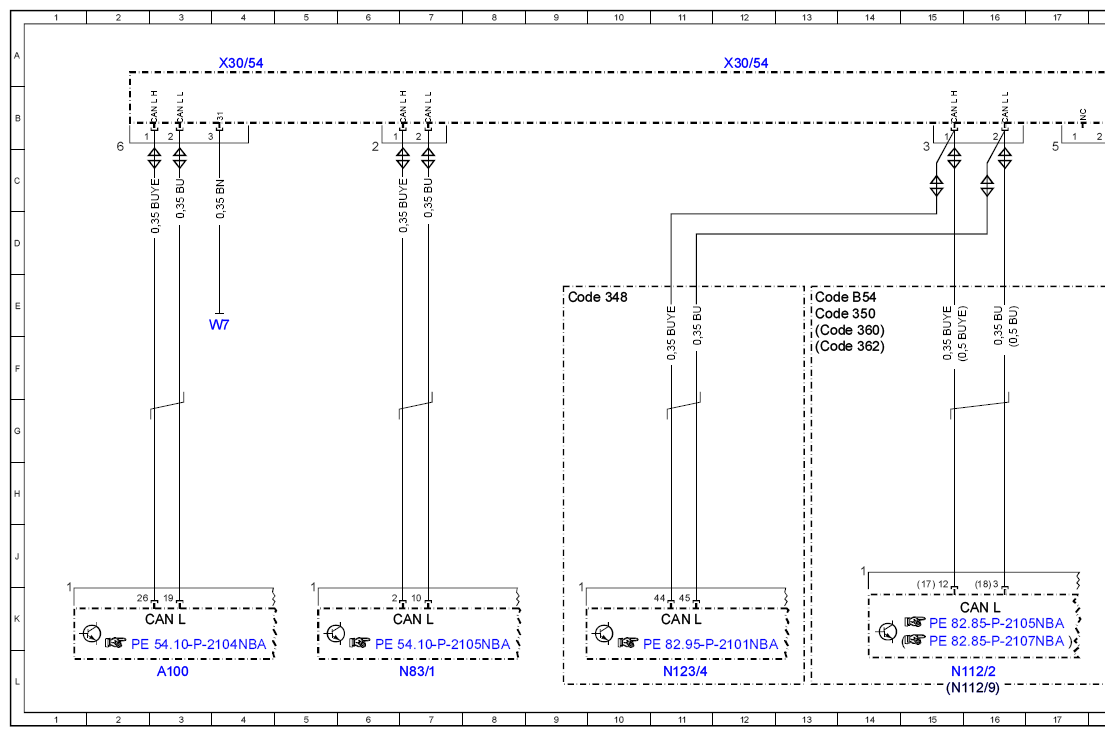

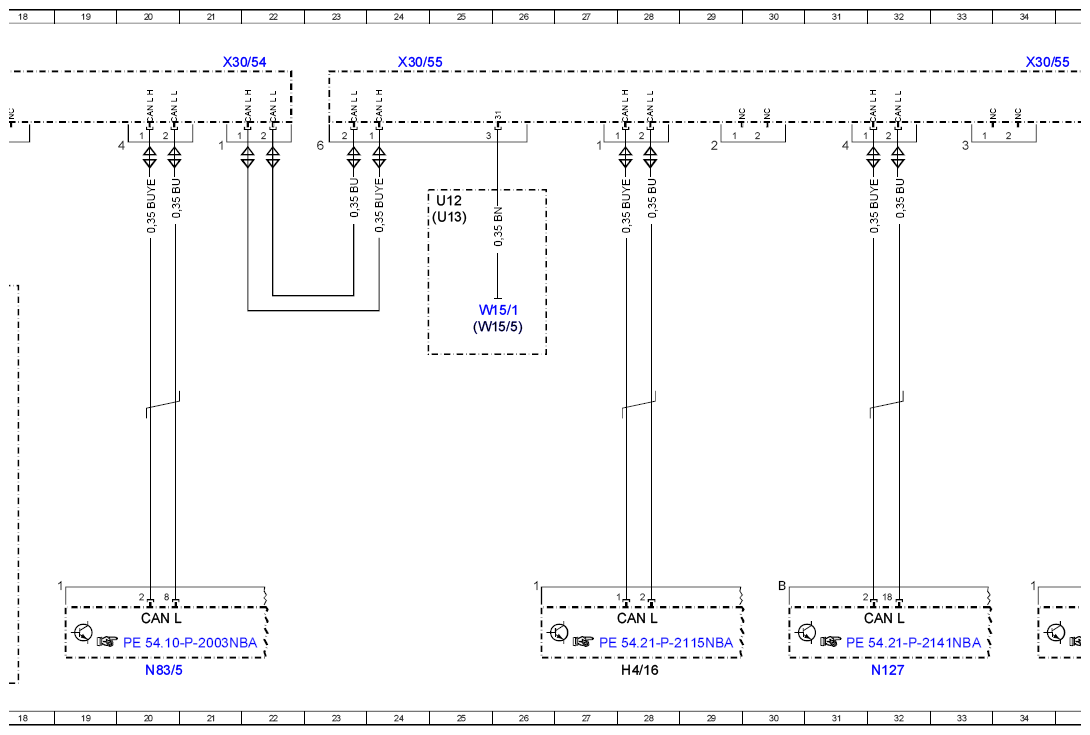

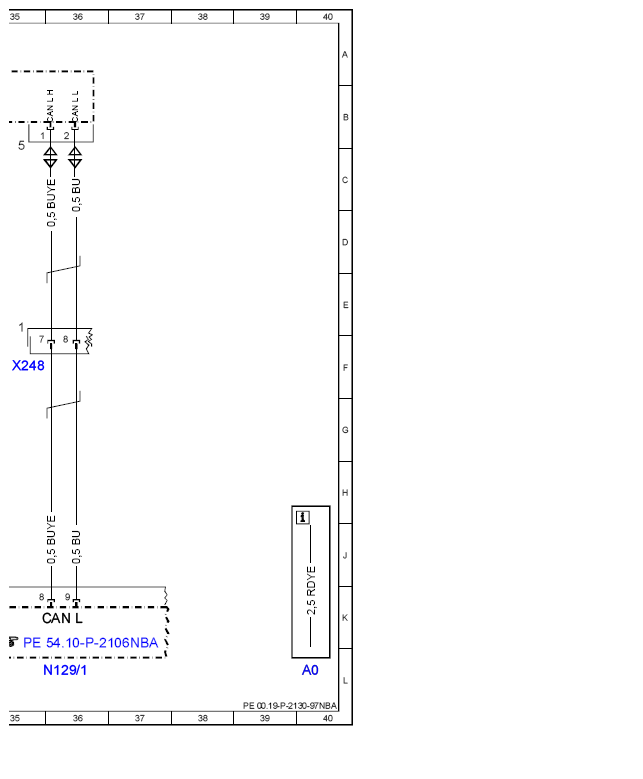

Wiring Diagram, Hybrid CAN - PE00.19-P-2130-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166.063 as of model year 2016 with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Potential distributor X30/54, X30/55
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A100 | High-voltage battery module | 3L |
| CAN L | Hybrid CAN | 3K |
| CAN L | Hybrid CAN | 7K |
| CAN L | Hybrid CAN | 20K |
| CAN L | Hybrid CAN | 11K |
| CAN L | Hybrid CAN | 32K |
| CAN L | Hybrid CAN | 28K |
| CAN L | Hybrid CAN | 36K |
| CAN L | Hybrid CAN | 16K |
| Code 348 | Emergency call/assistance system | 9E |
| Code 350 | Ecall Europe emergency call system | 13E |
| Code 360 | HERMES UMTS | 13E |
| Code 362 | HERMES LTE | 13F |
| Code B54 | Live Traffic Information | 13E |
| H4/16 | Sound generator | 28L |
| N112/2 | Telematics services communication module | 15L |
| N112/9 | HERMES control unit | 15L |
| N123/4 | Emergency call system control unit | 11L |
| N127 | Drivetrain control unit | 32L |
| N129/1 | Power electronics control unit | 36L |
| N83/1 | DC/DC converter control unit | 7L |
| N83/5 | Charger | 20L |
| U12 | Valid for left-hand drive vehicles | 25C |
| U13 | Valid for right-hand drive vehicles | 25D |
| W15/1 | Right footwell ground point | 25E |
| W15/5 | Left front footwell ground point | 25E |
| W7 | Right rear center section ground point | 4E |
| X248 | Underfloor electrical connector (rectifier) | 35F |
| X30/54 | Rear hybrid CAN (CAN L) potential distributor electrical connector | 4A |
| X30/54 | Rear hybrid CAN (CAN L) potential distributor electrical connector | 12A |
| X30/54 | Rear hybrid CAN (CAN L) potential distributor electrical connector | 21A |
| X30/55 | Front hybrid CAN (CAN L) potential distributor electrical connector | 34A |
| X30/55 | Front hybrid CAN (CAN L) potential distributor electrical connector | 24A |
