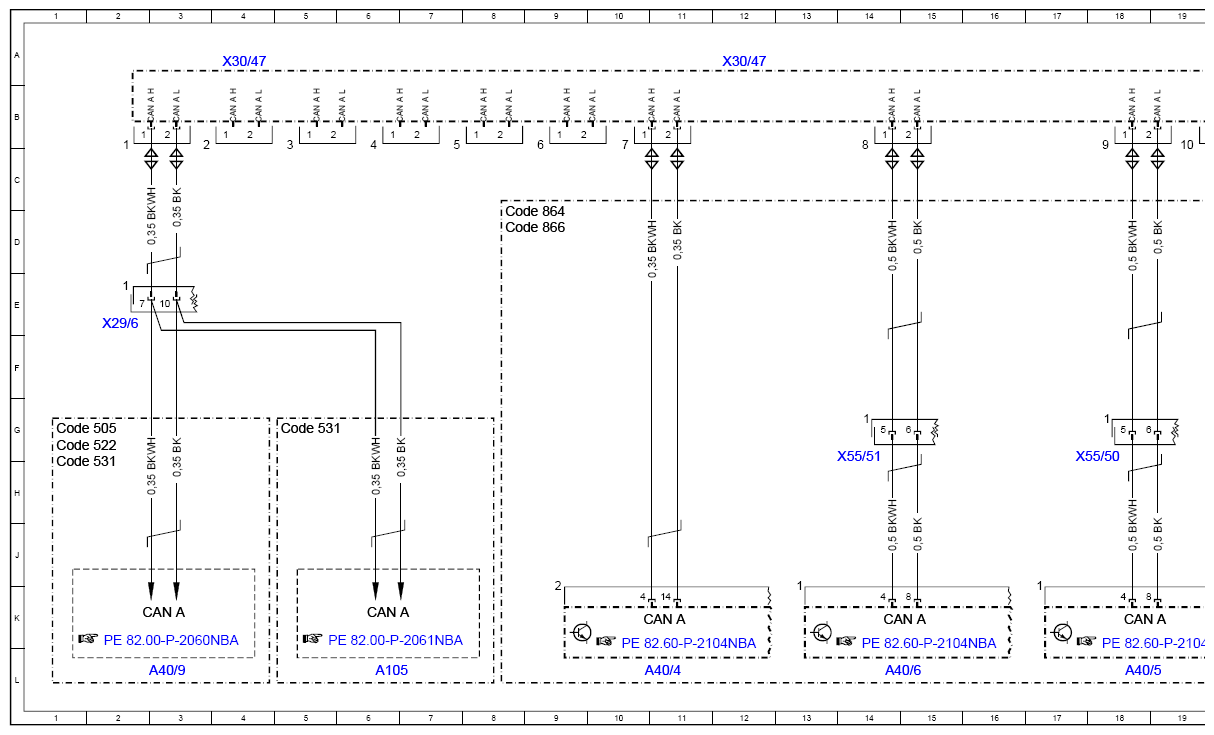

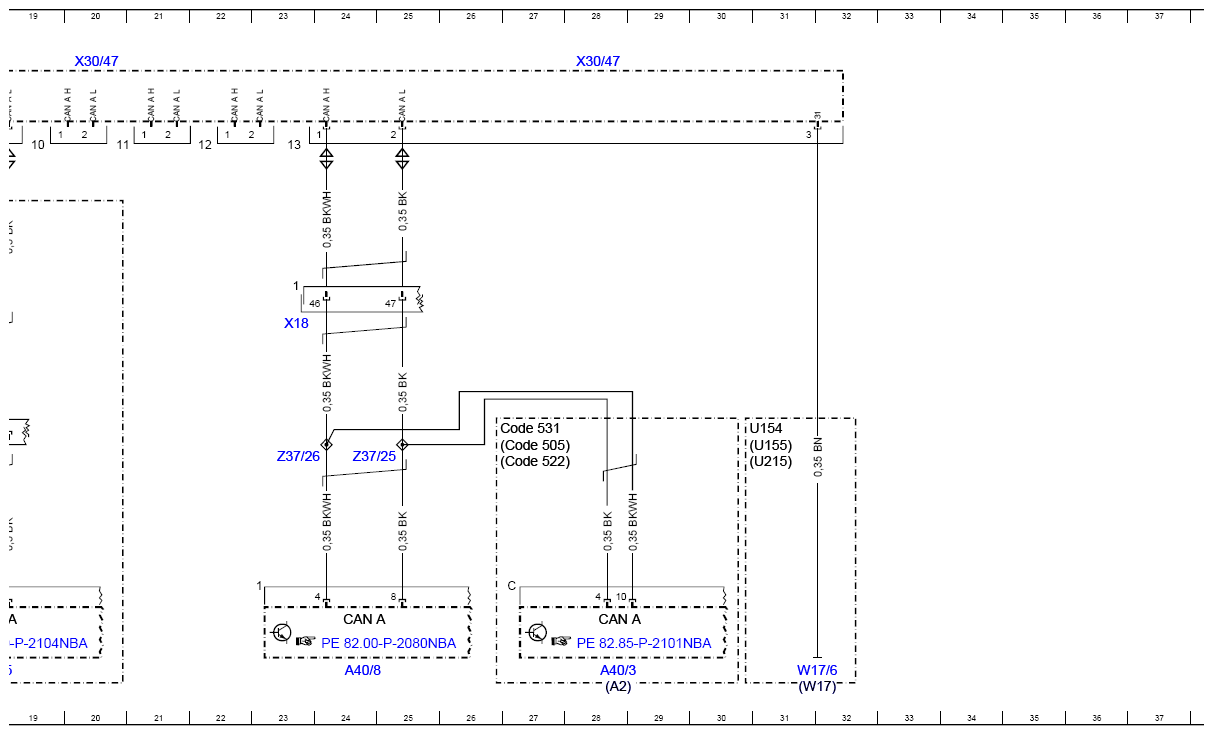

Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 Potential distributor X30/47
MODEL 292 Potential distributor X30/47
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A105 | Touchpad | 6L |
| A2 | Radio | 28L |
| A40/3 | COMAND control unit | 28L |
| A40/4 | DVD player | 11L |
| A40/5 | Left rear display | 18L |
| A40/6 | Right rear display | 14L |
| A40/8 | Audio/COMAND display | 24L |
| A40/9 | Audio/COMAND control panel | 3L |
| CAN A | Telematics CAN | 3K |
| CAN A | Telematics CAN | 6K |
| CAN A | Telematics CAN | 11K |
| CAN A | Telematics CAN | 14K |
| CAN A | Telematics CAN | 18K |
| CAN A | Telematics CAN | 24K |
| CAN A | Telematics CAN | 28K |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 1G |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 26G |
| Code 522 | Audio 20 radio | 1G |
| Code 522 | Audio 20 radio | 26H |
| Code 531 | COMAND APS | 1H |
| Code 531 | COMAND APS | 5G |
| Code 531 | COMAND APS | 26G |
| Code 864 | Rear compartment entertainment | 8D |
| Code 866 | Rear entertainment preinstallation | 8D |
| U154 | Valid for 166.0 | 30G |
| U155 | Valid for 166.8 | 30G |
| U215 | Valid for model series 292 | 30H |
| W17 | Right rear seat ground point | 31L |
| W17/6 | Rear seat crossmember ground point | 31L |
| X18 | Vehicle interior and harness for taillamp electrical connector | 23E |
| X29/6 | Center console electrical connector | 2E |
| X30/47 | Telematics CAN voltage distributor electrical connector | 4A |
| X30/47 | Telematics CAN voltage distributor electrical connector | 12A |
| X30/47 | Telematics CAN voltage distributor electrical connector | 20A |
| X30/47 | Telematics CAN voltage distributor electrical connector | 28A |
| X55/50 | Left rear display electrical connector | 18H |
| X55/51 | Right rear display electrical connector | 14H |
| Z37/25 | Telematics CAN (low) connector sleeve | 24G |
| Z37/26 | Telematics CAN (high) connector sleeve | 23G |
