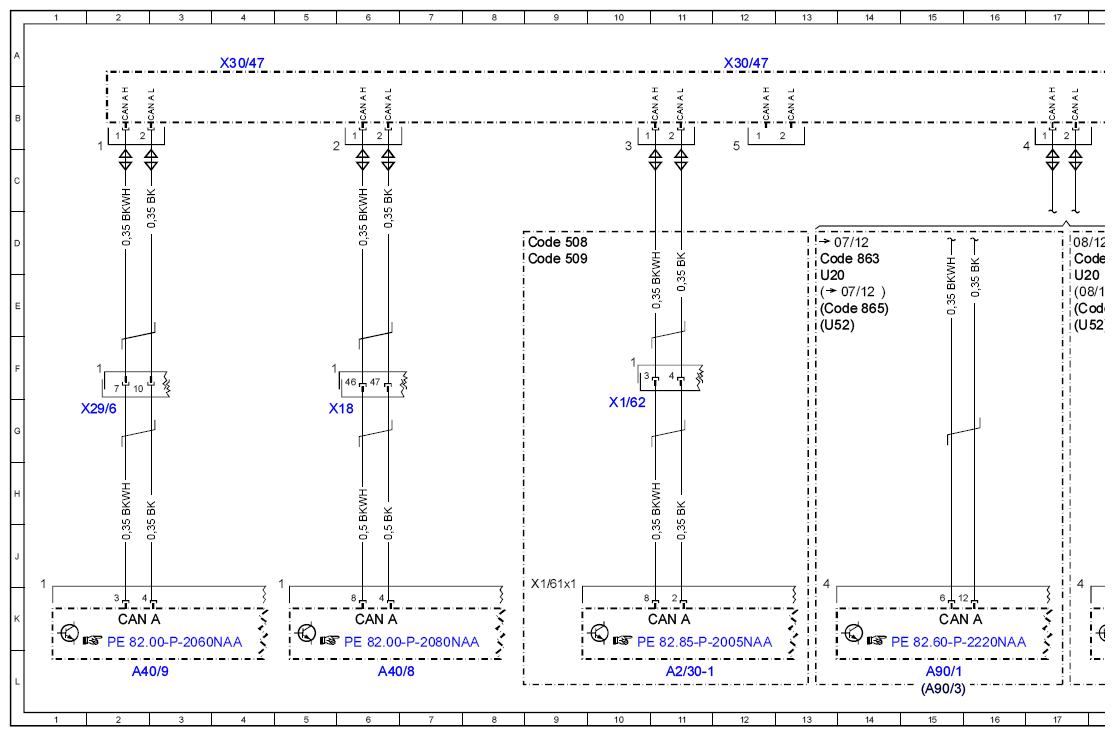

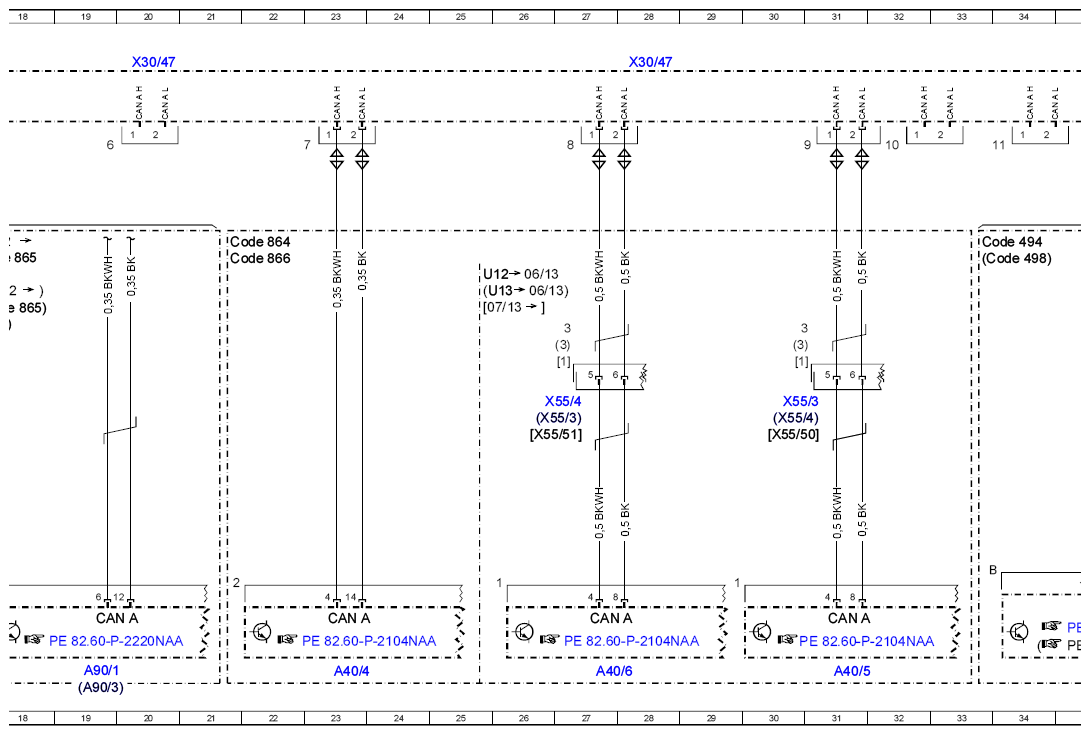

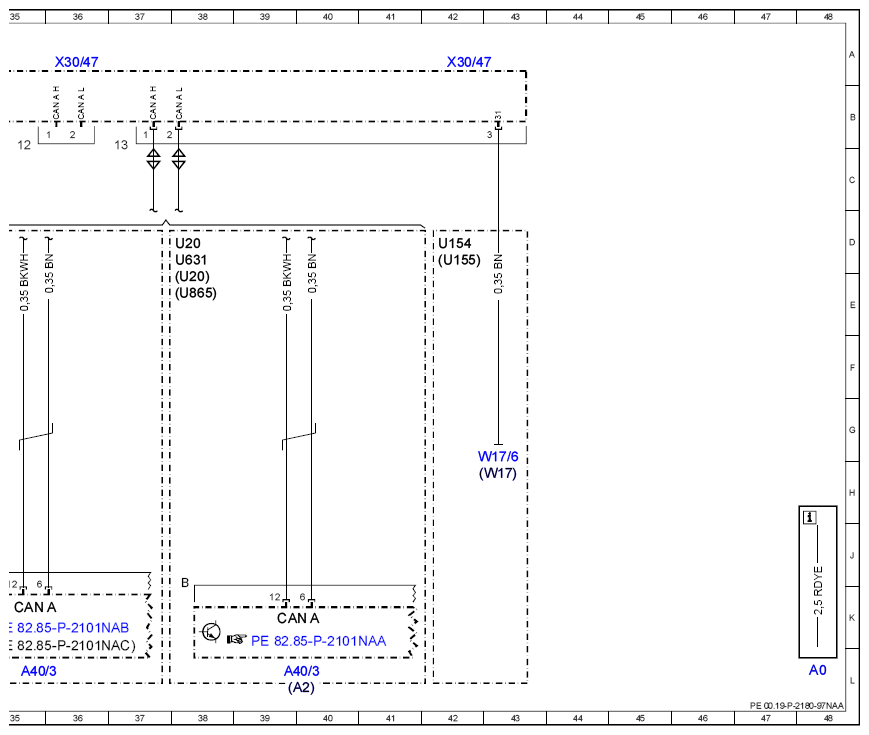

Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 Potential distributor X30/47
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A2 | Radio | 39L |
| A2/30-1 | Cradle for navigation module | 11L |
| A40/3 | COMAND control unit | 39L |
| A40/3 | COMAND control unit | 35L |
| A40/4 | DVD player | 23L |
| A40/5 | Left rear display | 31L |
| A40/6 | Right rear display | 27L |
| A40/8 | Audio/COMAND display | 6L |
| A40/9 | Audio/COMAND control panel | 2L |
| A90/1 | TV tuner (analog/digital) | 15L |
| A90/1 | TV tuner (analog/digital) | 19L |
| A90/3 | TV digital tuner | 15L |
| A90/3 | TV digital tuner | 19L |
| CAN A | Telematics CAN | 2K |
| CAN A | Telematics CAN | 6K |
| CAN A | Telematics CAN | 11K |
| CAN A | Telematics CAN | 15K |
| CAN A | Telematics CAN | 19K |
| CAN A | Telematics CAN | 23K |
| CAN A | Telematics CAN | 39K |
| CAN A | Telematics CAN | 35K |
| CAN A | Telematics CAN | 27K |
| CAN A | Telematics CAN | 31K |
| Code 494 | USA version | 33D |
| Code 498 | Japan version | 33D |
| Code 508 | Navigation module preinstallation | 9D |
| Code 509 | Navigation module | 9D |
| Code 863 | Digital/analog TV tuner | 13D |
| Code 864 | Rear compartment entertainment | 21D |
| Code 865 | TV tuner (digital) | 13E |
| Code 865 | TV tuner (digital) | 17D |
| Code 865 | TV tuner (digital) | 17E |
| Code 866 | Rear entertainment preinstallation | 21D |
| U12 | Valid for left-hand drive vehicles | 25E |
| U13 | Valid for right-hand drive vehicles | 25E |
| U154 | Valid for 166.0 | 42D |
| U155 | Valid for 166.8 | 42D |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 13E |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 17E |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 38E |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 38D |
| U52 | Val id for Japan | 13E |
| U52 | Val id for Japan | 17E |
| U631 | Valid for COMAND | 38D |
| U865 | Val id for Audio 20 | 38E |
| W17 | Right rear seat ground point | 43H |
| W17/6 | Rear seat crossmember ground point | 43H |
| X1/62 | Vehicle interior electrical connector for navigation module/cradle for navigation module | 10G |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 6G |
| X29/6 | Center console electrical connector | 2G |
| X30/47 | Telematics CAN voltage distributor electrical connector | 4A |
| X30/47 | Telematics CAN voltage distributor electrical connector | 12A |
| X30/47 | Telematics CAN voltage distributor electrical connector | 20A |
| X30/47 | Telematics CAN voltage distributor electrical connector | 28A |
| X30/47 | Telematics CAN voltage distributor electrical connector | 36A |
| X30/47 | Telematics CAN voltage distributor electrical connector | 42A |
| X55/3 | Driver seat connector block | 27G |
| X55/3 | Driver seat connector block | 30G |
| X55/4 | Front passenger seat connector block | 27G |
| X55/4 | Front passenger seat connector block | 30G |
| X55/50 | Left rear display electrical connector | 30G |
| X55/51 | Right rear display electrical connector | 26G |
