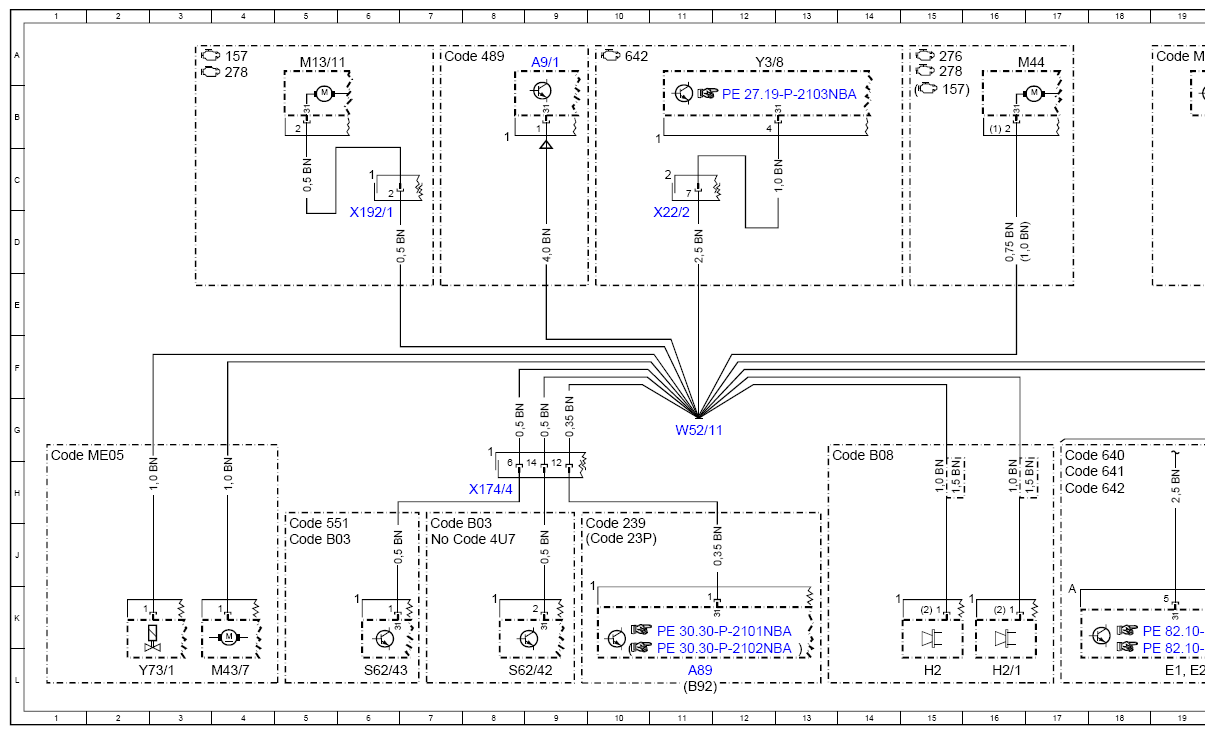

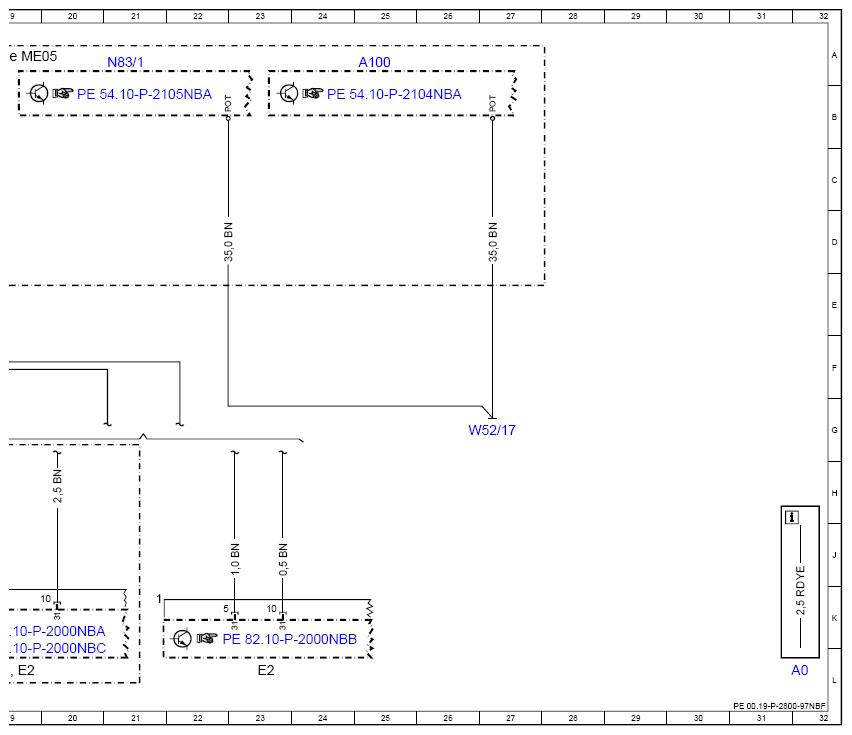

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97NBF
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 W52/11, W52/16, Z6/99
MODEL 292 W52/11, W52/16, Z6/99
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A100 | High-voltage battery module | 25A |
| A89 | DISTRONIC electric controller unit | 11L |
| A9/1 | AIRMATIC compressor | 9A |
| B92 | Front long-range radar sensor | 11L |
| Code 239 | DISTRONIC Distance-Pilot | 9J |
| Code 23P | Driver assistance package | 9J |
| Code 489 | AIRMATIC | 7A |
| Code 4U7 | Start/stop voltage dip protection | 7J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 5J |
| Code 640 | High Performance LED | 17G |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 17H |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 17H |
| Code B03 | ECO start/stop function | 5J |
| Code B03 | ECO start/stop function | 7J |
| Code B08 | Horn (Asia) | 13G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 19A |
| E1 | Left front lamp unit | 19L |
| E2 | Right front lamp unit | 19L |
| E2 | Right front lamp unit | 23L |
| H2 | Left fanfare horn | 15L |
| H2/1 | Right fanfare horn | 16L |
| M13/11 | Coolant run-on pump | 5A |
| M43/7 | Low temperature circuit circulation pump 2 | 4L |
| M44 | Charge air cooler circulation pump | 17A |
| N83/1 | DC/DC converter control unit | 21A |
| S62/42 | Right engine hood contact switch | 8L |
| S62/43 | Left engine hood contact switch | 6L |
| W52/11 | Upper right front longitudinal member ground point | 11G |
| W52/17 | DC/DC converter longitudinal member ground connection | 27G |
| X174/4 | Engine compartment/vehicle front electrical connector | 8H |
| X192/1 | Coolant run-on pump electrical connector | 6D |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 11D |
| Y3/8 | Fully integrated transmission control unit | 12A |
| Y73/1 | Low-temperature circuit switchover valve | 2L |
