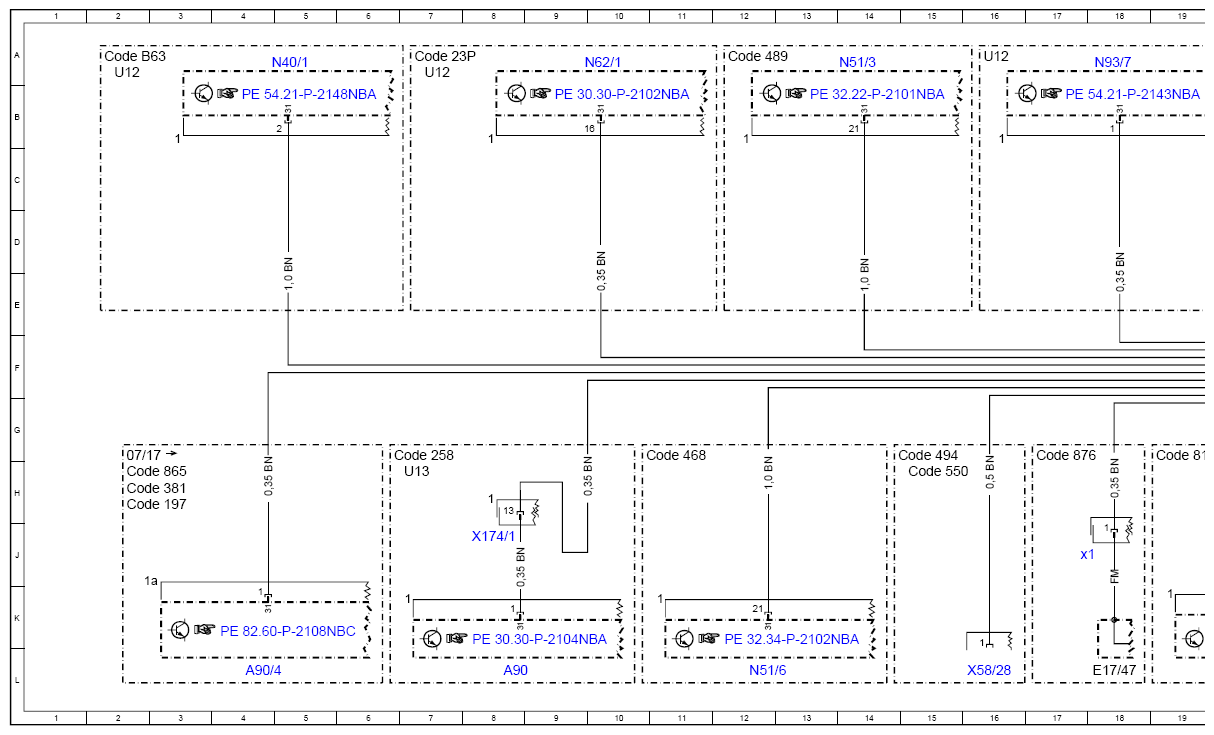

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97NBD
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 W2, W6, W15/2, W26
MODEL 292 W2, W6, W15/2, W26
| Code: | Designation: | Position: |
|---|---|---|

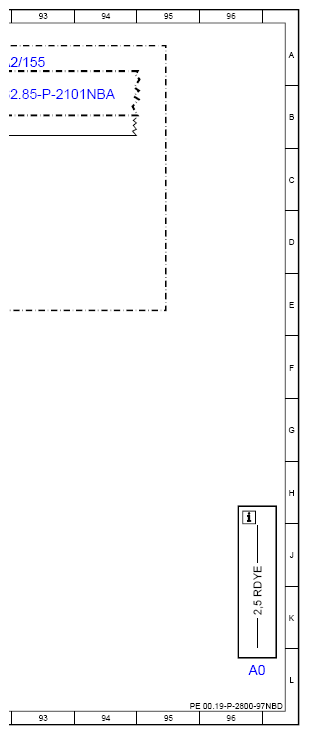

| A0 | Color code key | 96L |
| A100 | High-voltage battery module | 87A |
| A2/155 | Telephone and stationary heater antenna changeover switch | 93A |
| A40/13 | Stereo multifunction camera | 38A |
| A40/5 | Left rear display | 33A |
| A90 | COLLISION PREVENTION ASSIST controller unit | 8L |
| A90/4 | Tuner unit | 4L |
| A90/4 | Tuner unit | 29L |
| B48 | Front passenger seat occupied recognition and ACSR | 68A |
| B51/5 | Left pop-out window anti-pinch protection contact strip | 76A |
| B51/5x1 | Left pop-out window anti-pinch protection contact strip electrical connector | 75D |
| B92/1 | Center rear bumper radar sensor | 74L |
| B92/10 | Left outer rear bumper radar sensor | 75L |
| B92/11 | Left outer rear bumper integrated radar sensor | 79L |
| B92/6 | Right outer rear bumper integrated radar sensor | 80L |
| B92/7 | Right outer rear bumper radar sensor | 77L |
| Code 197 | CONVERSTION TO DVB-T2 WITH EXT. CARD READER/HD-TV KOREA | 2H |
| Code 23P | Driver assistance package | 7A |
| Code 23P | Driver assistance package | 34B |
| Code 23P | Driver assistance package | 34A |
| Code 23P | Driver assistance package | 71G |
| Code 258 | Active Brake Assist | 6G |
| Code 275 | Memory package | 28C |
| Code 381 | CI+BOX CARD READER FOR DVB-T2 STANDARD | 2H |
| Code 386 | Comfort telephony | 89B |
| Code 386 | Comfort telephony | 89B |
| Code 468 | ACTIVE CURVE SYSTEM | 10G |
| Code 489 | AIRMATIC | 12A |
| Code 494 | USA version | 14G |
| Code 501 | 360 degree camera | 23G |
| Code 536 | SIRIUS satellite radio | 27G |
| Code 537 | Digital radio | 27H |
| Code 550 | Trailer hitch | 15H |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 46G |
| Code 582 | Air conditioning in rear | 81A |
| Code 810 | Sound system | 19G |
| Code 811 | Extended sound system | 78A |
| Code 846 | Running boards | 36G |
| Code 864 | Rear compartment entertainment | 32A |
| Code 865 | TV tuner | 2H |
| Code 865 | TV tuner | 27H |
| Code 876 | Interior lights package | 17G |
| Code B63 | AMG eSound | 2A |
| Code L | LEFT-HAND DRIVE | 35B |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 50G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 44A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 85A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 53A |
| Code R | RIGHT-HAND DRIVE | 40A |
| Code U10 | Front passenger seat with weight detection | 62A |
| Code U18 | Automatic child seat recognition (ACSR [AKSE]) | 67A |
| E17/47 | Left front illuminated door sill molding | 18L |
| E17/47x1 | Left front illuminated door sill molding electrical connector | 17J |
| E17/53 | Left running board courtesy light | 39L |
| E17/53e1 | Left rear running board courtesy light | 40L |
| E17/53e2 | Left front running board courtesy light | 38L |
| E18/1 | Load compartment lamp | 77A |
| E19/1 | Left license plate lamp | 82L |
| E19/2 | Right license plate lamp | 83L |
| E3 | Left rear lamp unit | 68L |
| F58 | Engine compartment fuse and relay module | 51A |
| H3/1 | Alarm siren | 48L |
| H4/16 | Sound generator | 52L |
| M55 | Intake port shutoff actuator motor | 59A |
| M6/1 | Wiper motor | 42A |
| N110 | Weight Sensing System (WSS) control unit | 64A |
| N148 | 360° camera control unit | 24L |
| N2/10 | Supplemental restraint system control unit | 65L |
| N29/2 | Rear air conditioning electronic blower controller | 83A |
| N3/10 | ME-SFI [ME] control unit | 56L |
| N3/10 | ME-SFI [ME] control unit | 56L |
| N3/9 | CDI control unit | 60L |
| N32/1 | Driver seat control unit | 22A |
| N32/2 | Front passenger seat control unit | 29A |
| N40/1 | Engine sound control unit | 5A |
| N40/3 | Sound system amplifier control unit | 20L |
| N40/3 | Sound system amplifier control unit | 80A |
| N51/3 | AIRMATIC control unit | 14A |
| N51/3 | AIRMATIC control unit | 72A |
| N51/6 | Active roll stabilization control unit | 12L |
| N62/1 | Radar sensors control unit | 10A |
| N69/1 | Left front door control unit | 33L |
| N93/7 | Chassis gateway control unit | 18A |
| R12/10 | Front passenger sidebag squib | 25A |
| R12/9 | Driver sidebag squib | 27A |
| S10/2 | Right front brake wear sensor | 43L |
| S10/2x1 | Right front brake wear sensor electrical connector | 43J |
| S88/8 | Tailgate external operation switch | 85L |
| U12 | Valid for left-hand drive vehicles | 2A |
| U12 | Valid for left-hand drive vehicles | 16A |
| U12 | Valid for left-hand drive vehicles | 20A |
| U12 | Valid for left-hand drive vehicles | 7A |
| U13 | Valid for right-hand drive vehicles | 24A |
| U13 | Valid for right-hand drive vehicles | 7H |
| U154 | Valid for 166.0 | 27J |
| U154 | Valid for 166.0 | 69A |
| U154 | Valid for 166.0 | 71H |
| U154 | Valid for 166.0 | 89A |
| U155 | Valid for 166.8 | 27J |
| U155 | Valid for 166.8 | 68G |
| U155 | Valid for 166.8 | 69B |
| U155 | Valid for 166.8 | 71H |
| U155 | Valid for 166.8 | 74A |
| U155 | Valid for 166.8 | 78A |
| U215 | Valid for model series 292 | 27J |
| U215 | Valid for model series 292 | 68G |
| U215 | Valid for model series 292 | 71H |
| U215 | Valid for model series 292 | 81G |
| U215 | Valid for model series 292 | 89B |
| U259 | Valid for ADS+ | 69B |
| U259 | Valid for ADS+ | 69A |

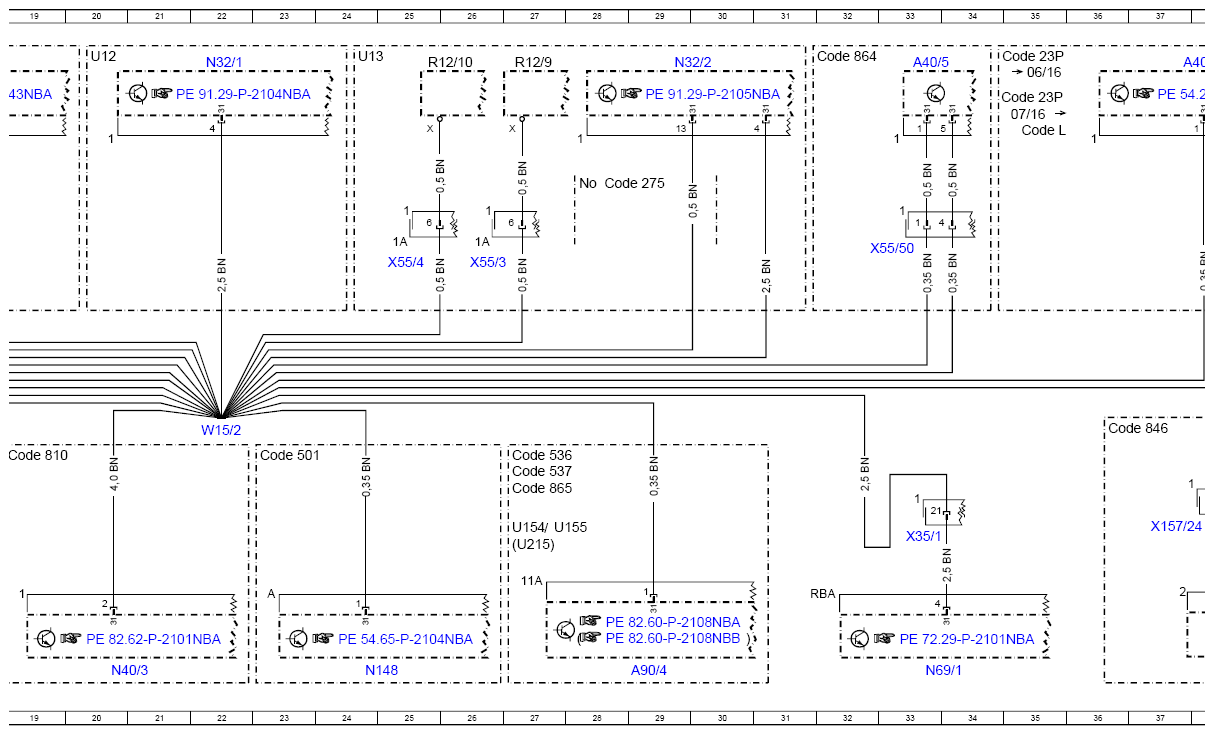

| W15/2 | Left footwell ground point | 22G |

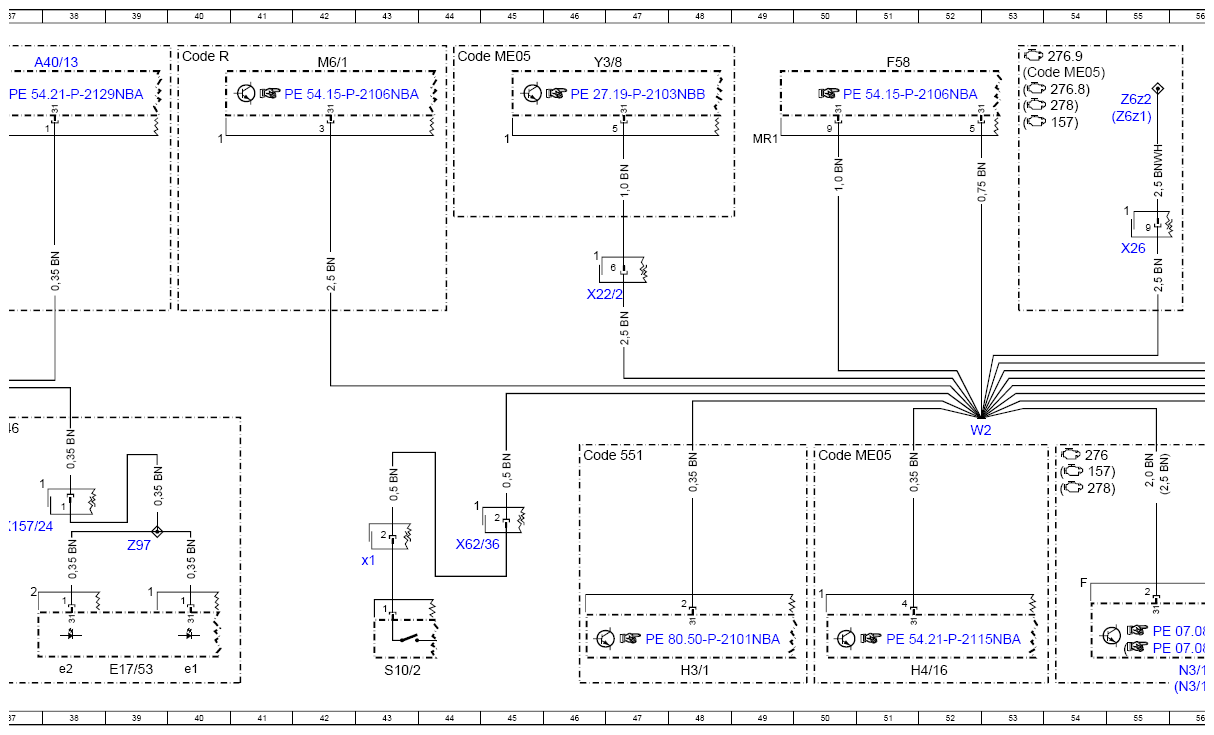

| W2 | Right front ground point at lamp unit | 52G |

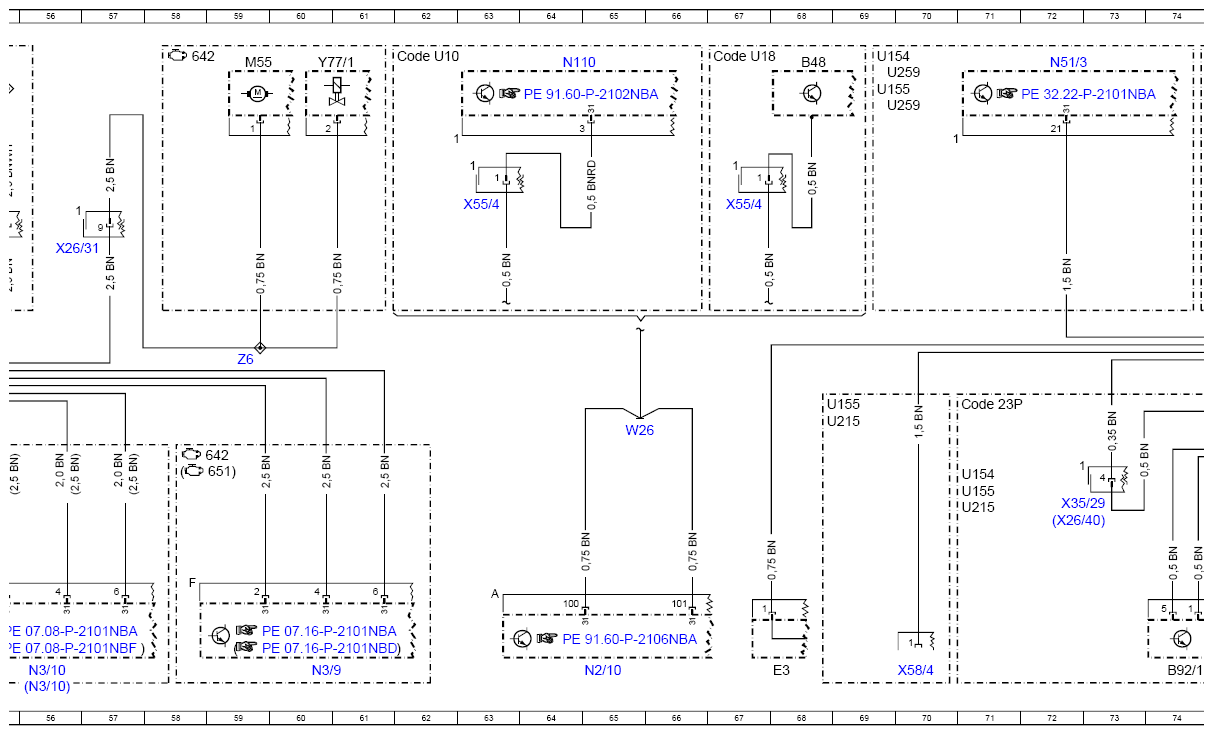

| W26 | SRS control unit ground point | 65G |

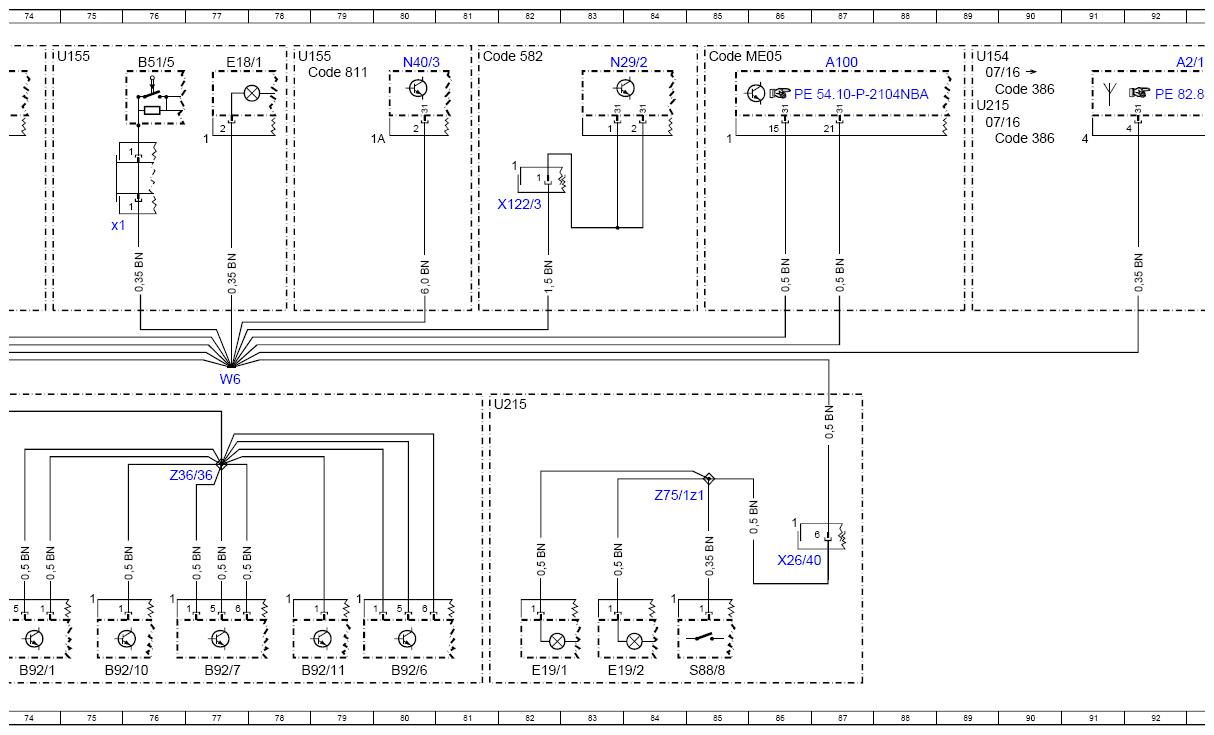

| W6 | Inner left D-pillar ground point | 77F |
| X122/3 | Rear air conditioning electrical connector | 82C |
| X157/24 | Left running board courtesy light electrical connector | 37J |
| X174/1 | Vehicle interior/front bumper electrical connector | 8J |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 46E |
| X26 | Interior and engine wiring harness electrical connector | 55D |
| X26/31 | Engine/engine compartment electrical connector | 56D |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 72J |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 86J |
| X35/1 | Driver door electrical connector | 33J |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 73H |
| X55/3 | Driver seat connector block | 26D |
| X55/4 | Front passenger seat connector block | 25D |
| X55/4 | Front passenger seat connector block | 63C |
| X55/4 | Front passenger seat connector block | 67C |
| X55/50 | Left rear display electrical connector | 33D |
| X58/28 | Electric-Brake-Control electrical connector | 16L |
| X58/4 | Load compartment socket | 70L |
| X62/36 | BWI [BBV]/rpm right front axle electrical connector | 44J |
| Y3/8 | Fully integrated transmission control unit | 46A |
| Y77/1 | Boost pressure positioner | 60A |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 77H |
| Z6 | Circuit 31 connector sleeve | 59F |
| Z6z1 | Circuit 31 connector sleeve | 55B |
| Z6z2 | Circuit 31 connector sleeve | 55B |
| Z75/1z1 | License plate lamp connector sleeve | 84H |
| Z97 | Left running board courtesy light circuit 31 connector sleeve | 39J |
