Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97NAC
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 W7, W9, W11, W17/6, Z2/1, Z2/2, Z6/8
| Code: | Designation: | Position: |
|---|---|---|

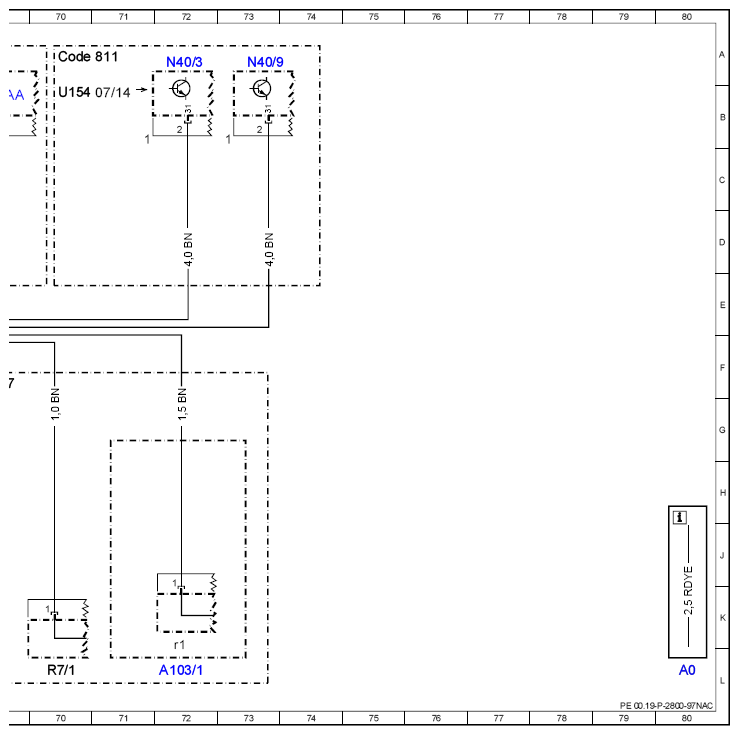

| A0 | Color code key | 80L |
| A103/1 | AdBlue® tank module | 63L |
| A103/1 | AdBlue® tank module | 72L |
| A103/1r1 | AdBlue® tank heating element | 63L |
| A103/1r1 | AdBlue® tank heating element | 72L |
| A103/1r2 | AdBlue® pressure line heating element | 61L |
| A103/1x1 | AdBlue® tank module electrical connector | 62H |
| A103/1x1 | AdBlue® tank module electrical connector | 64H |
| A103/1x4 | AdBlue® tank module pressure line heating element electrical connector 1 | 60H |
| A103/1x4 | AdBlue® tank module pressure line heating element electrical connector 1 | 63H |
| A103/2 | AdBlue® delivery module | 67L |
| A103/2r1 | AdBlue® delivery module heating element | 67L |
| A103/2z2 | Connector sleeve/delivery pump and heating element of AdBlue® delivery module | 66H |
| A6 | Stationary heater unit | 16A |
| A93/2 | Right 3rd seat row backrest release unit | 45A |
| B4/31 | Fuel quality sensor | 32L |
| B51/6 | Right pop-out window anti-pinch protection contact strip | 50A |
| B51/6x1 | Right pop-out window anti-pinch protection contact strip electrical connector | 50D |
| B76/1 | Condensation sensor for fuel filter with heating element | 7A |
| Code 228 | Stationary heater | 29G |
| Code 228 | Stationary heater | 29H |
| Code 228 | Stationary heater | 13A |
| Code 550 | Trailer hitch | 56A |
| Code 580 | Automatic air conditioning | 25A |
| Code 581 | Comfort automatic air conditioning | 25A |
| Code 811 | Extended sound system | 70A |
| Code 890 | Tailgate control | 51A |
| Code 929 | Engine for ethanol fuel | 31G |
| Code B03 | ECO start/stop function | 55H |
| Code U42 | BlueTEC® diesel exhaust treatment | 59F |
| Code U42 | BlueTEC® diesel exhaust treatment | 61A |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 68F |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 61A |
| Code U80 | 115 V socket | 38G |
| E1 | Left front lamp unit | 27L |
| F4 | Rear fuse box | 68A |
| K114 | ECO start/stop function additional battery relay | 56L |
| M13/5 | Coolant circulation pump | 27A |
| M14/10 | Tank cap central locking actuator | 53L |
| M5/2 | Headlamp cleaning system pump | 22A |
| M6/1 | Wiper motor | 24A |
| N118 | Fuel pump control unit | 35L |
| N118/5 | AdBlue® control unit | 64A |
| N121/1 | Tailgate control unit | 54A |
| N128 | Electric parking brake control unit | 34A |
| N14/3 | Glow output stage | 3A |
| N24/3 | DC/AC converter control unit | 39L |
| N28/1 | Trailer recognition control unit | 58A |
| N40/3 | Sound system amplifier control unit | 72A |
| N40/9 | Bass speaker amplifier | 73A |
| N69/4 | Right rear door control unit | 38A |
| N71/1 | Headlamp control unit | 10A |
| N88 | Tire pressure monitor control unit | 30A |
| R2/10 | Wiper park heater | 24L |
| R2/11 | Spray nozzle hose heater | 22L |
| R4 | Spark plugs | 2L |
| R4 | Spark plugs | 8L |
| R4 | Spark plugs | 3L |
| R4 | Spark plugs | 4L |
| R4 | Spark plugs | 6L |
| R4 | Spark plugs | 7L |
| R4 | Spark plugs | 15L |
| R4 | Spark plugs | 12L |
| R4 | Spark plugs | 10L |
| R4 | Spark plugs | 18L |
| R4 | Spark plugs | 16L |
| R7/1 | AdBlue® pressure line heating element | 70L |
| S10/4 | Right rear brake wear sensor | 42L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 42K |
| S158/5 | Left 3rd seat row folding backrest switch (load compartment) | 48A |
| S158/8 | Right 3rd seat row folding backrest switch (load compartment) | 49A |
| S68/14 | Center rear seat belt buckle switch | 49L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 49K |
| S68/16 | Left third row seat belt buckle switch | 41A |
| S68/17 | Right third row seat belt buckle switch | 43A |
| S68/5 | Left rear seat belt buckle switch | 48L |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 48K |
| S68/6 | Right rear seat belt buckle switch | 51L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 50K |
| T1/1 | Cylinder 1 ignition coil | 15K |
| T1/1 | Cylinder 1 ignition coil | 1K |
| T1/2 | Cylinder 2 ignition coil | 3K |
| T1/2 | Cylinder 2 ignition coil | 16K |
| T1/3 | Cylinder 3 ignition coil | 4K |
| T1/3 | Cylinder 3 ignition coil | 18K |
| T1/4 | Cylinder 4 ignition coil | 5K |
| T1/5 | Cylinder 5 ignition coil | 7K |
| T1/6 | Cylinder 6 ignition coil | 8K |
| T1/7 | Cylinder 7 ignition coil | 10K |
| T1/8 | Cylinder 8 ignition coil | 11K |
| U1018 | Valid for gasoline engine 276 | 13G |
| U1032 | Valid for engine 278 and 157 | 1G |
| U108 | Valid for rear seat belt buckles | 47H |
| U12 | Valid for left-hand drive vehicles | 23A |
| U13 | Valid for right-hand drive vehicles | 8A |
| U154 | Valid for 166.0 | 36A |
| U154 | Valid for 166.0 | 43G |
| U154 | Valid for 166.0 | 54G |
| U154 | Valid for 166.0 | 70B |
| U154 | Valid for 166.0 | 66A |
| U155 | Valid for 166.8 | 40A |
| U28 | Valid for headlamp cleaning system | 21A |
| U501 | Valid for xenon headlamps | 25G |
| U501 | Valid for xenon headlamps | 8A |
| U679 | Valid for version without xenon headlamps | 25H |
| U708 | Valid for spray nozzle hose heater | 22G |
| U74 | Valid for diesel engines | 29H |
| U74 | Valid for diesel engines | 33H |
| U75 | Valid for gasoline engines | 29H |
| U75 | Valid for gasoline engines | 34G |
| U880 | Valid for engine 642 | 1A |
| U948 | Valid for diesel engine 651 | 1A |
| U948 | Valid for diesel engine 651 | 6A |

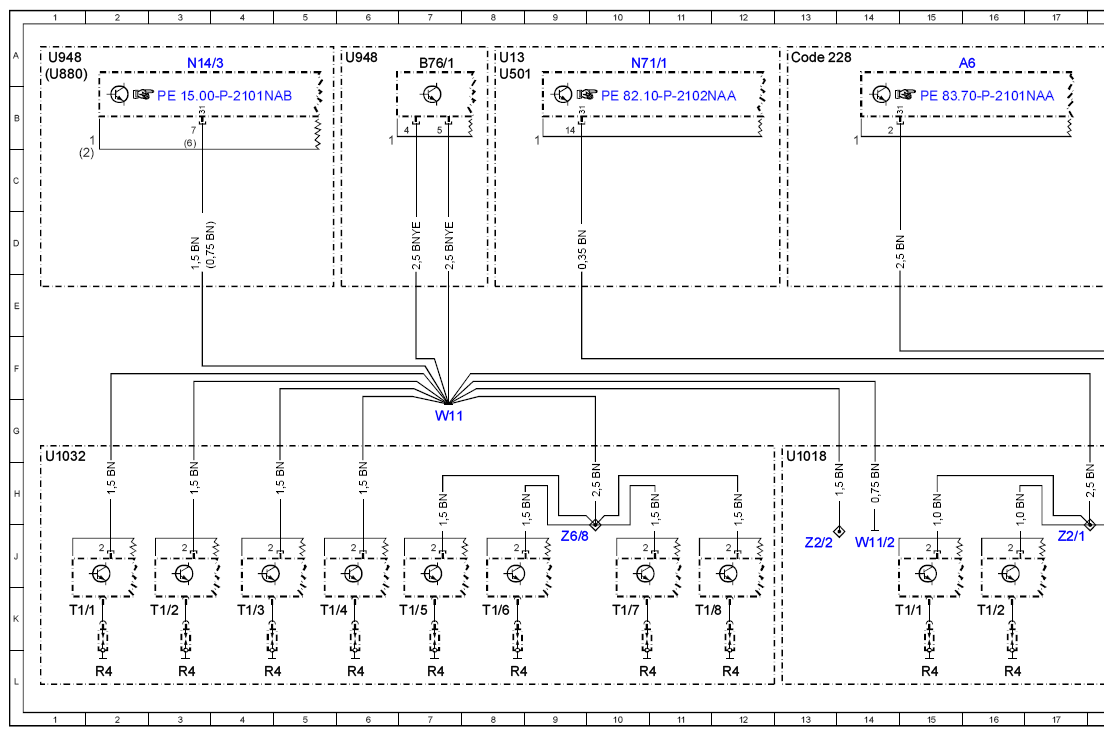

| W11 | Combustion engine ground point | 7G |
| W11/2 | Right combustion engine ground point | 14J |

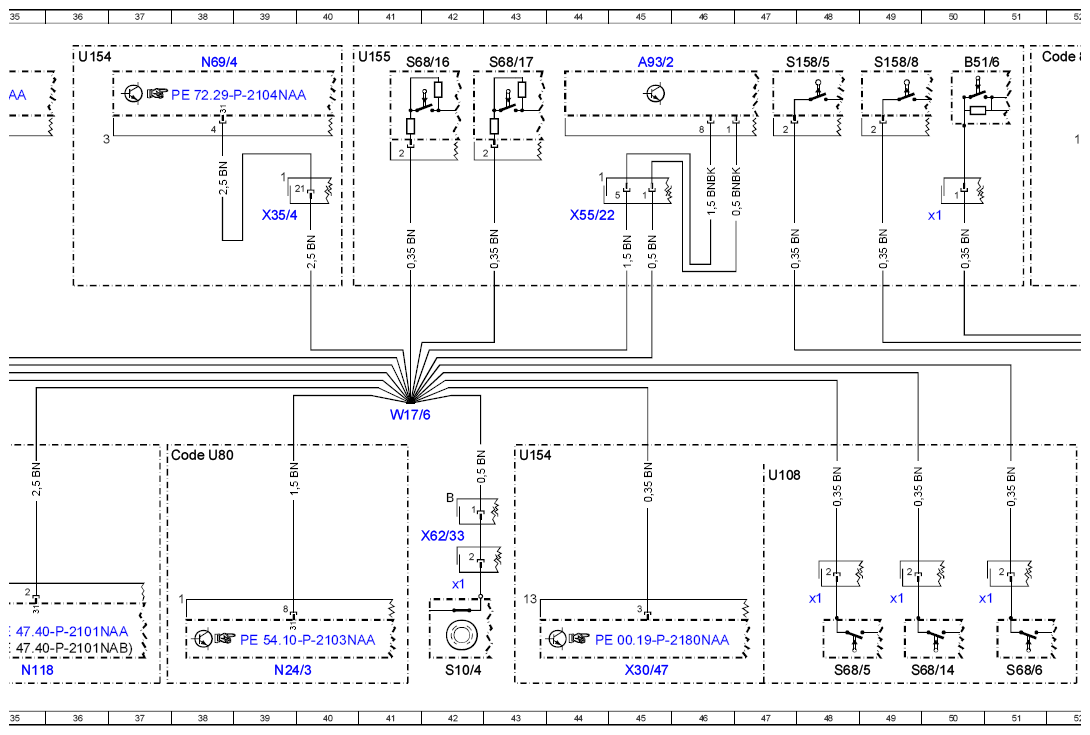

| W17/6 | Rear seat crossmember ground point | 41G |

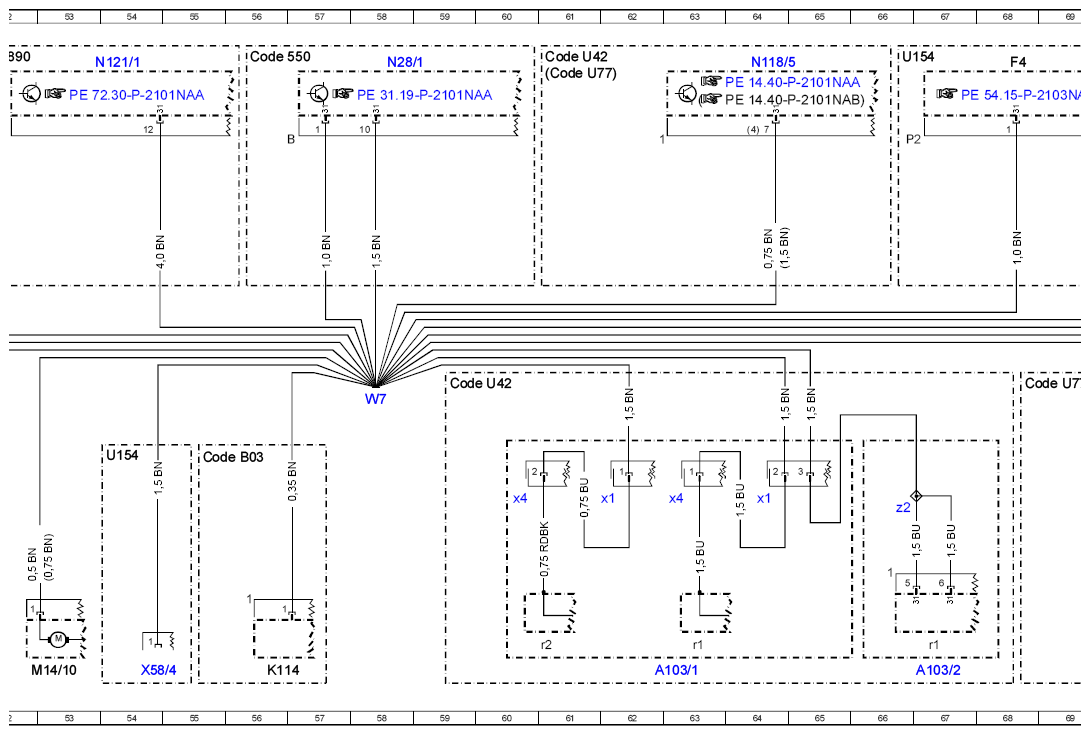

| W7 | Right rear center section ground point | 58G |

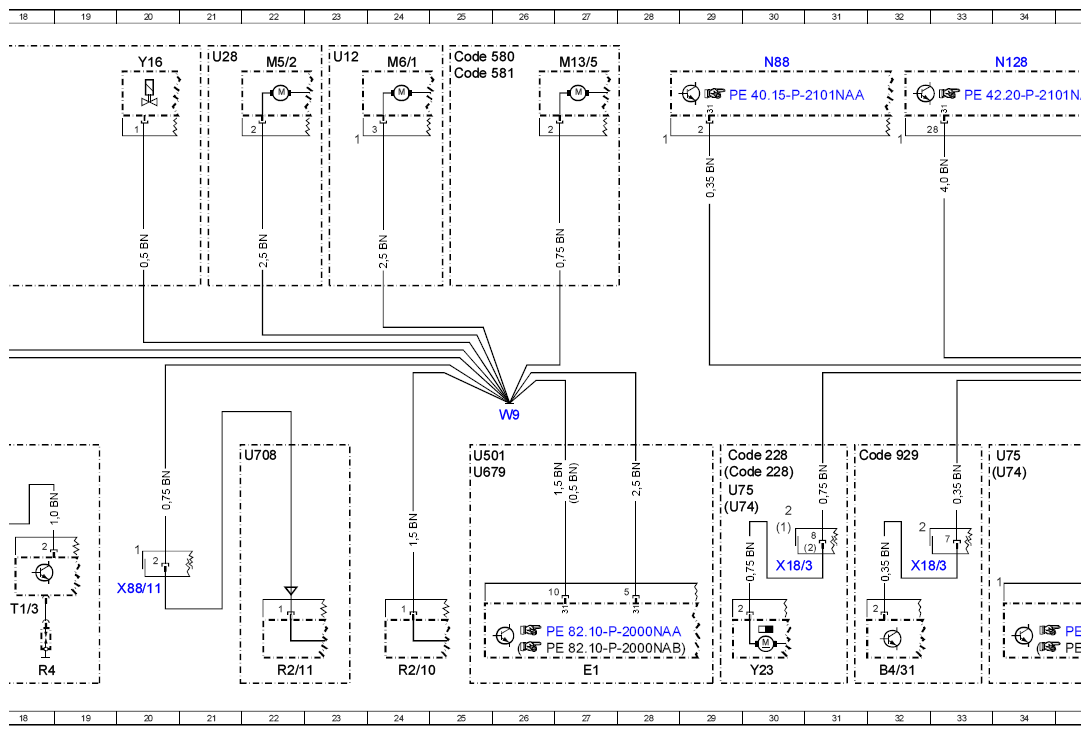

| W9 | Left front ground point (at lamp unit) | 26G |
| X18/3 | Vehicle interior/fuel tank electrical connector | 30J |
| X18/3 | Vehicle interior/fuel tank electrical connector | 32J |
| X30/47 | Telematics CAN voltage distributor electrical connector | 45L |
| X35/4 | Right rear door electrical connector | 39D |
| X55/22 | Right 3rd seat row connector block | 44D |
| X58/4 | Load compartment socket | 54L |
| X62/33 | Rear axle electrical connector, right distributor | 42J |
| X88/11 | Spray nozzle heater electrical connector | 20K |
| Y16 | Stationary heater switchover valve | 20A |
| Y23 | Stationary heater fuel pump | 30L |
| Z2/1 | Right engine ground connector sleeve | 17J |
| Z2/2 | Left engine ground connector sleeve | 13J |
| Z6/8 | Sensor ground connector sleeve | 9J |
