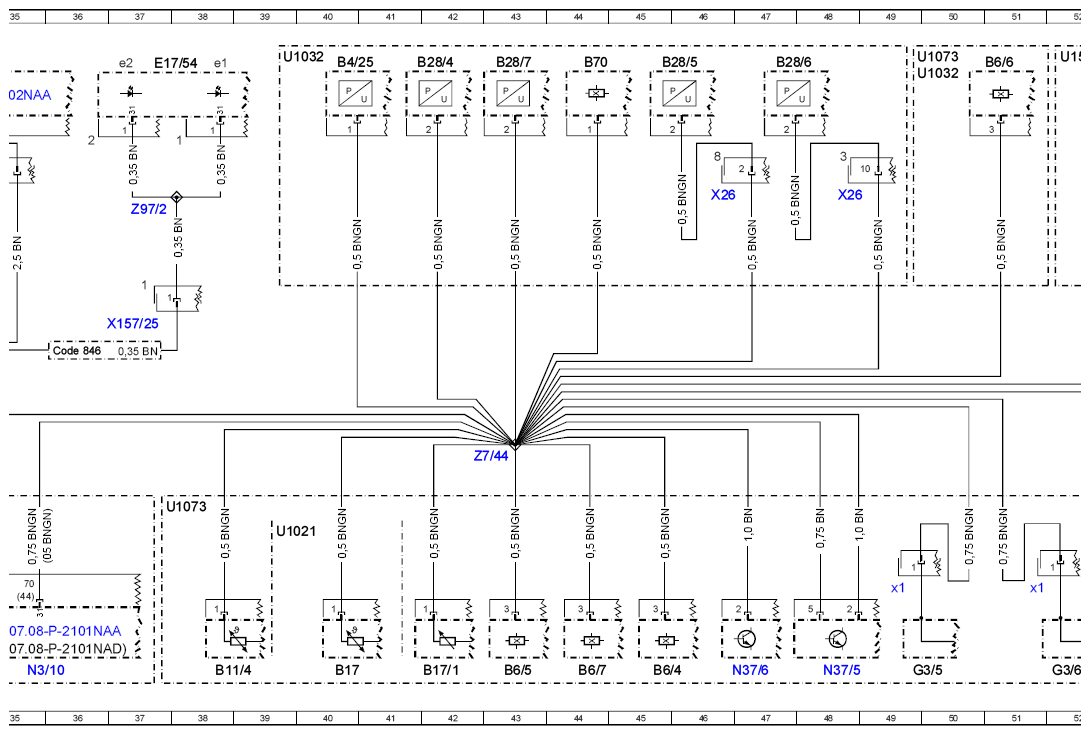

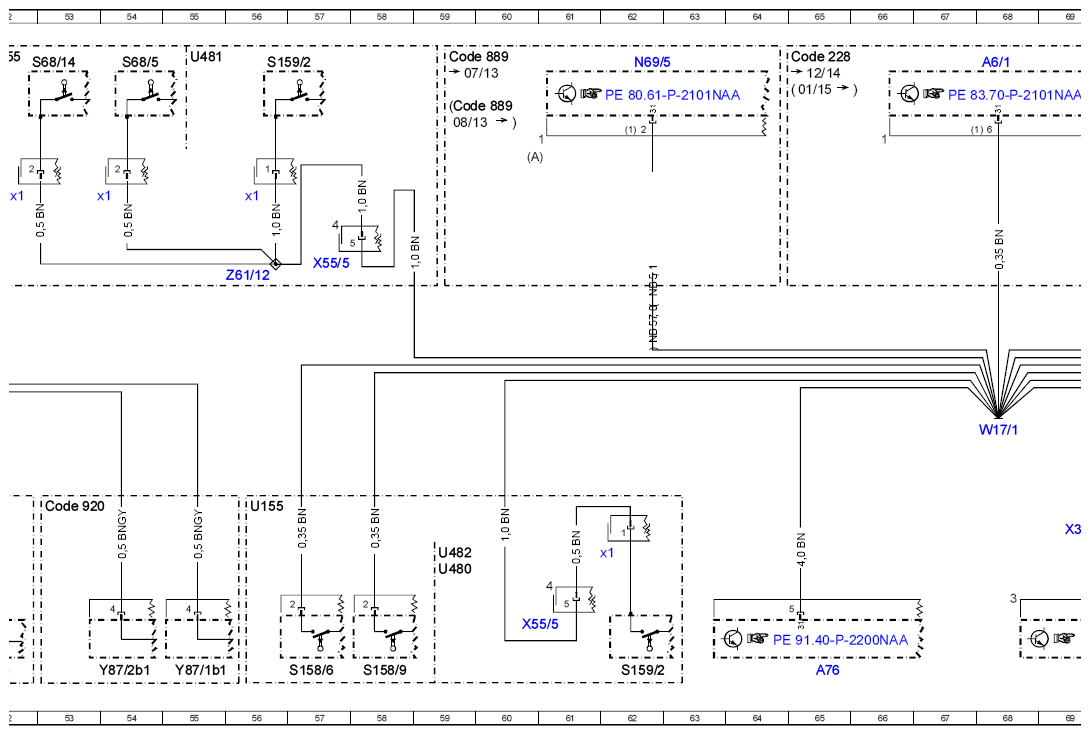

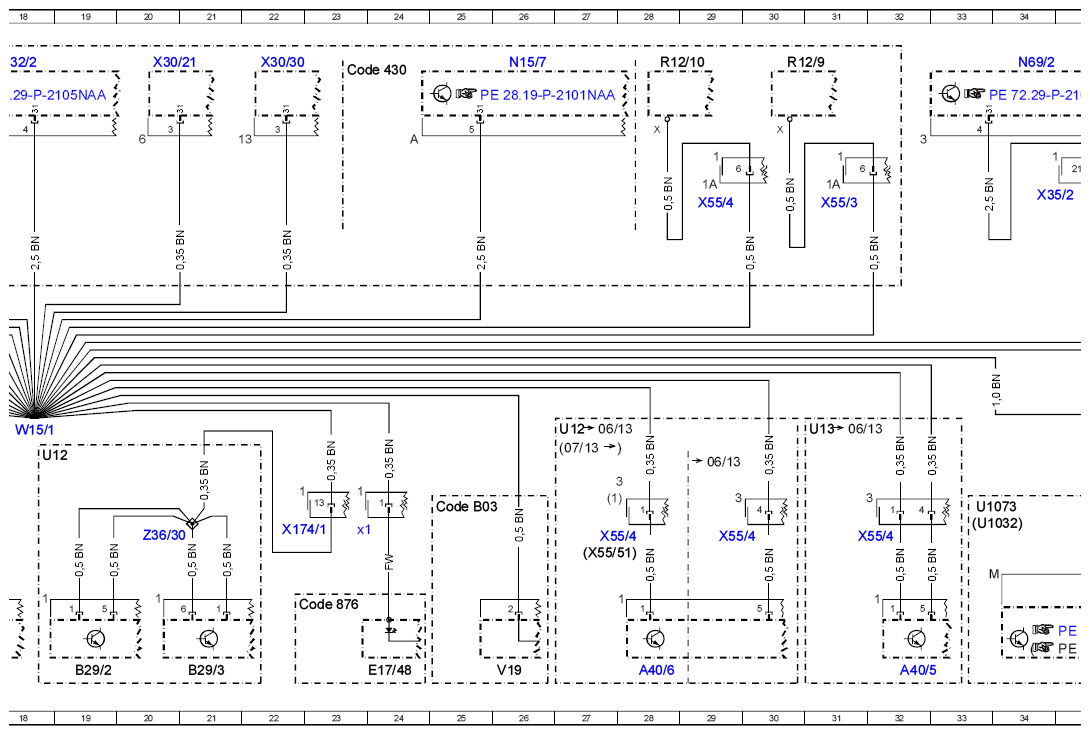

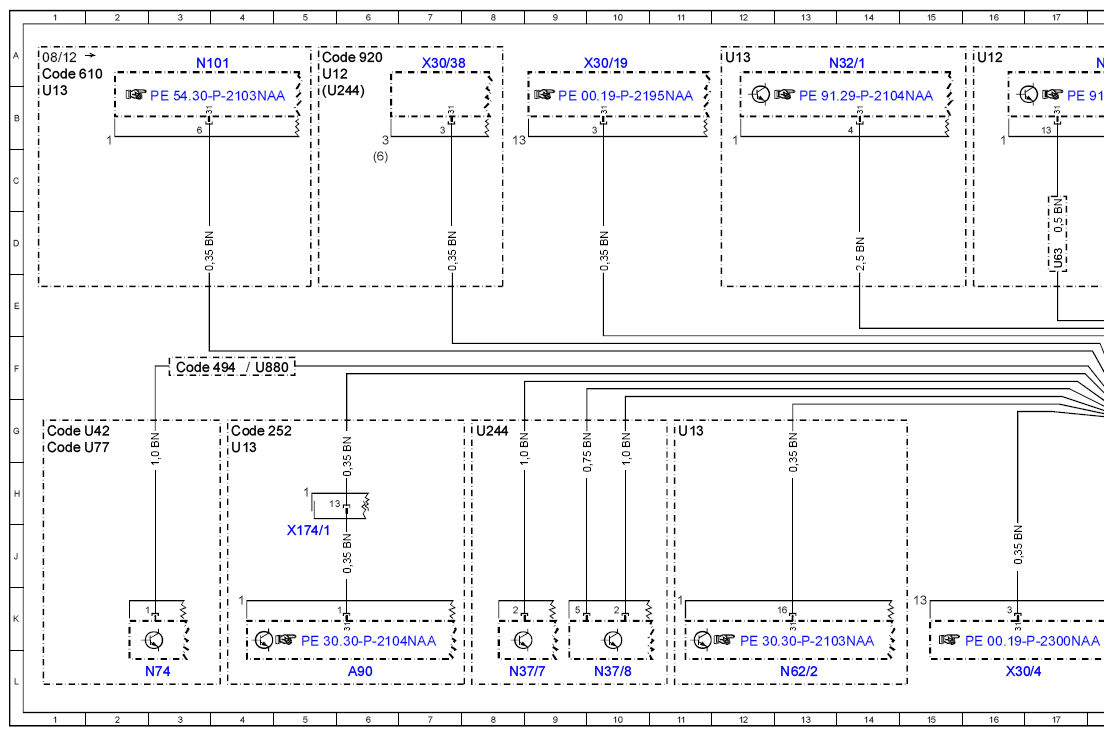

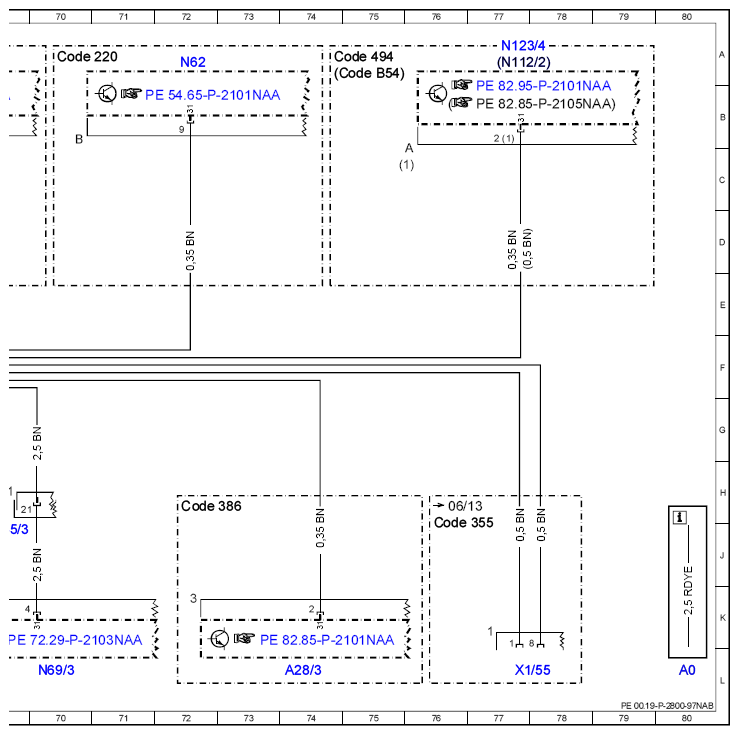

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97NAB
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 W15/1, W17/1, Z7/44, Z36/30 (LHD), Z61/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 74L |
| A40/5 | Left rear display | 32L |
| A40/6 | Right rear display | 28L |
| A6/1 | Stationary heater radio remote control receiver | 68A |
| A76 | Left front reversible emergency tensioning retractor | 65L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 6L |
| B11/4 | Coolant temperature sensor | 38L |
| B17 | Intake air temperature sensor | 40L |
| B17/1 | Intake manifold intake air temperature sensor | 42L |
| B28/4 | Pressure sensor downstream of left cylinder bank air filter | 42A |
| B28/5 | Pressure sensor downstream of air filter | 45A |
| B28/6 | Pressure sensor upstream of throttle valve | 47A |
| B28/7 | Pressure sensor downstream of throttle valve | 43A |
| B29/2 | DISTRONIC sensor (DTR)/left front bumper | 19L |
| B29/3 | DISTRONIC sensor (DTR)/right front bumper | 21L |
| B4/25 | Fuel tank pressure and temperature sensor | 40A |
| B6/4 | Left intake camshaft Hall sensor | 45L |
| B6/5 | Right intake camshaft Hall sensor | 43L |
| B6/6 | Left exhaust camshaft Hall sensor | 51A |
| B6/7 | Right exhaust camshaft Hall sensor | 44L |
| B70 | Crankshaft Hall sensor | 44A |
| Code 220 | PARKTRONIC | 70A |
| Code 228 | Stationary heater | 65A |
| Code 252 | COLLISION PREVENTION ASSIST | 4G |
| Code 355 | Preinstallation for navigation retrofit | 76J |
| Code 386 | Comfort telephony | 72H |
| Code 430 | On-road/off-road package | 23A |
| Code 494 | USA version | 3F |
| Code 494 | USA version | 74A |
| Code 610 | Night View Assist | 1A |
| Code 846 | Running boards | 36F |
| Code 876 | Interior lights package | 22K |
| Code 889 | KEYLESS-GO | 59A |
| Code 889 | KEYLESS-GO | 59B |
| Code 920 | Gasoline direct injection with stratified charge | 5A |
| Code 920 | Gasoline direct injection with stratified charge | 53H |
| Code B03 | ECO start/stop function | 25H |
| Code B54 | Live Traffic Information | 74A |
| Code U42 | BlueTEC® diesel exhaust treatment | 1G |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 1G |
| E17/48 | Right front illuminated door sill molding | 24L |
| E17/48x1 | Right front illuminated door sill molding electrical connector | 23J |
| E17/54 | Right running board courtesy light | 37A |
| E17/54e1 | Right rear running board courtesy light | 38A |
| E17/54e2 | Right front running board courtesy light | 37A |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 49L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 49K |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 52L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 51K |
| N101 | Night View Assist control unit | 3A |
| N112/2 | Telematics services communication module | 77A |
| N123/4 | Emergency call system control unit | 77A |
| N15/7 | Transfer case control unit | 26A |
| N3/10 | ME-SFI [ME] control unit | 35L |
| N32/1 | Driver seat control unit | 14A |
| N32/2 | Front passenger seat control unit | 18A |
| N37/5 | Left NOx sensor control unit | 48L |
| N37/6 | Right NOx sensor control unit | 47L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 8L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 10L |
| N62 | Parking system control unit | 72A |
| N62/2 | Video and radar sensor system control unit | 13L |
| N69/2 | Right front door control unit | 34A |
| N69/3 | Left rear door control unit | 70L |
| N69/5 | KEYLESS-GO control unit | 62A |
| N74 | Soot particulate sensor control unit | 3L |
| R12/10 | Front passenger sidebag squib | 28A |
| R12/9 | Driver sidebag squib | 30A |
| S158/6 | Left 3rd seat row folding backrest switch (left 2nd seat row) | 57L |
| S158/9 | Right 3rd seat row folding backrest switch (left 2nd seat row) | 58L |
| S159/2 | Left 2nd seat row easy entry/exit switch | 62L |
| S159/2 | Left 2nd seat row easy entry/exit switch | 56A |
| S159/2x1 | Left 2nd seat row easy entry/exit switch electrical connector | 62J |
| S159/2x1 | Left 2nd seat row easy entry/exit switch electrical connector | 56C |
| S68/14 | Center rear seat belt buckle switch | 53A |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 52C |
| S68/5 | Left rear seat belt buckle switch | 54A |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 54C |
| U1021 | Not valid for gasoline engine with stratified operation | 39J |
| U1032 | Valid for engine 278 and 157 | 33J |
| U1032 | Valid for engine 278 and 157 | 39A |
| U1032 | Valid for engine 278 and 157 | 49A |
| U1073 | Valid for gasoline engine 276.9 | 33H |
| U1073 | Valid for gasoline engine 276.9 | 37H |
| U1073 | Valid for gasoline engine 276.9 | 49A |
| U12 | Valid for left-hand drive vehicles | 18G |
| U12 | Valid for left-hand drive vehicles | 27G |
| U12 | Valid for left-hand drive vehicles | 5A |
| U12 | Valid for left-hand drive vehicles | 16A |
| U13 | Valid for right-hand drive vehicles | 4G |
| U13 | Valid for right-hand drive vehicles | 11G |
| U13 | Valid for right-hand drive vehicles | 31G |
| U13 | Valid for right-hand drive vehicles | 1B |
| U13 | Valid for right-hand drive vehicles | 12A |
| U155 | Valid for 166.8 | 56H |
| U155 | Valid for 166.8 | 52A |
| U244 | Valid for BlueTEC | 8G |
| U244 | Valid for BlueTEC | 5B |
| U480 | Not valid for rear seat belt status indication | 59J |
| U481 | Valid for rear seat belt status indication | 55A |
| U482 | Not valid for code 843 Electrical EASY-ENTRY | 59J |
| U63 | Valid for seat adjustment without memory function | 17D |
| U880 | Valid for engine 642 | 4F |
| V19 | ECO start/stop function diode | 26L |
| W15/1 | Right footwell ground point | 18G |
| W17/1 | Left rear seat ground point | 68G |
| X1/55 | External navigation electrical connector | 77L |
| X157/25 | Right running board courtesy light electrical connector | 37E |
| X174/1 | Vehicle interior/front bumper electrical connector | 5J |
| X174/1 | Vehicle interior/front bumper electrical connector | 22J |
| X26 | Interior and engine wiring harness electrical connector | 46C |
| X26 | Interior and engine wiring harness electrical connector | 48C |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 10A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 20A |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 22A |
| X30/38 | Potential distributor electrical connector (CAN I) | 7A |
| X30/4 | Right potential distributor electrical connector (CAN) | 16L |
| X35/2 | Right front door electrical connector | 35C |
| X35/3 | Left rear door electrical connector | 69J |
| X55/3 | Driver seat connector block | 31C |
| X55/4 | Front passenger seat connector block | 28J |
| X55/4 | Front passenger seat connector block | 29J |
| X55/4 | Front passenger seat connector block | 32J |
| X55/4 | Front passenger seat connector block | 29C |
| X55/5 | Left rear seat adjustment connector block | 61K |
| X55/5 | Left rear seat adjustment connector block | 57D |
| X55/51 | Right rear display electrical connector | 27J |
| Y87/1b1 | Right exhaust gas recirculation Hall sensor | 55L |
| Y87/2b1 | Left exhaust gas recirculation Hall sensor | 54L |
| Z36/30 | Short range radar front sensor ground connector sleeve | 20J |
| Z61/12 | Left circuit 31 2nd seat row connector sleeve | 56E |
| Z7/44 | Sensor ground connector sleeve | 43G |
| Z97/2 | Right running board courtesy light circuit 31 connector sleeve | 37D |
