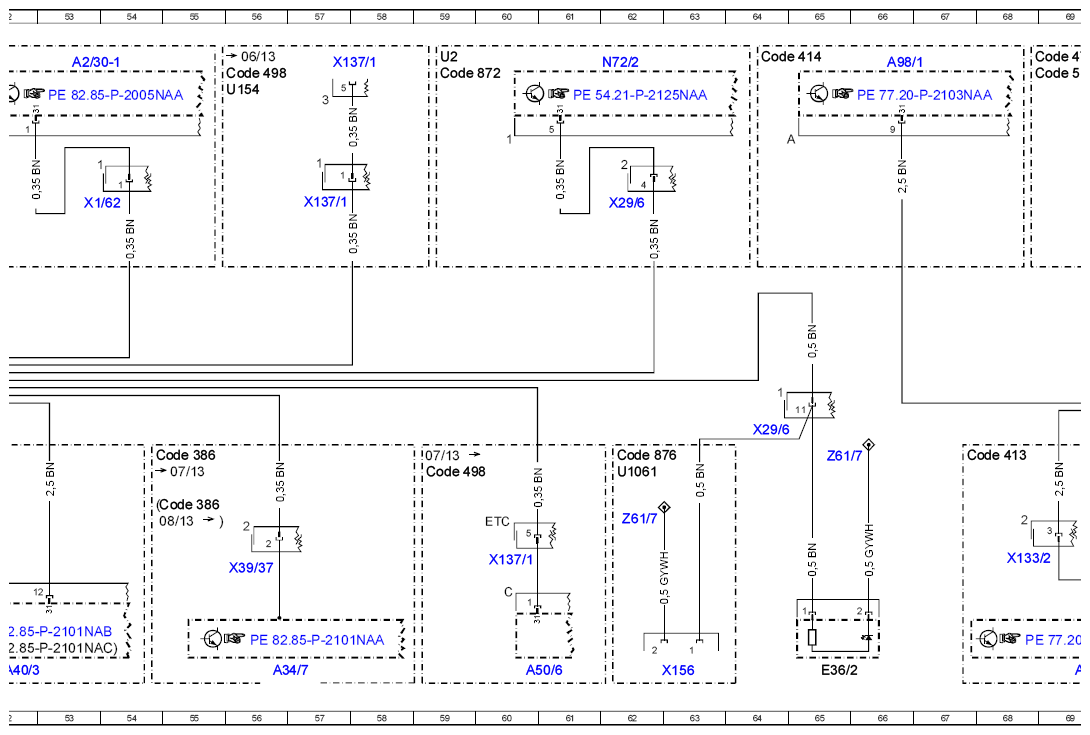

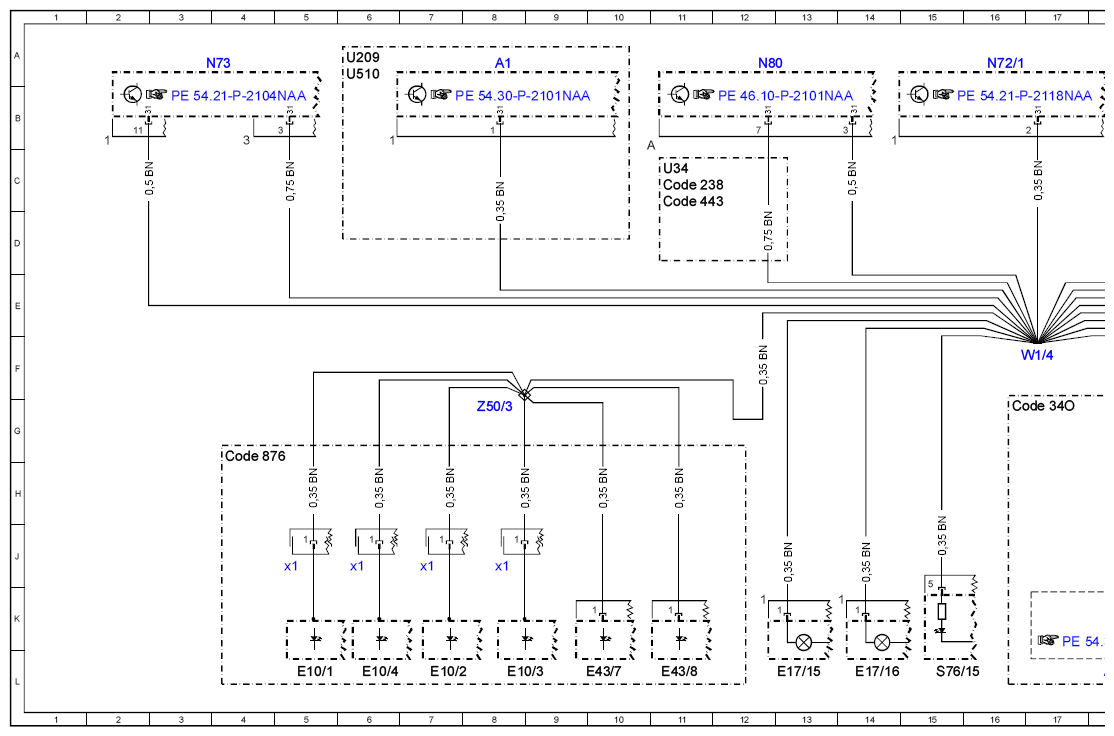

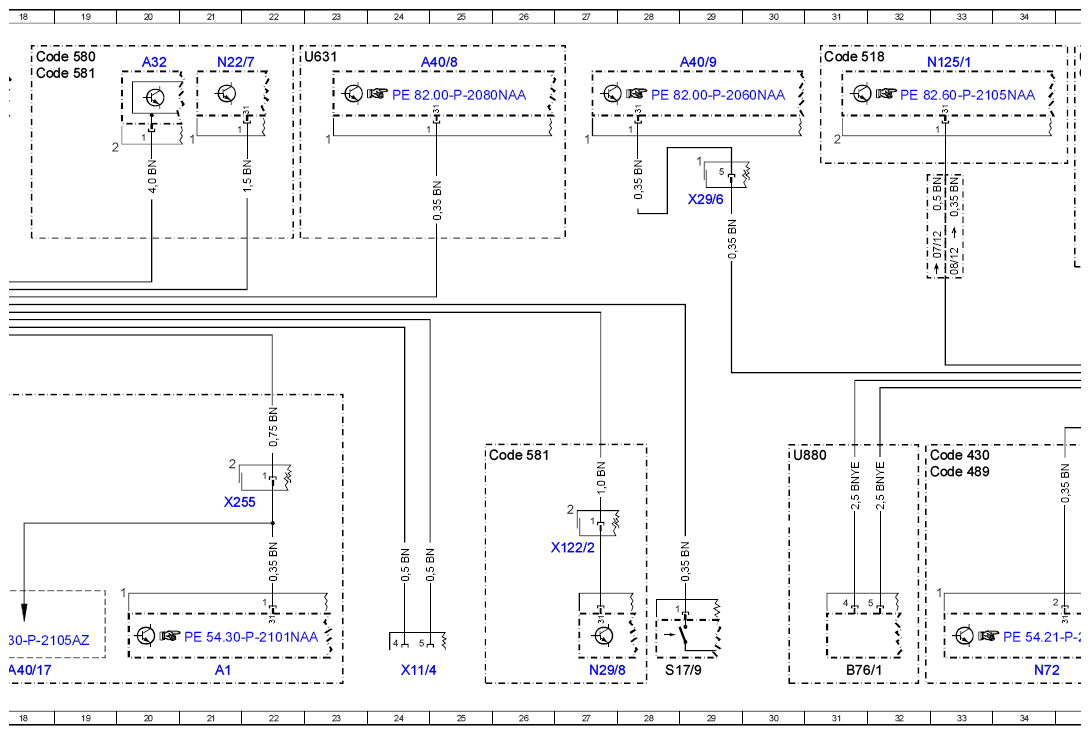

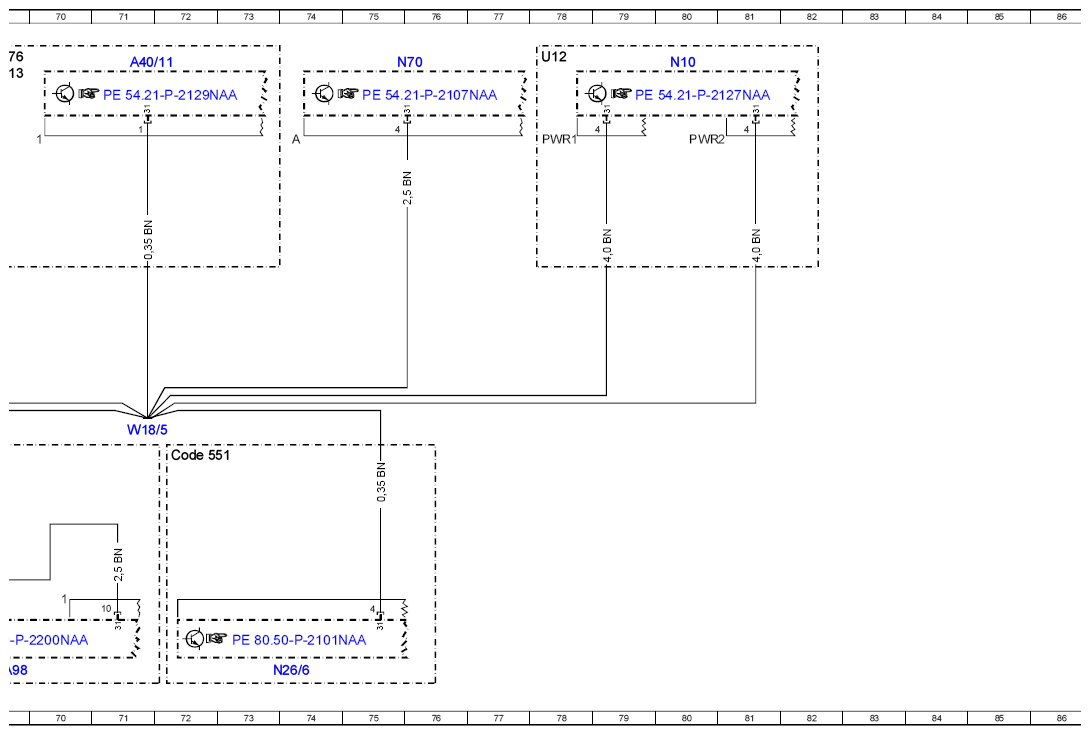

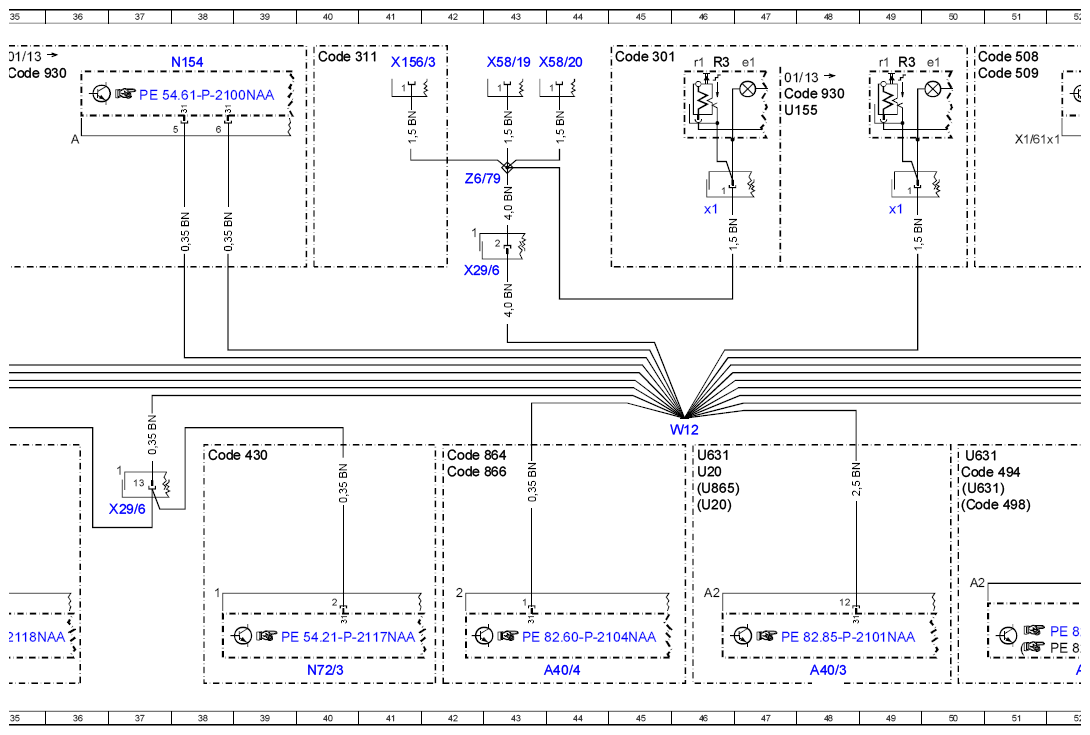

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 W1/4, W12, W18/5, Z50/3, Z6/79

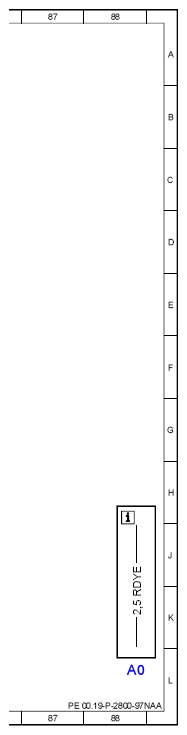

| A0 | Color code key | 88L |
| A1 | Instrument cluster | 8A |
| A1 | Instrument cluster | 21L |
| A2/30-1 | Cradle for navigation module | 53A |
| A32 | AC housing | 20A |
| A34/7 | Bluetooth® module | 56L |
| A40/11 | Multifunction camera | 71A |
| A40/17 | Head-up display, retrofit | 18L |
| A40/3 | COMAND control unit | 48L |
| A40/3 | COMAND control unit | 52L |
| A40/4 | DVD player | 44L |
| A40/8 | Audio/COMAND display | 25A |
| A40/9 | Audio/COMAND control panel | 29A |
| A50/6 | Dedicated Short-Range Communications control unit | 60L |
| A98 | Panoramic sliding roof control module | 69L |
| A98/1 | Sliding roof control module | 66A |
| B76/1 | Condensation sensor for fuel filter with heating element | 31L |
| Code 238 | Active Lane Keeping Assist | 11C |
| Code 301 | Ashtray in place of stowage compartment with flap and power outlet | 45A |
| Code 311 | Temperature-controlled cup holder | 40A |
| Code 340 | Frontal display accessory (head-up display) | 16G |
| Code 386 | Comfort telephony | 54H |
| Code 386 | Comfort telephony | 54G |
| Code 413 | Panoramic sliding sunroof | 67G |
| Code 414 | Glass electric sliding roof | 64A |
| Code 430 | On-road/off-road package | 38G |
| Code 430 | On-road/off-road package | 32G |
| Code 443 | Steering wheel heater | 11C |
| Code 476 | Lane Keeping Assist | 68A |
| Code 489 | AIRMATIC | 32H |
| Code 494 | USA version | 50H |
| Code 498 | Japan version | 50H |
| Code 498 | Japan version | 56A |
| Code 498 | Japan version | 59H |
| Code 508 | Navigation module preinstallation | 50A |
| Code 509 | Navigation module | 50A |
| Code 513 | Traffic sign recognition | 68A |
| Code 518 | Media Interface | 31A |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 72G |
| Code 580 | Air conditioning | 18A |
| Code 581 | Automatic air conditioning | 25G |
| Code 581 | Automatic air conditioning | 18A |
| Code 864 | Rear compartment entertainment | 42G |
| Code 866 | Rear entertainment preinstallation | 42H |
| Code 872 | Left and right rear seat heaters | 59A |
| Code 876 | Interior lights package | 4G |
| Code 876 | Interior lights package | 62G |
| Code 930 | Tachograph preinstallation | 35A |
| Code 930 | Tachograph preinstallation | 47B |
| E10/1 | Left center air outlet symbol illumination | 5L |
| E10/1x1 | Center vent symbol illumination electrical connector | 5J |
| E10/2 | Left front side air outlet symbol illumination | 7L |
| E10/2x1 | Left front side vent symbol illumination electrical connector | 7J |
| E10/3 | Right front side air outlet symbol illumination | 8L |
| E10/3x1 | Right front side vent symbol illumination electrical connector | 8J |
| E10/4 | Right center air outlet symbol illumination | 6L |
| E10/4x1 | Right center vent symbol illumination electrical connector | 6J |
| E17/15 | Right front footwell lamp | 13L |
| E17/16 | Left front footwell lamp | 14L |
| E36/2 | Front center console illumination | 65L |
| E43/7 | Driver-side instrument panel ambiance illumination | 10L |
| E43/8 | Passenger-side instrument panel ambiance illumination | 11L |
| N10 | SAM control unit | 80A |
| N125/1 | Media interface control unit | 33A |
| N154 | Digital tachograph control unit | 38A |
| N22/7 | Automatic air conditioning control and operating unit | 21A |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 74L |
| N29/8 | Booster blower electronic blower controller | 27L |
| N70 | Overhead control panel control unit | 75A |
| N72 | Lower control panel control unit | 34L |
| N72/1 | Upper control panel control unit | 16A |
| N72/2 | RCP [HBF] control unit | 62A |
| N72/3 | Off-Road operating panel control unit | 40L |
| N73 | Electronic ignition switch control unit | 4A |
| N80 | Steering column module control unit | 12A |
| R3 | Front cigarette lighter with ashtray illumination | 46A |
| R3 | Front cigarette lighter with ashtray illumination | 49A |
| R3e1 | Ashtray illumination | 47A |
| R3e1 | Ashtray illumination | 50A |
| R3r1 | Cigarette lighter heating element | 46A |
| R3r1 | Cigarette lighter heating element | 49A |
| R3x1 | Electrical connector for cigarette lighter with ashtray illumination | 46D |
| R3x1 | Electrical connector for cigarette lighter with ashtray illumination | 49D |
| S17/9 | Glove box lamp switch | 28L |
| S76/15 | Electric parking brake switch | 15L |
| U1061 | Not valid for cup holder | 62H |
| U12 | Valid for left-hand drive vehicles | 78A |
| U154 | Valid for 166.0 | 56B |
| U155 | Valid for 166.8 | 47B |
| U2 | Valid for all except USA | 59A |
| U20 | Valid for all (except USA and Japan) | 46H |
| U20 | Valid for all (except USA and Japan) | 46H |
| U209 | Valid without code (340) Frontal display accessory (head-up display) | 6A |
| U34 | Valid for automatic lane recognition | 11C |
| U510 | 6A | |
| U631 | Valid for COMAND | 22A |
| U631 | Valid for COMAND | 50H |
| U631 | Valid for COMAND | 46G |
| U631 | Valid for COMAND | 50G |
| U865 | Valid for Audio 20 | 46H |
| U880 | Valid for engine 642 | 30G |
| W1/4 | Cockpit ground point | 17F |
| W12 | Ground point (center console) | 46G |
| W18/5 | Roof ground point | 71G |
| X1/62 | Vehicle interior electrical connector for navigation module/cradle for navigation module | 54C |
| X11/4 | Diagnostic connector | 24L |
| X122/2 | Rear air conditioning electrical connector | 27J |
| X133/2 | Sliding roof electrical connector | 68J |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 57C |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 57A |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 60J |
| X156 | Illuminated cup holder separation point | 63L |
| X156/3 | Cup holder connecting point | 41A |
| X255 | Instrument cluster and head-up display electrical connector, retrofit | 22H |
| X29/6 | Center console electrical connector | 37H |
| X29/6 | Center console electrical connector | 29C |
| X29/6 | Center console electrical connector | 42E |
| X29/6 | Center console electrical connector | 64G |
| X29/6 | Center console electrical connector | 62C |
| X39/37 | Mobile phone electrical connector | 56J |
| X58/19 | Left 2nd seat row socket | 43A |
| X58/20 | Right 2nd seat row socket | 44A |
| Z50/3 | Circuit 31 instrument panel connector sleeve | 8G |
| Z6/79 | Front center console circuit 31 connector sleeve | 42C |
| Z61/7 | Wiring harness connector sleeve for center console, terminal 58d | 62H |
| Z61/7 | Wiring harness connector sleeve for center console, terminal 58d | 65G |
