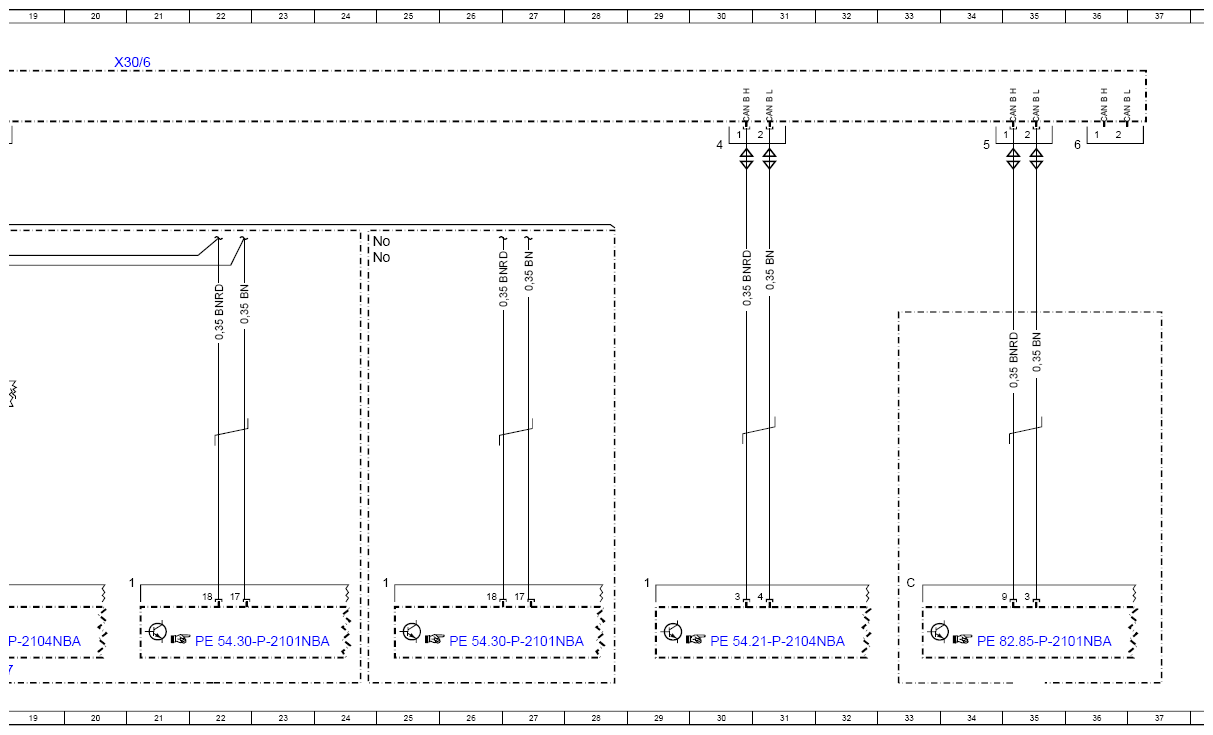

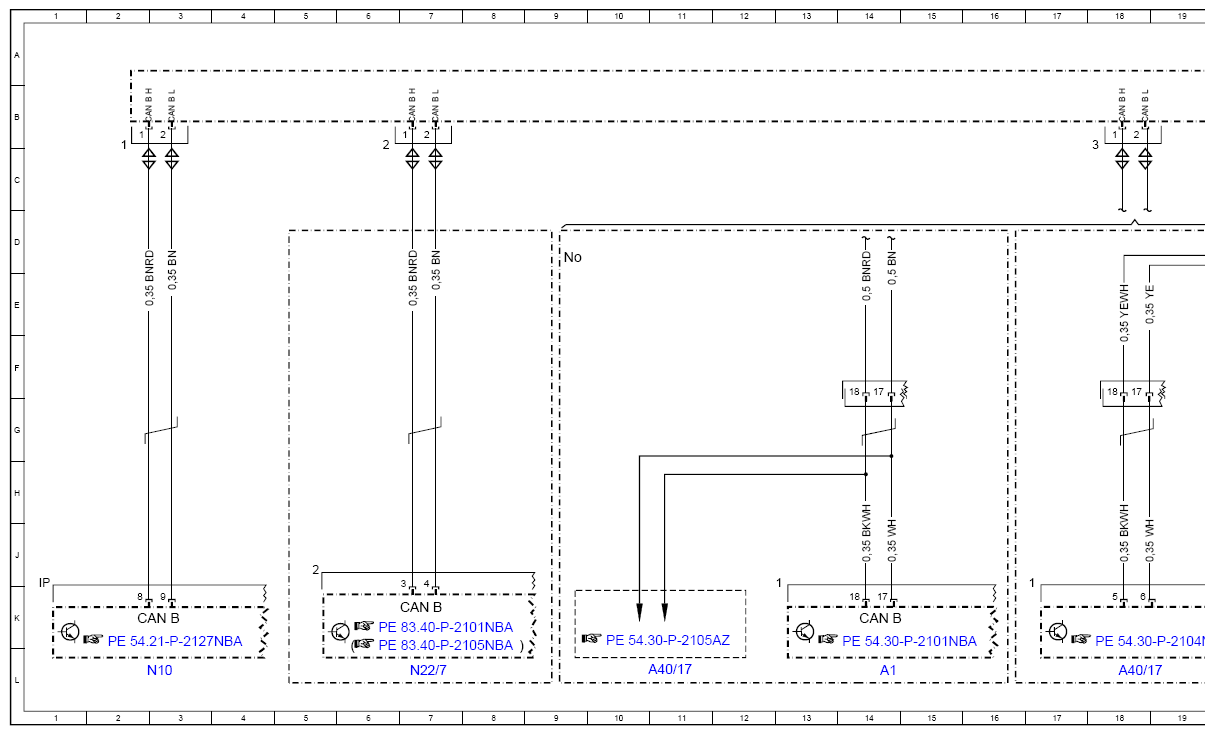

Wiring Diagram For Interior CAN Bus - PE00.19-P-2300-97NBC
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 Potential distributor X30/6
MODEL 292 Potential distributor X30/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A1 | Instrument cluster | 14L |
| A1 | Instrument cluster | 22L |
| A1 | Instrument cluster | 26L |
| A2 | Radio | |
| A40/17 | Head-up display, retrofit | 11L |
| A40/17 | Head-up display, retrofit | 18L |
| A40/3 | COMAND control unit | 35L |
| CAN B | Interior CAN | 7K |
| CAN B | Interior CAN | 3K |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 22K |
| CAN B | Interior CAN | 27K |
| CAN B | Interior CAN | 31K |
| CAN B | Interior CAN | 35K |
| Code 34O | Frontal display accessory (head-up display) | 10D |
| Code 34O | Frontal display accessory (head-up display) | 17D |
| Code 34O | Frontal display accessory (head-up display) | 25D |
| Code 505 | Radio 20 NTG5, non-navigation-capable | |
| Code 522 | Audio 20 radio | |
| Code 531 | COMAND APS | 33E |
| Code 580 | Air conditioning | 5D |
| Code 581 | Automatic air conditioning | |
| Code E75 | Head-up display | 17E |
| Code E75 | Head-up display | 10D |
| Code E75 | Head-up display | 25D |
| N10 | SAM control unit | 3L |
| N22/7 | Automatic air conditioning control and operating unit | 7L |
| N73 | Electronic ignition switch control unit | 31L |
| X255 | Instrument cluster and head-up display electrical connector | 13G |
| X255 | Instrument cluster and head-up display electrical connector | 18G |
| X30/6 | Cockpit potential distributor electrical connector (CAN) | 20A |
| X30/6 | Cockpit potential distributor electrical connector (CAN) | 21A |
| X30/6 | Cockpit potential distributor electrical connector (CAN) | 4A |
| X30/6 | Cockpit potential distributor electrical connector (CAN) | 12A |
| X30/6 | Cockpit potential distributor electrical connector (CAN) | 28A |
