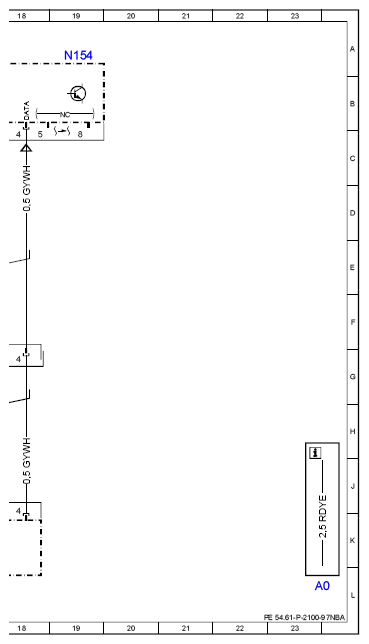

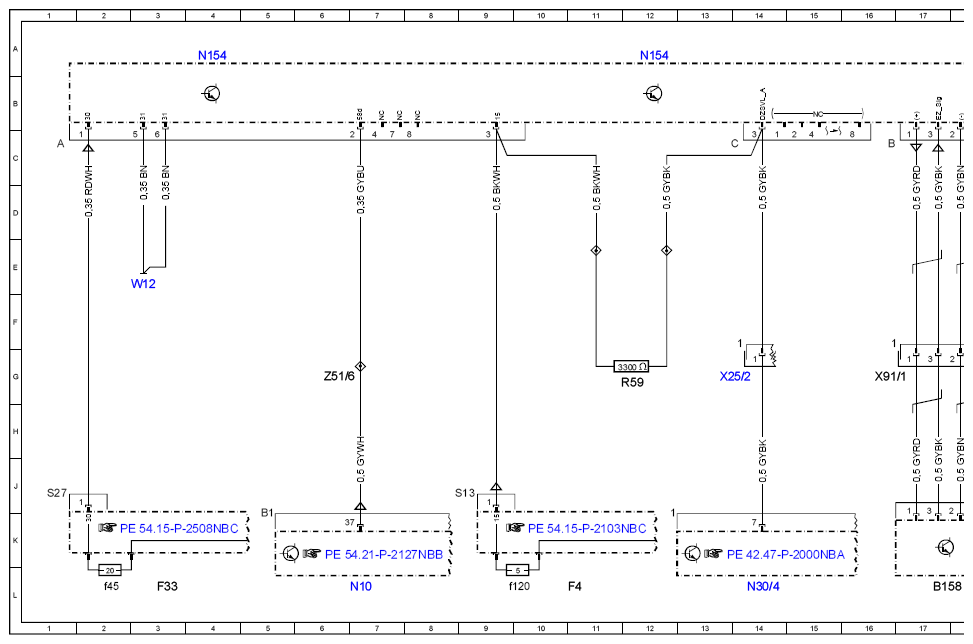

Wiring Diagram Tachograph - PE54.61-P-2100-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 with CODE 930 (Pre-installation for tachograph) Control unit N154
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| B158 | Digital tachograph distance and speed sensor | 17L |
| F33 | Battery compartment prefuse box | 3L |
| F33f45 | Fuse 45 | 2L |
| F4 | Rear fuse box | 11L |
| F4f120 | Fuse 120 | 10L |
| N10 | SAM control unit | 7L |
| N154 | Digital tachograph control unit | 4A |
| N154 | Digital tachograph control unit | 12A |
| N154 | Digital tachograph control unit | 19A |
| N30/4 | Electronic Stability Program control unit | 14L |
| R59 | Digital tachograph pull-up resistor | 12G |
| W12 | Ground point (center console) | 3E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 14G |
| X91/1 | Digital tachograph electrical connector | 16G |
| Z51/6 | Circuit 58d vehicle interior connector sleeve | 6G |
