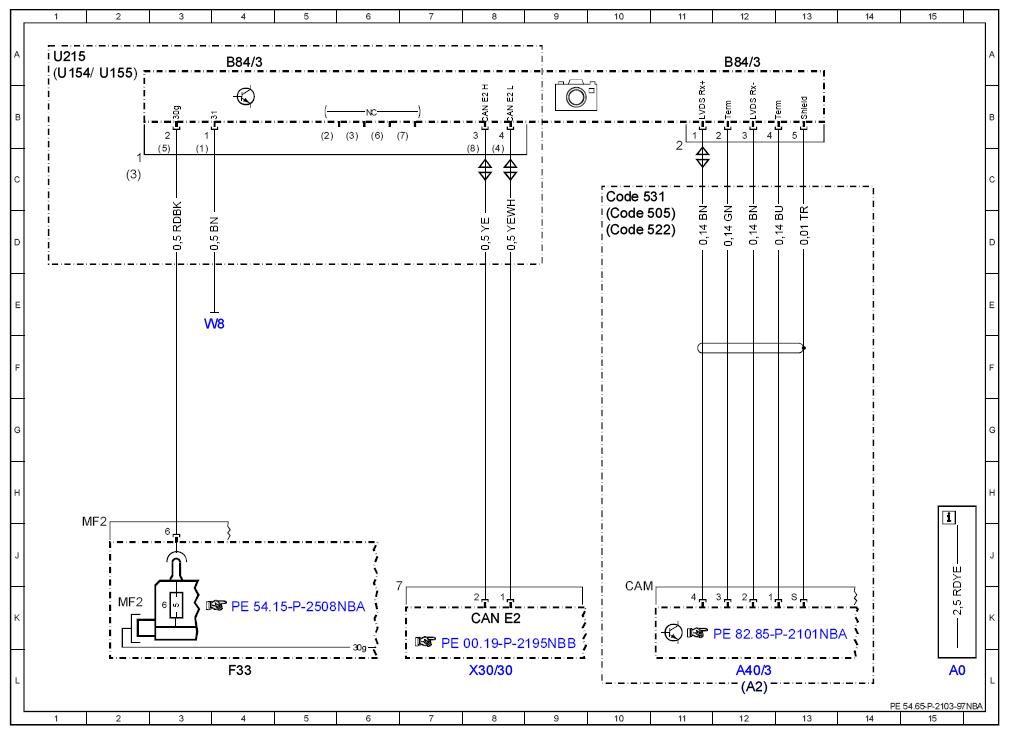

Wiring Diagram Of Reversing Camera - PE54.65-P-2103-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 with CODE 218 (Rear view camera) Reversing camera B84/3
MODEL 292 with CODE 218 (Rear view camera) Reversing camera B84/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A2 | Radio | 12L |
| A40/3 | COMAND control unit | 12L |
| B84/3 | Backup camera | 4A |
| B84/3 | Backup camera | 12A |
| CAN E2 | Chassis CAN 2 | 8K |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 10D |
| Code 522 | Audio 20 radio | 10D |
| Code 531 | COMAND APS | 10C |
| F33 | Battery compartment prefuse box | 4L |
| F33MF2 | Multiple fuse 2 | 2K |
| U154 | Valid for 166.0 | 1A |
| U155 | Valid for 166.8 | 2A |
| U215 | Valid for model series 292 | 1A |
| W8 | Liftgate ground point | 3E |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 8L |
