Wiring Diagram For Parktronic System (PTS) Control Unit - PE54.65-P-2101-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

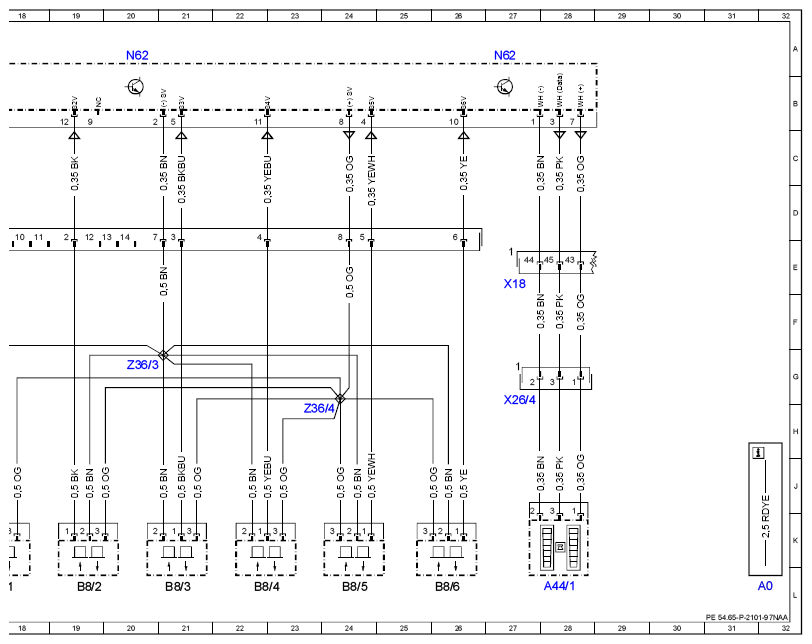

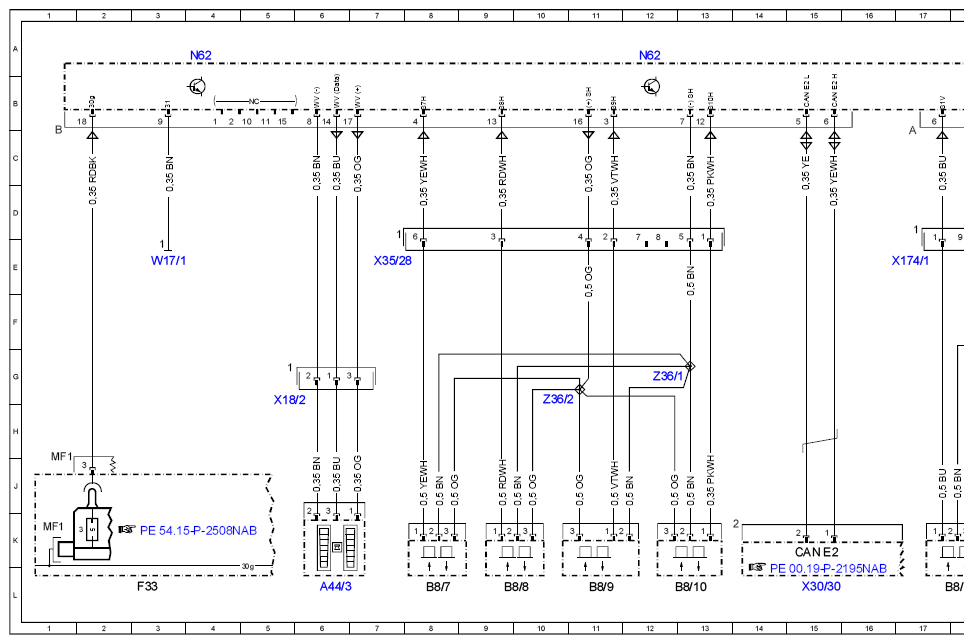

MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) with CODE 235 (Active Parking Assist with PARKTRONIC) Control unit N62
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A44/1 | Front parking system warning indicator | 28L |
| A44/3 | Rear parking system warning indicator | 6L |
| B8/1 | Outer left front parking system distance sensor | 18L |
| B8/10 | Outer left rear parking system distance sensor | 13L |
| B8/2 | Center left front parking system distance sensor | 19L |
| B8/3 | Inner left front parking system distance sensor | 21L |
| B8/4 | Inner right front parking system distance sensor | 22L |
| B8/5 | Center right front parking system distance sensor | 24L |
| B8/6 | Outer right front parking system distance sensor | 26L |
| B8/7 | Outer right rear parking system distance sensor | 8L |
| B8/8 | Inner right rear parking system distance sensor | 9L |
| B8/9 | Inner left rear parking system distance sensor | 11L |
| CAN E2 | Chassis CAN 2 | 15K |
| F33 | Battery compartment prefuse box | 3L |
| F33MF1 | Multiple fuse 1 | 1K |
| N62 | Parking system control unit | 4A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 20A |
| N62 | Parking system control unit | 27A |
| W17/1 | Left rear seat ground point | 3E |
| X174/1 | Vehicle interior/front bumper electrical connector | 17E |
| X18 | Vehicle interior and harness for taillamp electrical connector | 27E |
| X18/2 | Vehicle interior/roof electrical connector | 5H |
| X26/4 | Cockpit adapter wiring harness electrical connector | 27H |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 15L |
| X35/28 | Rear bumper parking system electrical connector | 7E |
| Z36/1 | Rear parking system sensors ground line connector sleeve | 12G |
| Z36/2 | Rear parking system sensors positive line connector sleeve | 10G |
| Z36/3 | Front parking system sensors ground line connector sleeve | 20G |
| Z36/4 | Front parking system sensors positive line connector sleeve | 23H |
