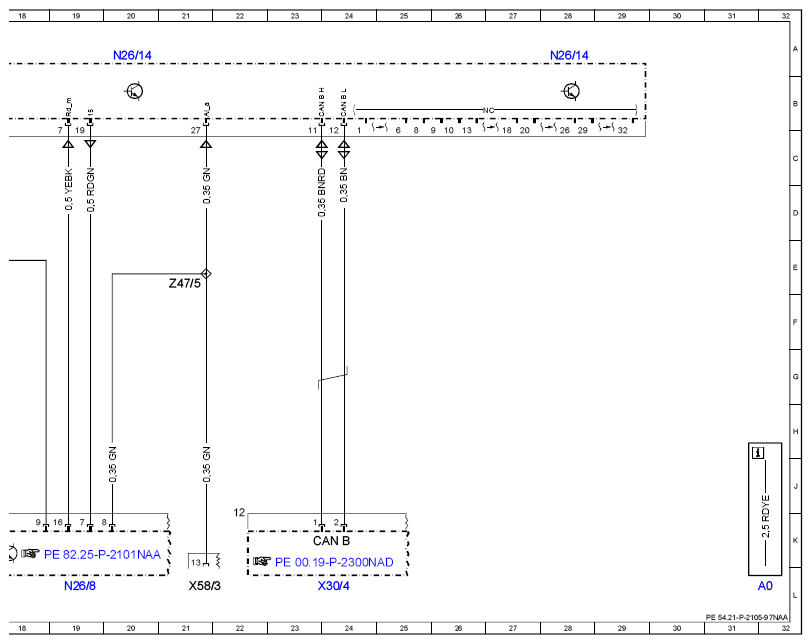

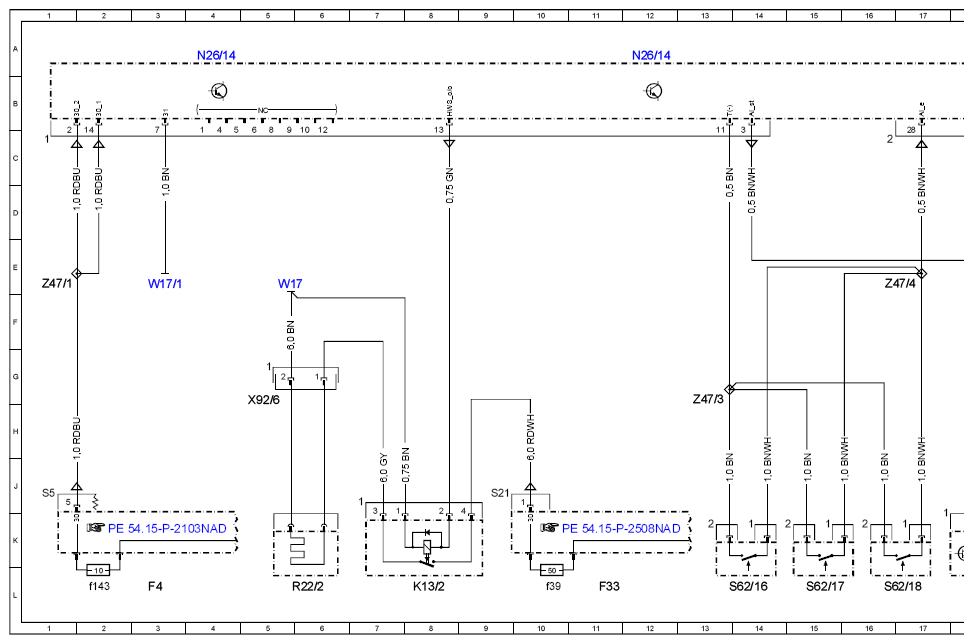

Wiring Diagram, Special Vehicle Multifunction Control Unit (SVMCU (MSS)) - PE54.21-P-2105-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE Z04 (B4 armoring for special protection version) with CODE Z05 (B5 armoring on special protection version) with CODE Z22 (Panic alarm system) Control unit N26/14
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| CAN B | Interior CAN | 24K |
| F33 | Battery compartment prefuse box | 11L |
| F33f39 | Fuse 39 | 10L |
| F4 | Rear fuse box | 3L |
| F4f143 | Fuse 143 | 2L |
| K13/2 | 8L | |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 4A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 12A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 20A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 28A |
| N26/8 | PAS (GAS) control unit | 19L |
| R22/2 | 6L | |
| S62/16 | Left footwell emergency alarm system button | 14L |
| S62/17 | Right footwell emergency alarm system button | 15L |
| S62/18 | Rear air vent emergency alarm system button | 16L |
| W17 | Right rear seat ground point | 5E |
| W17/1 | Left rear seat ground point | 3E |
| X30/4 | Right potential distributor electrical connector (CAN) | 24L |
| X58/3 | Microphone electrical connector | 21L |
| X92/6 | Heated windshield electrical connector | 5H |
| Z47/1 | Special vehicle multifunction control unit (SVMCU) circuit 30 connector sleeve | 1E |
| Z47/3 | Alarm ground line connector sleeve | 13G |
| Z47/4 | Alarm ON connector sleeve | 17E |
| Z47/5 | Alarm off connector sleeve | 21E |
