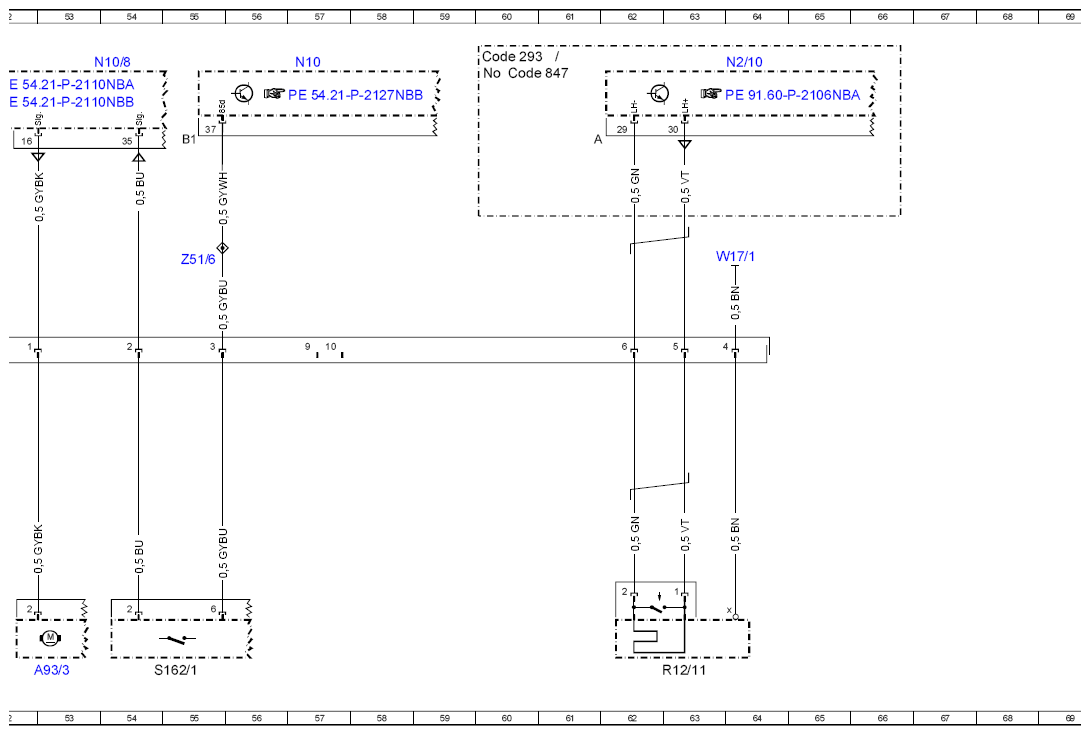

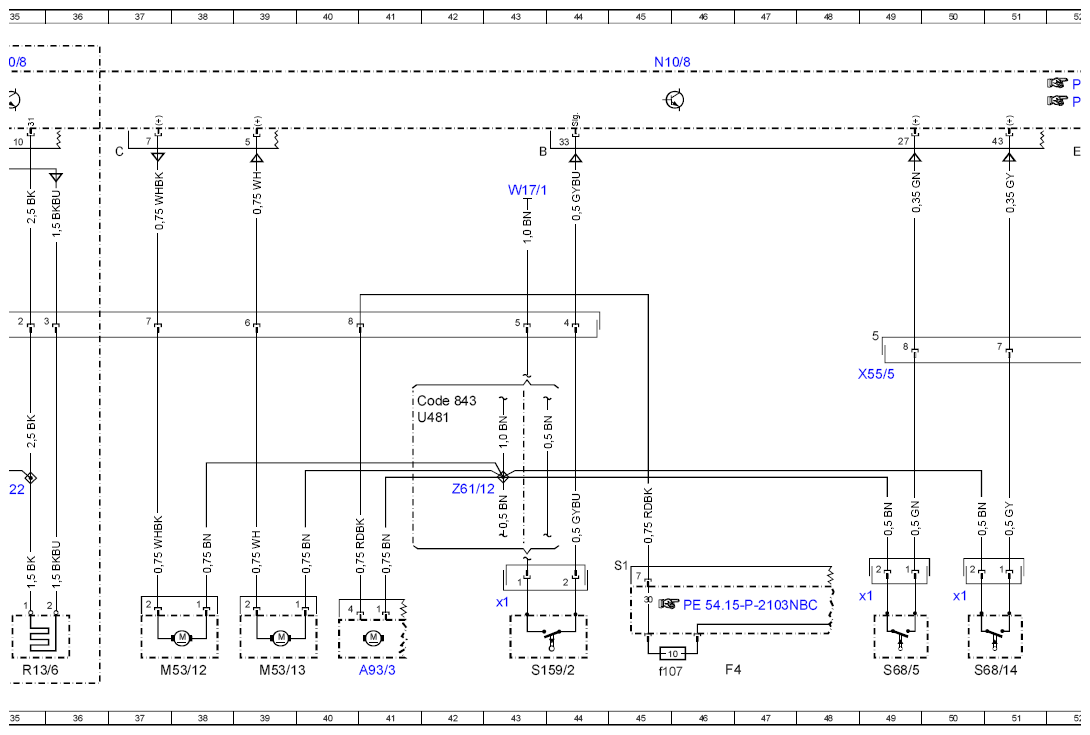

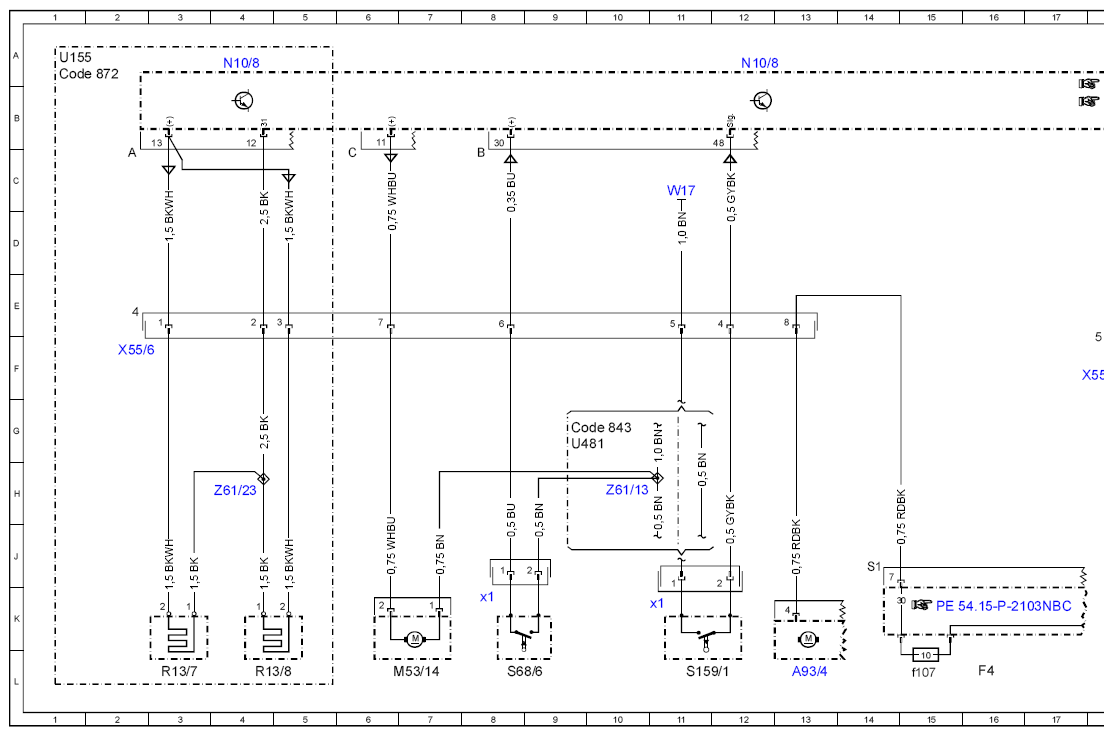

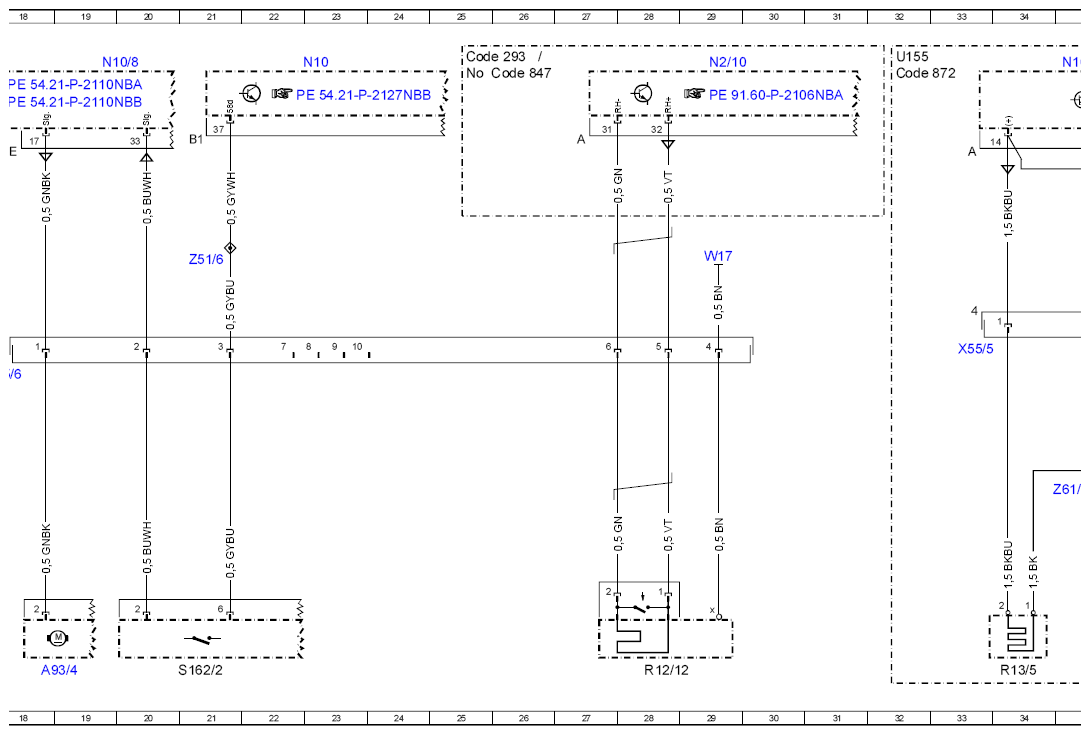

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97NBI
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 as of model year 2016 X55/5(4, 5), X55/6(4, 5)
MODEL 292 X55/5(4, 5), X55/6(4, 5)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A93/3 | Left 2nd seat row release unit | 41L |
| A93/3 | Left 2nd seat row release unit | 53L |
| A93/4 | Right 2nd seat row release unit | 13L |
| A93/4 | Right 2nd seat row release unit | 18L |
| Code 293 | Left and right rear sidebag | 25A |
| Code 293 | Left and right rear sidebag | 60A |
| Code 843 | Electric EASY-ENTRY | 9G |
| Code 843 | Electric EASY-ENTRY | 41G |
| Code 847 | 3rd seat row | 25A |
| Code 847 | 3rd seat row | 60A |
| Code 872 | Left and right rear seat heaters | 1A |
| Code 872 | Left and right rear seat heaters | 32A |
| F4 | Rear fuse box | 16L |
| F4 | Rear fuse box | 46L |
| F4f107 | Fuse 107 | 15L |
| F4f107 | Fuse 107 | 45L |
| M53/12 | Left 2nd seat row head restraint motor | 38L |
| M53/13 | Center 2nd seat row head restraint motor | 39L |
| M53/14 | Right 2nd seat row head restraint motor | 7L |
| N10 | SAM control unit | 23A |
| N10 | SAM control unit | 57A |
| N10/8 | Rear control unit | 4A |
| N10/8 | Rear control unit | 12A |
| N10/8 | Rear control unit | 19A |
| N10/8 | Rear control unit | 35A |
| N10/8 | Rear control unit | 54A |
| N10/8 | Rear control unit | 45A |
| N2/10 | Supplemental restraint system control unit | 29A |
| N2/10 | Supplemental restraint system control unit | 64A |
| R12/11 | Left rear sidebag squib | 63L |
| R12/12 | Right rear sidebag squib | 28L |
| R13/5 | Left rear seat sitting surface heated cushion | 34L |
| R13/6 | Left rear backrest heated cushion | 35L |
| R13/7 | Right rear seat sitting surface heated cushion | 3L |
| R13/8 | Right rear backrest heater pad | 4L |
| S159/1 | Right 2nd seat row easy entry/exit switch | 11L |
| S159/1x1 | Right 2nd seat row easy entry/exit switch electrical connector | 11K |
| S159/1x1 | Right 2nd seat row easy entry/exit switch electrical connector | 43K |
| S159/2 | Left 2nd seat row easy entry/exit switch | 43L |
| S162/1 | Left 2nd seat row folding backrest switch | 55L |
| S162/2 | Right 2nd seat row folding backrest switch | 21L |
| S68/14 | Center rear seat belt buckle switch | 51L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 50K |
| S68/5 | Left rear seat belt buckle switch | 49L |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 49K |
| S68/6 | Right rear seat belt buckle switch | 8L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 8K |
| U155 | Valid for 166.8 | 1A |
| U155 | Valid for 166.8 | 32A |
| U481 | Valid for rear seat belt status indication | 9G |
| U481 | Valid for rear seat belt status indication | 41G |
| W17 | Right rear seat ground point | 11C |
| W17 | Right rear seat ground point | 29D |
| W17/1 | Left rear seat ground point | 43C |
| W17/1 | Left rear seat ground point | 64D |
| X55/5 | Left rear seat adjustment unit connector block | 49F |
| X55/5 | Left rear seat adjustment unit connector block | 33F |
| X55/6 | Right rear seat adjustment unit connector block | 2F |
| X55/6 | Right rear seat adjustment unit connector block | 18F |
| Z51/6 | Circuit 58d vehicle interior connector sleeve | 21D |
| Z51/6 | Circuit 58d vehicle interior connector sleeve | 55D |
| Z61/12 | Left circuit 31 2nd seat row connector sleeve | 42H |
| Z61/13 | Right circuit 31 2nd seat row connector sleeve | 10H |
| Z61/22 | Left 2nd seat row seat heater ground line connector sleeve | 35H |
| Z61/23 | Right 2nd seat row seat heater ground line connector sleeve | 4H |
