Connector Separation Point Wiring Diagram - PE54.18-P-2300-97NBG
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

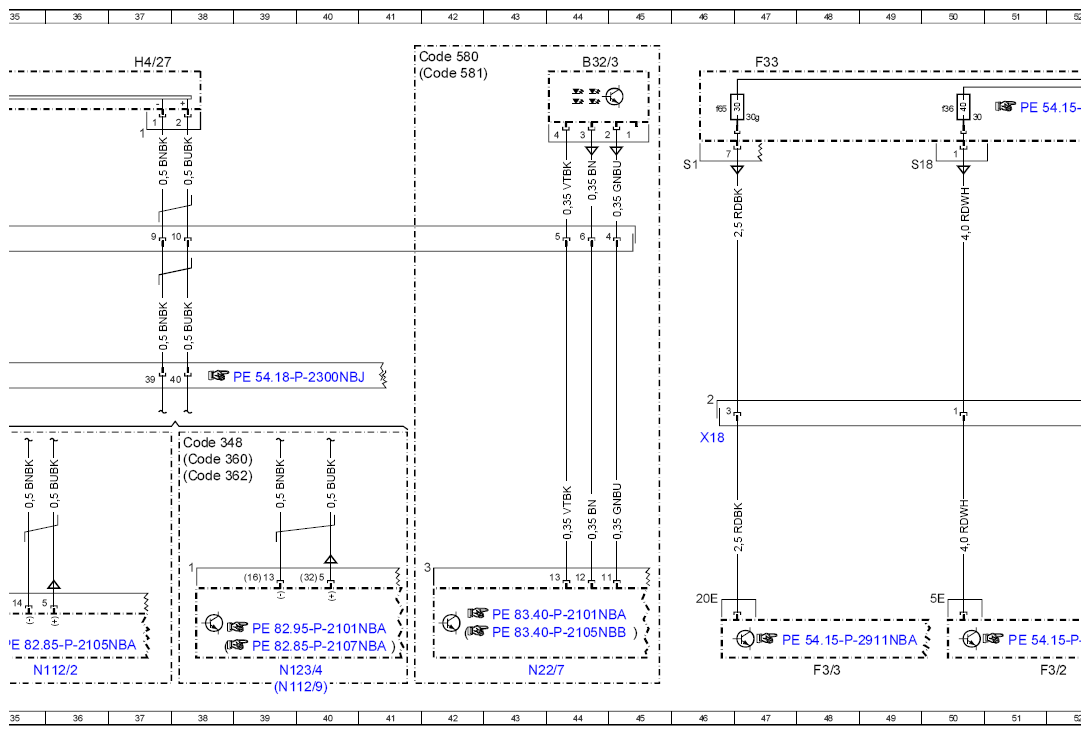

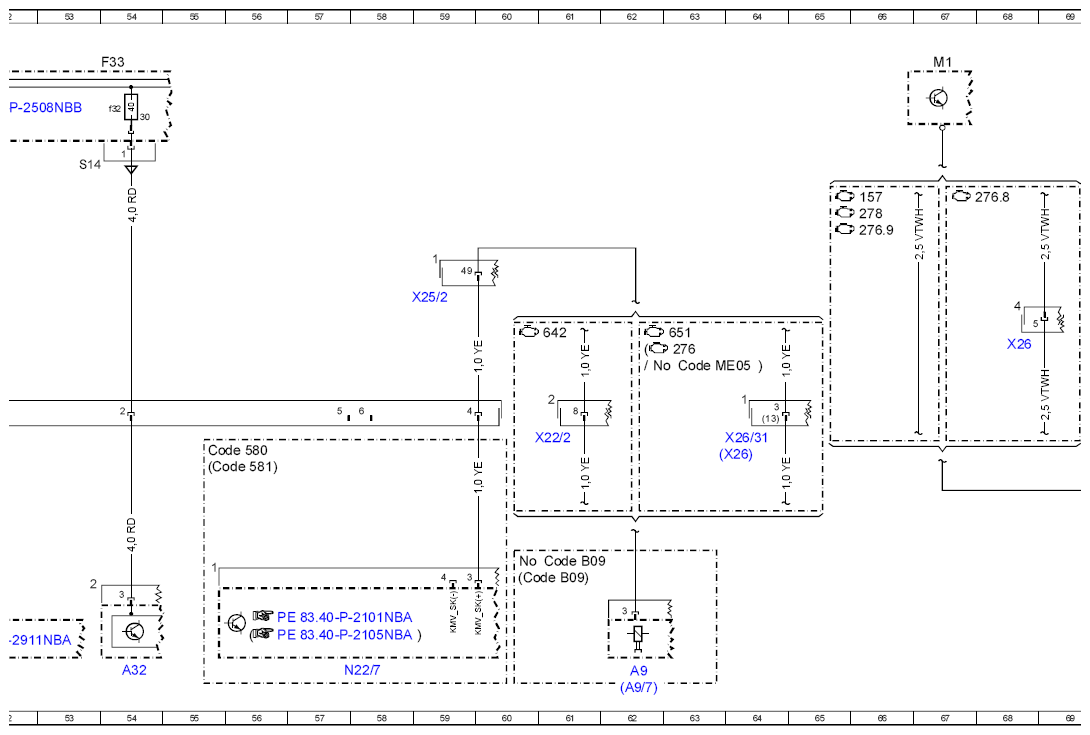

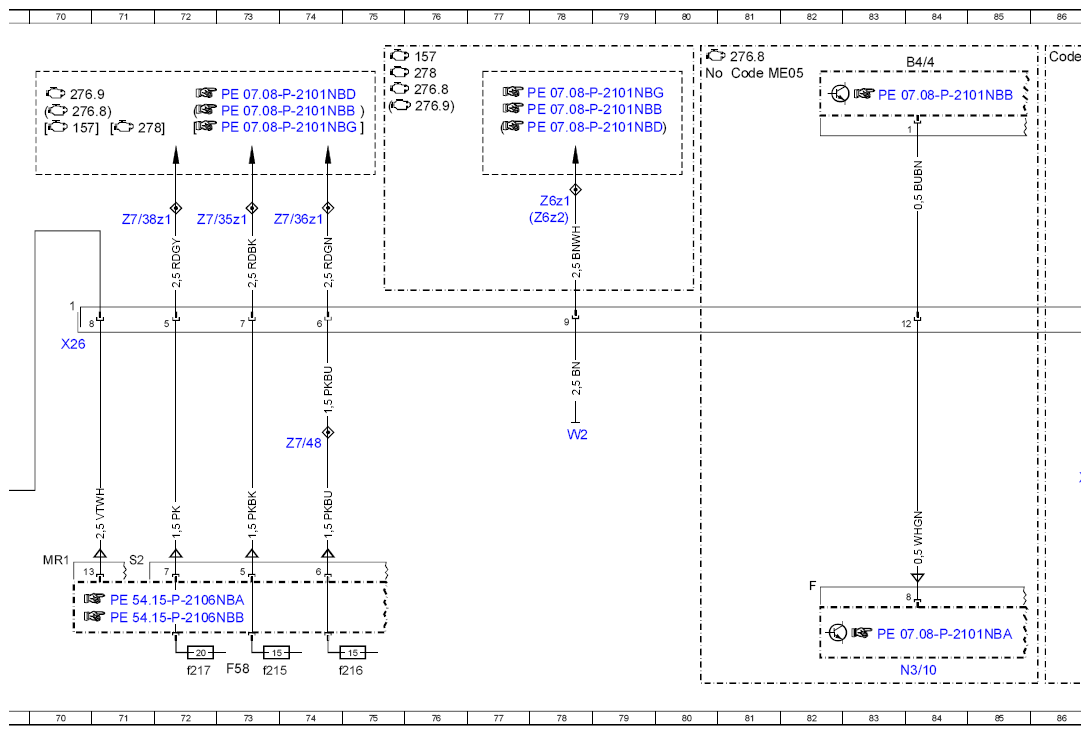

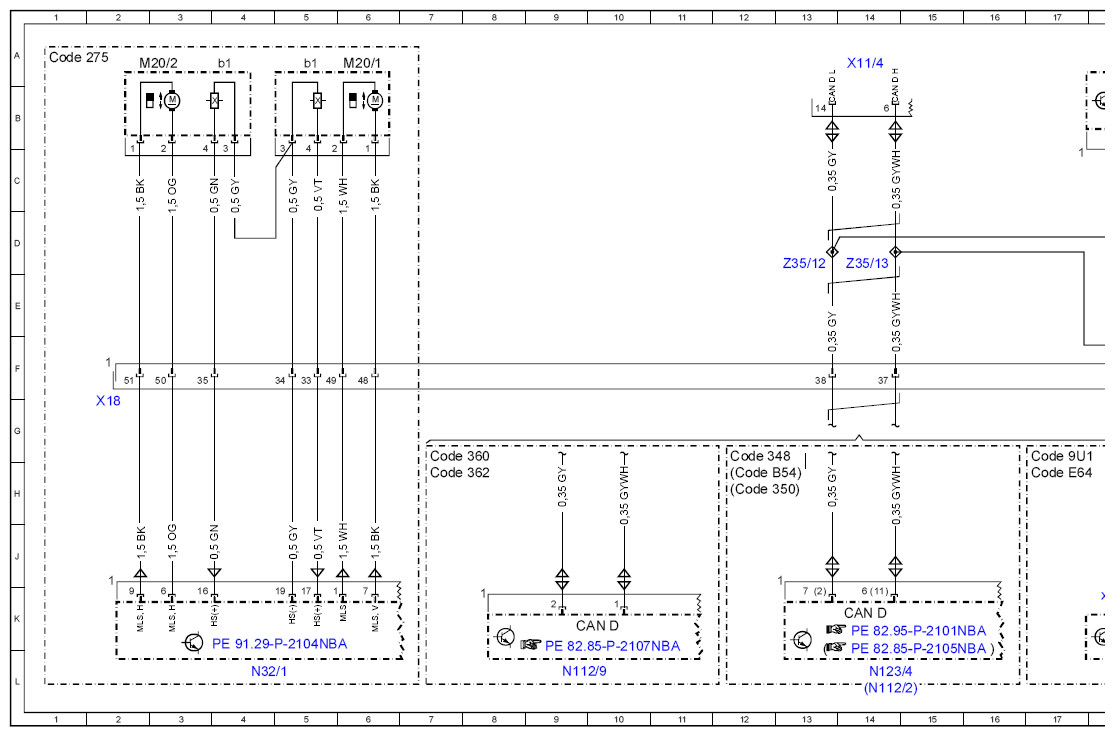

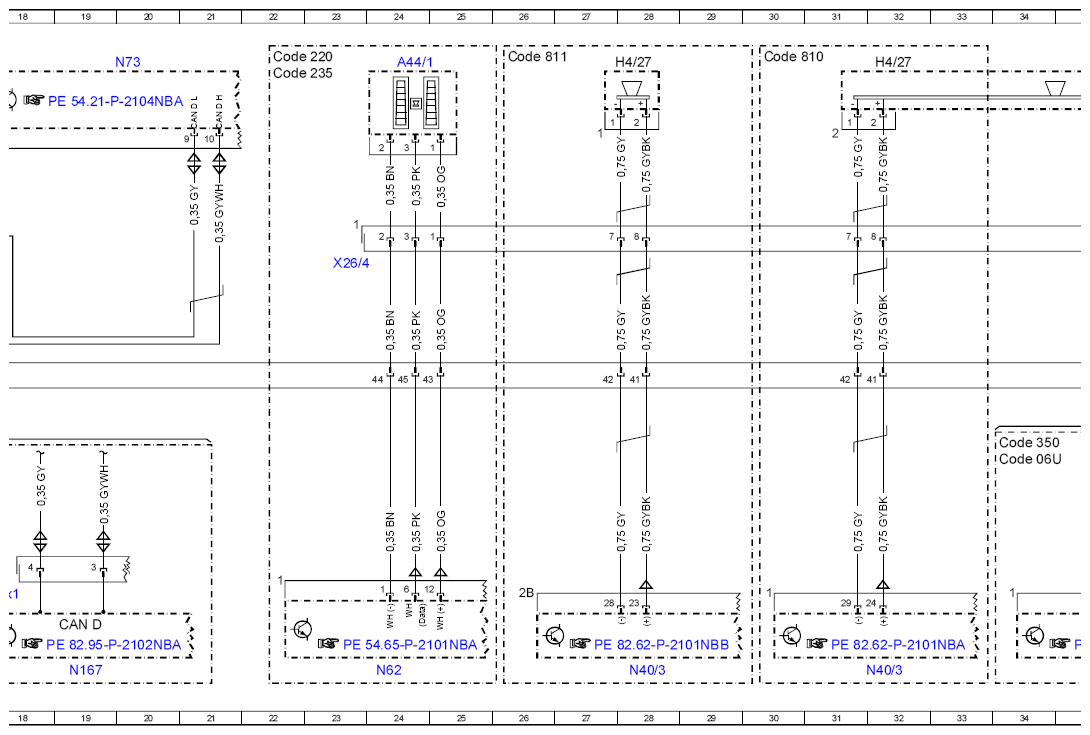

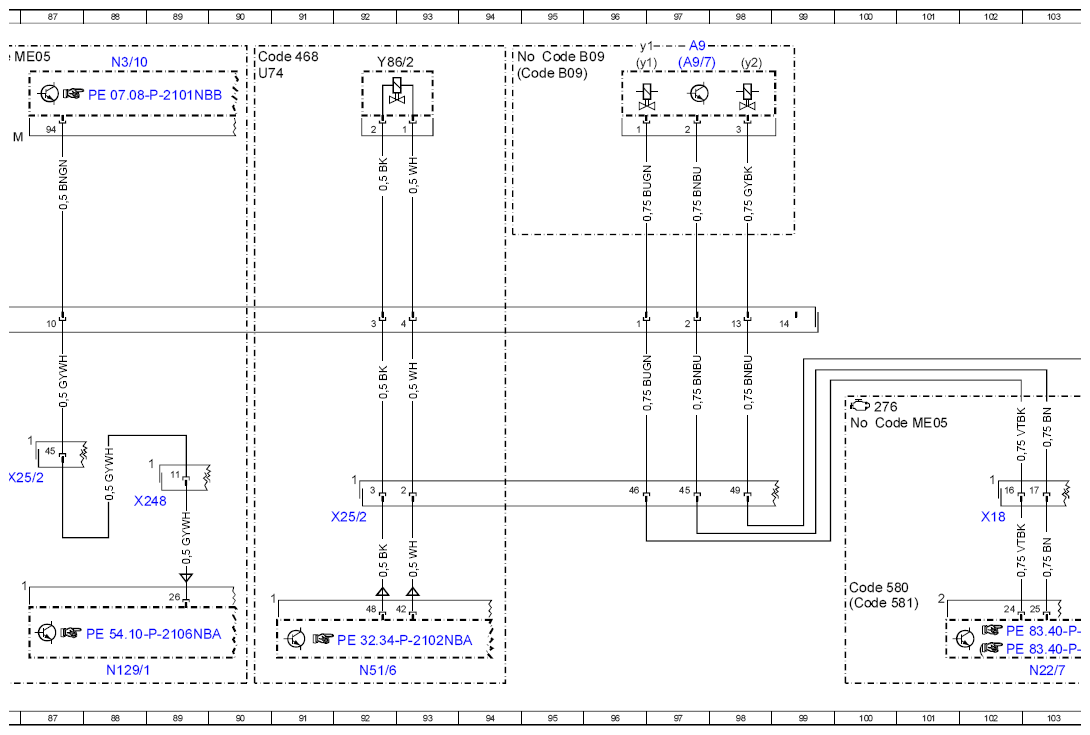

MODEL 166 as of model year 2016 X18(1) part 1, X26(1), X26/4
MODEL 292 X18(1) part 1, X26(1), X26/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 112L |
| A32 | AC housing | 54L |
| A44/1 | Front parking system warning display | 24A |
| A9 | Refrigerant compressor | 62L |
| A9 | Refrigerant compressor | 97A |
| A9/7 | Refrigerant compressor with magnetic clutch | 62L |
| A9/7 | Refrigerant compressor with magnetic clutch | 97A |
| A9/7y1 | Refrigerant compressor regulation valve | 96A |
| A9/7y2 | Refrigerant compressor magnetic clutch | 98A |
| A9y1 | Refrigerant compressor regulation valve | 96A |
| B32/3 | Sun sensor | 44A |
| B4/4 | Purging pressure sensor | 84A |
| CAN D | Diagnostic CAN | 14K |
| CAN D | Diagnostic CAN | 19K |
| CAN D | Diagnostic CAN | 10K |
| Code 06U | Mercedes connect me basic services | 34H |
| Code 220 | PARKTRONIC | 22A |
| Code 235 | Park-Pilot with PARKTRONIC | 22A |
| Code 275 | Memory package | 1A |
| Code 348 | Emergency call/assistance system | 12G |
| Code 348 | Emergency call/assistance system | 38G |
| Code 350 | Ecall Europe emergency call system | 12H |
| Code 350 | Ecall Europe emergency call system | 34G |
| Code 360 | HERMES UMTS | 7G |
| Code 360 | HERMES UMTS | 38H |
| Code 362 | HERMES LTE | 7H |
| Code 362 | HERMES LTE | 38H |
| Code 468 | ACTIVE CURVE SYSTEM | 90A |
| Code 580 | Air conditioning | 41A |
| Code 580 | Air conditioning | 55G |
| Code 580 | Air conditioning | 100K |
| Code 581 | Automatic air conditioning | 41A |
| Code 581 | Automatic air conditioning | 55H |
| Code 581 | Automatic air conditioning | 100K |
| Code 810 | Sound system | 30A |
| Code 811 | Extended sound system | 26A |
| Code 9U1 | ECALL RUSSIA (GLONASS) preinstallation | 17G |
| Code B09 | Refrigerant compressor with magnetic clutch | 60J |
| Code B09 | Refrigerant compressor with magnetic clutch | 94A |
| Code B09 | Refrigerant compressor with magnetic clutch | 61J |
| Code B09 | Refrigerant compressor with magnetic clutch | 95A |
| Code B54 | Live Traffic Information | 12H |
| Code E64 | ECALL RUSSIA (GLONASS) | 17H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 86A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 63F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 81A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 100G |
| F3/2 | Cockpit circuit 30 fuse box | 51L |
| F3/3 | Cockpit circuit 30g fuse box | 48L |
| F33 | Battery compartment prefuse box | 47A |
| F33 | Battery compartment prefuse box | 54A |
| F33f32 | Fuse 32 | 54B |
| F33f36 | Fuse 36 | 50B |
| F33f65 | Fuse 65 | 46B |
| F58 | Engine compartment fuse and relay module | 73L |
| F58f215 | Fuse 215 | 73L |
| F58f216 | Fuse 216 | 75L |
| F58f217 | Fuse 217 | 72L |
| H4/27 | Center instrument panel speaker | 28A |
| H4/27 | Center instrument panel speaker | 32A |
| H4/27 | Center instrument panel speaker | 37A |
| M1 | Starter | 67A |
| M20/1 | Steering column in/out adjustment motor | 6A |
| M20/1b1 | Steering column in/out Hall sensor | 5A |
| M20/2 | Steering column up/down adjustment motor | 3A |
| M20/2b1 | Steering column up/down Hall sensor | 4A |
| N112/2 | Telematics services communication module | 14L |
| N112/2 | Telematics services communication module | 35L |
| N112/9 | HERMES control unit | 9L |
| N112/9 | HERMES control unit | 39L |
| N123/4 | Emergency call system control unit | 14L |
| N123/4 | Emergency call system control unit | 39L |
| N129/1 | Power electronics control unit | 88L |
| N167 | E-Call Russia (GLONASS) control unit | 19L |
| N167x1 | E-Call Russia (GLONASS) control unit electrical connector 1 | 18K |
| N22/7 | Automatic air conditioning control and operating unit | 43L |
| N22/7 | Automatic air conditioning control and operating unit | 58L |
| N22/7 | Automatic air conditioning control and operating unit | 103L |
| N3/10 | ME-SFI [ME] control unit | 84L |
| N3/10 | ME-SFI [ME] control unit | 88A |
| N32/1 | Driver seat control unit | 4L |
| N40/3 | Sound system amplifier control unit | 28L |
| N40/3 | Sound system amplifier control unit | 32L |
| N51/6 | Active roll stabilization control unit | 92L |
| N62 | Parking system control unit | 24L |
| N73 | Electronic ignition switch control unit | 20A |
| U74 | Valid for diesel engines | 90A |
| W2 | Right front ground point at lamp unit | 78G |
| X11/4 | Diagnostic connector | 14A |
| X18 | Vehicle interior and harness for taillamp electrical connector | 2G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 46G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 102H |
| X18 | Vehicle interior and harness for taillamp electrical connector | 104H |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 61G |
| X248 | Underfloor electrical connector (rectifier) | 89H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 92H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 59E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 87H |
| X26 | Interior and engine wiring harness electrical connector | 64G |
| X26 | Interior and engine wiring harness electrical connector | 68F |
| X26 | Interior and engine wiring harness electrical connector | 70F |
| X26/31 | Engine/engine compartment electrical connector | 64G |
| X26/4 | Cockpit adapter wiring harness electrical connector | 23D |
| Y86/2 | Active Roll Stabilization throttle valve | 92A |
| Z35/12 | Diagnostic CAN low connector sleeve | 13D |
| Z35/13 | Diagnostic CAN high connector sleeve | 14D |
| Z6z1 | Circuit 31 connector sleeve | 78C |
| Z6z2 | Circuit 31 connector sleeve | 78D |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 73D |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 74D |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 71D |
| Z7/48 | Circuit 87D2 connector sleeve | 74G |
