Connector Separation Point Wiring Diagram - PE54.18-P-2300-97NAK
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

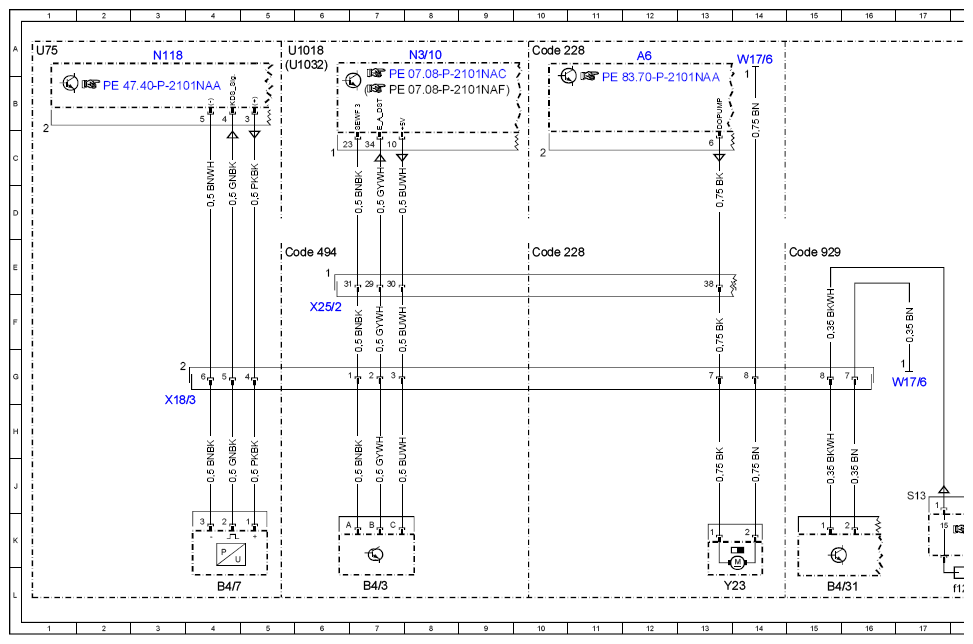

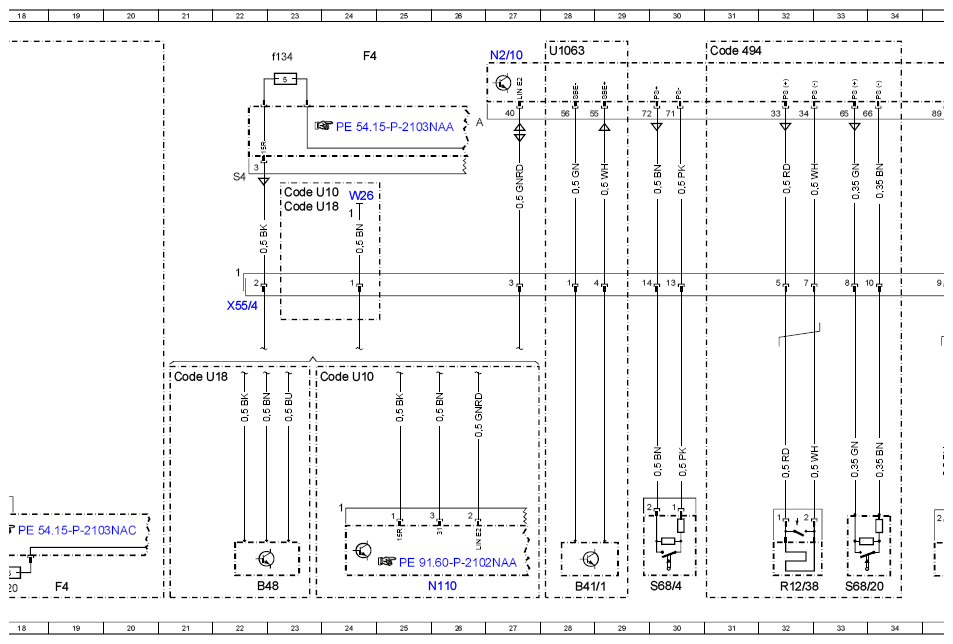

MODEL 166 up to model year 2016 X18/3 (2), X55/4 (1)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A6 | Stationary heater unit | 12A |
| B4/3 | Fuel tank pressure sensor | 7L |
| B4/31 | Fuel quality sensor | 15L |
| B4/7 | Fuel pressure sensor | 4L |
| B41/1 | Front passenger seat occupied recognition | 28L |
| B48 | Front passenger seat occupied recognition and ACSR | 22L |
| Code 228 | Stationary heater | 10E |
| Code 228 | Stationary heater | 10A |
| Code 494 | USA version | 5E |
| Code 494 | USA version | 31A |
| Code 929 | Engine for ethanol fuel | 15E |
| Code U10 | Front passenger seat with weight detection | 23G |
| Code U10 | Front passenger seat with weight detection | 23D |
| Code U18 | Automatic child seat recognition (ACSR[AKSE]) | 21G |
| Code U18 | Automatic child seat recognition (ACSR[AKSE]) | 23D |
| F4 | Rear fuse box | 19L |
| F4 | Rear fuse box | 24A |
| F4f120 | Fuse 120 | 18L |
| F4f134 | Fuse 134 | 23A |
| N110 | Weight Sensing System (WSS) control unit | 26L |
| N118 | Fuel pump control unit | 3A |
| N2/10 | Supplemental restraint system control unit | 27A |
| N2/10 | Supplemental restraint system control unit | 36A |
| N2/10 | Supplemental restraint system control unit | 38A |
| N3/10 | ME-SFI [ME] control unit | 8A |
| R12/10 | Front passenger sidebag squib | 36L |
| R12/38 | Front passenger anchor fitting tensioner squib | 32L |
| S68/20 | Front passenger seat position detection switch | 33L |
| S68/4 | Front passenger seat belt buckle restraint system switch | 30L |
| U1018 | Valid for gasoline engine 276 | 5A |
| U1032 | Valid for engine 278 and 157 | 5A |
| U1063 | Not valid for front passenger seat with weight detection and ACSR [AKSE] | 28A |
| U12 | Valid for left-hand drive vehicles | 36C |
| U13 | Valid for right-hand drive vehicles | 36C |
| U75 | Valid for gasoline engines | 1A |
| W15/1 | Right footwell ground point | 37C |
| W15/2 | Left footwell ground point | 37C |
| W17/6 | Rear seat crossmember ground point | 17G |
| W17/6 | Rear seat crossmember ground point | 14A |
| W26 | Supplemental restraint system control unit ground point | 24D |
| X18/3 | Vehicle interior/fuel tank electrical connector | 3H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 6F |
| X55/4 | Front passenger seat connector block | 22F |
| Y23 | Stationary heater fuel pump | 13L |
