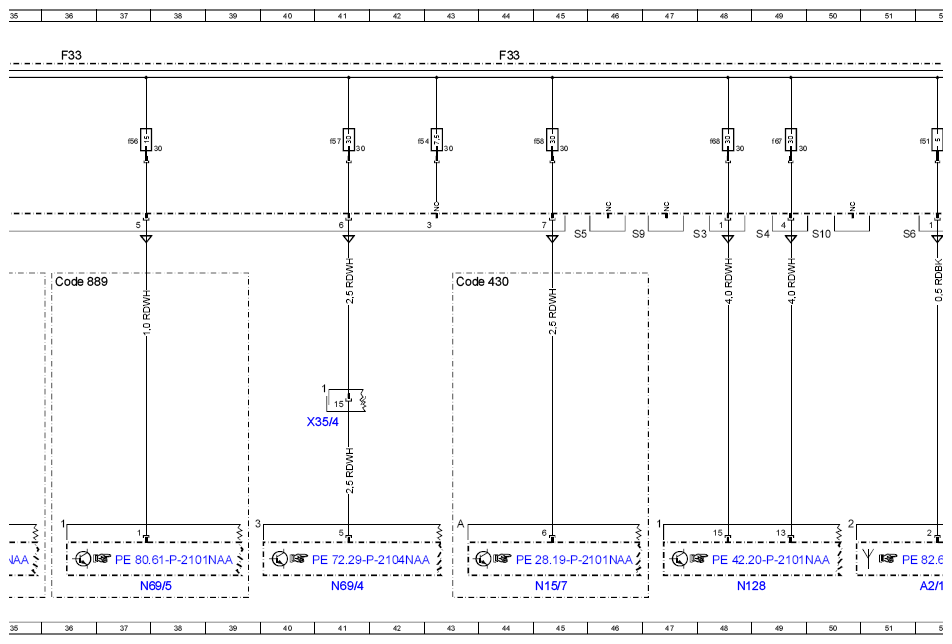

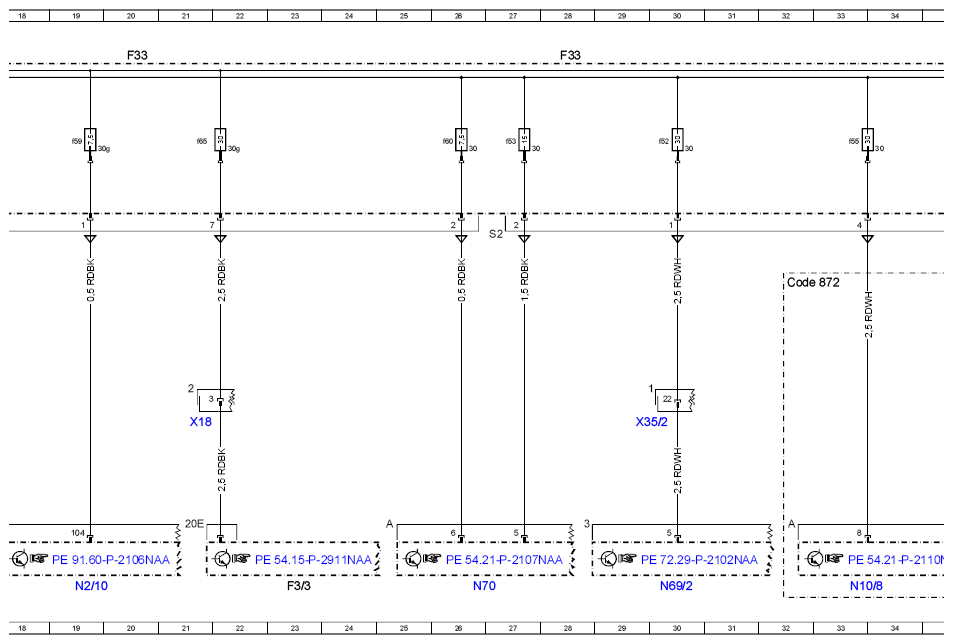

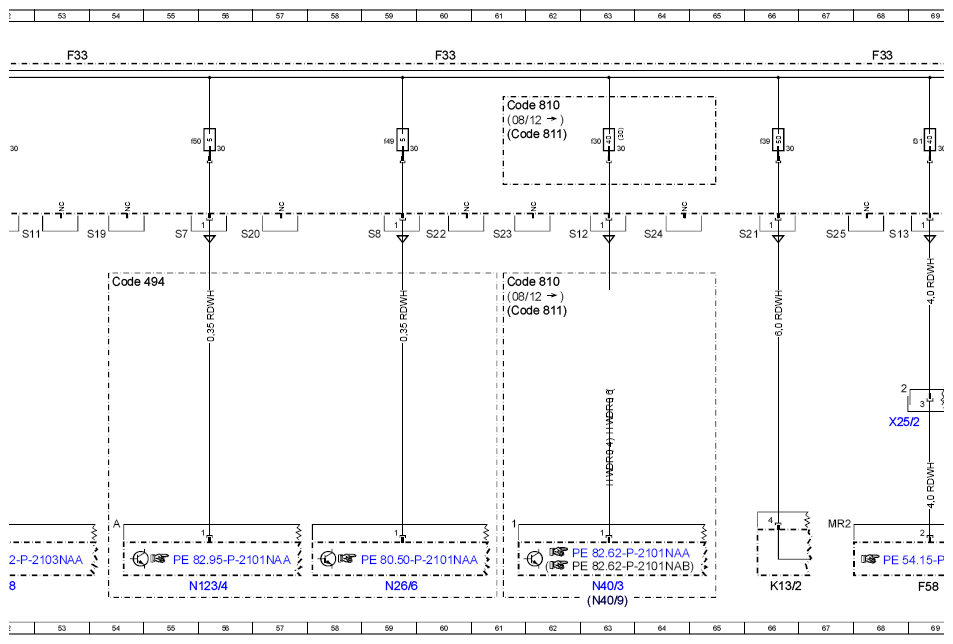

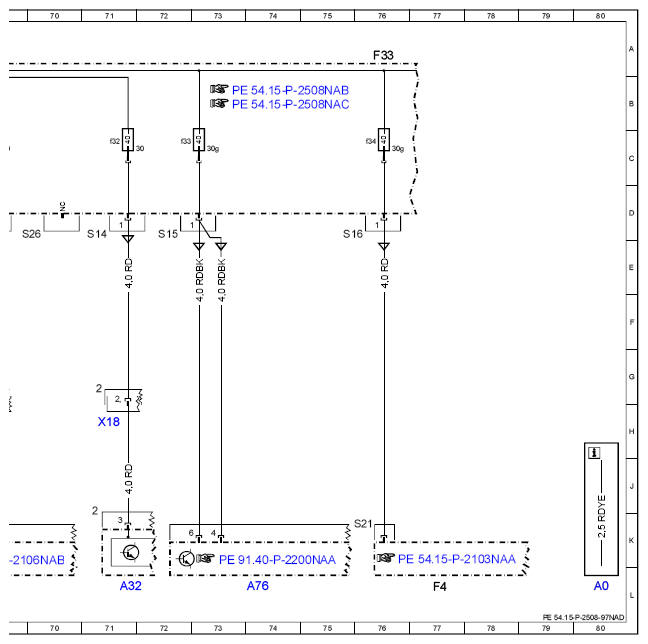

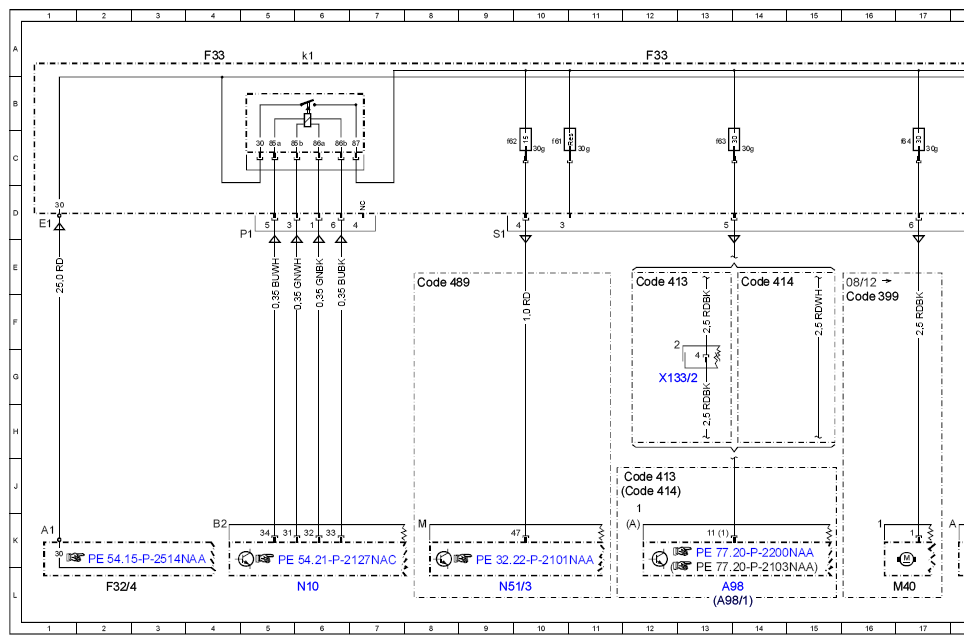

Wiring Diagram For Battery Compartment Prefuse Box (F33) - PE54.15-P-2508-97NAD
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE Z04 (B4 armoring for special protection version) with CODE Z05 (B5 armoring on special protection version) with CODE Z22 (Panic alarm system)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 52L |
| A32 | AC housing | 71L |
| A76 | Left front reversible emergency tensioning retractor | 74L |
| A98 | Panoramic sliding roof control module | 13L |
| A98/1 | Sliding roof control module | 13L |
| Code 399 | Front multicontour seats with massage function | 16F |
| Code 413 | Panoramic sliding sunroof | 12J |
| Code 413 | Panoramic sliding sunroof | 12E |
| Code 414 | Glass electric sliding roof | 11J |
| Code 414 | Glass electric sliding roof | 14E |
| Code 430 | On-road/off-road package | 43E |
| Code 489 | AIRMATIC | 8E |
| Code 494 | USA version | 54E |
| Code 810 | Sound system | 61E |
| Code 810 | Sound system | 61B |
| Code 811 | Extended sound system | 61F |
| Code 811 | Extended sound system | 61C |
| Code 872 | Left and right rear seat heaters | 32E |
| Code 889 | KEYLESS-GO | 36E |
| F3/3 | Cockpit circuit 30g fuse box | 23L |
| F32/4 | Interior prefuse box | 2L |
| F33 | Battery compartment prefuse box | 4A |
| F33 | Battery compartment prefuse box | 12A |
| F33 | Battery compartment prefuse box | 28A |
| F33 | Battery compartment prefuse box | 20A |
| F33 | Battery compartment prefuse box | 36A |
| F33 | Battery compartment prefuse box | 53A |
| F33 | Battery compartment prefuse box | 44A |
| F33 | Battery compartment prefuse box | 60A |
| F33 | Battery compartment prefuse box | 68A |
| F33 | Battery compartment prefuse box | 76A |
| F33f30 | Fuse 30 | 63C |
| F33f31 | Fuse 31 | 69C |
| F33f32 | Fuse 32 | 71C |
| F33f33 | Fuse 33 | 72C |
| F33f34 | Fuse 34 | 76C |
| F33f39 | Fuse 39 | 66C |
| F33f49 | Fuse 49 | 59C |
| F33f50 | Fuse 50 | 55C |
| F33f51 | Fuse 51 | 52C |
| F33f52 | Fuse 52 | 30C |
| F33f53 | Fuse 53 | 27C |
| F33f54 | Fuse 54 | 42C |
| F33f55 | Fuse 55 | 33C |
| F33f56 | Fuse 56 | 37C |
| F33f57 | Fuse 57 | 41C |
| F33f58 | Fuse 58 | 45C |
| F33f59 | Fuse 59 | 19C |
| F33f60 | Fuse 60 | 26C |
| F33f61 | Fuse 61 | 10C |
| F33f62 | Fuse 62 | 9C |
| F33f63 | Fuse 63 | 13C |
| F33f64 | Fuse 64 | 17C |
| F33f65 | Fuse 65 | 21C |
| F33f67 | Fuse 67 | 49C |
| F33f68 | Fuse 68 | 48C |
| F33k1 | Circuit 30g relay | 6A |
| F4 | Rear fuse box | 77L |
| F58 | Engine compartment fuse and relay module | 69L |
| K13/2 | 66L | |
| M40 | Multicontour seat pneumatic pump | 17L |
| N10 | SAM control unit | 6L |
| N10/8 | Rear control unit | 33L |
| N123/4 | Emergency call system control unit | 56L |
| N128 | Electric parking brake control unit | 48L |
| N15/7 | Transfer case control unit | 45L |
| N2/10 | Supplemental restraint system control unit | 19L |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 59L |
| N40/3 | Sound system amplifier control unit | 63L |
| N40/9 | Bass speaker amplifier | 63L |
| N51/3 | AIRMATIC control unit | 9L |
| N69/2 | Right front door control unit | 30L |
| N69/4 | Right rear door control unit | 41L |
| N69/5 | KEYLESS-GO control unit | 37L |
| N70 | Overhead control panel control unit | 26L |
| X133/2 | Sliding roof electrical connector | 13G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 21H |
| X18 | Vehicle interior and harness for taillamp electrical connector | 71H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 68H |
| X35/2 | Right front door electrical connector | 30H |
| X35/4 | Right rear door electrical connector | 41H |
