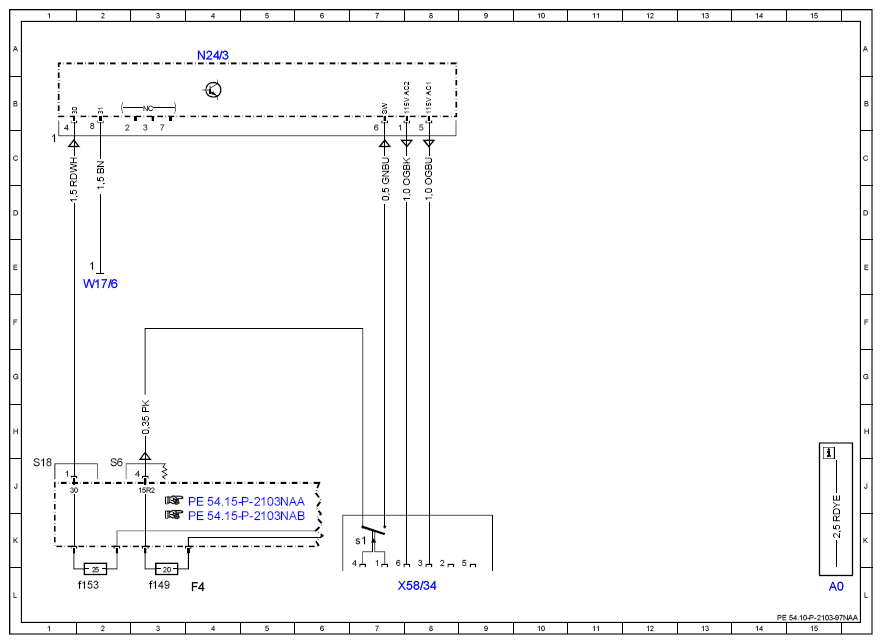

Wiring Diagram Control Unit DC/AC Converter - PE54.10-P-2103-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE U80 (115 V socket in load compartment) Control unit N24/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| F4 | Rear fuse box | 4L |
| F4f149 | Fuse 149 | 3L |
| F4f153 | Fuse 153 | 2L |
| N24/3 | DC/AC converter control unit | 4A |
| W17/6 | Rear seat crossmember ground point | 2E |
| X58/34 | 115 V socket | 8L |
| X58/34s1 | Socket microswitch | 7K |
