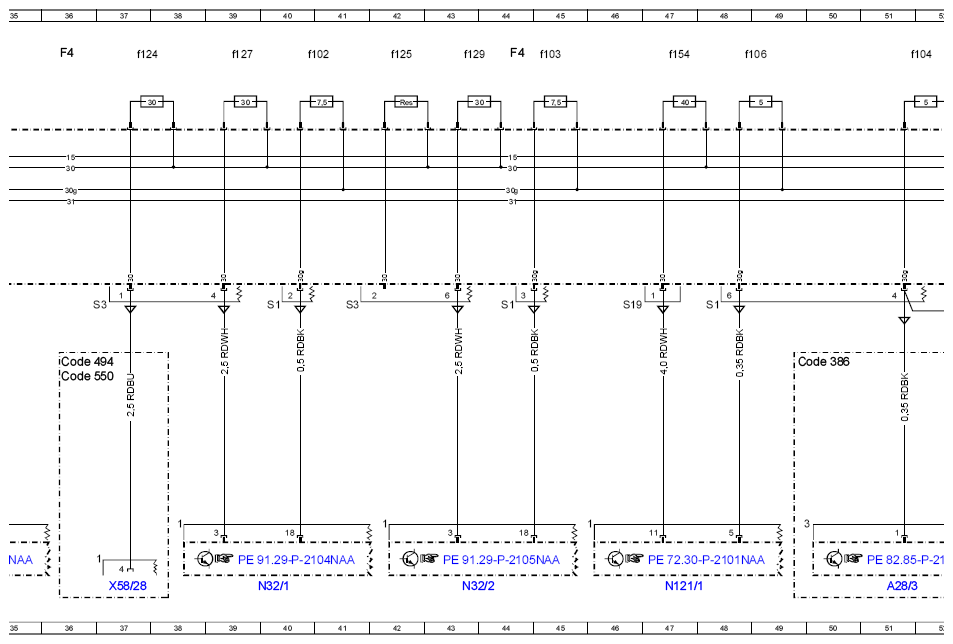

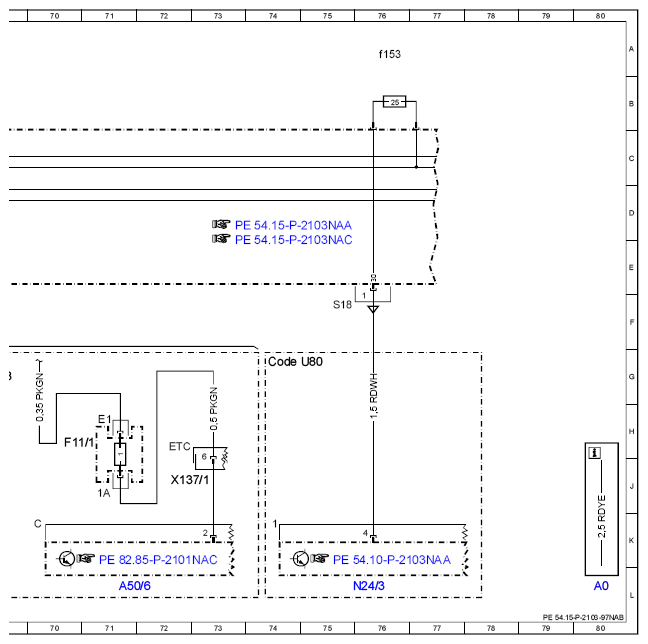

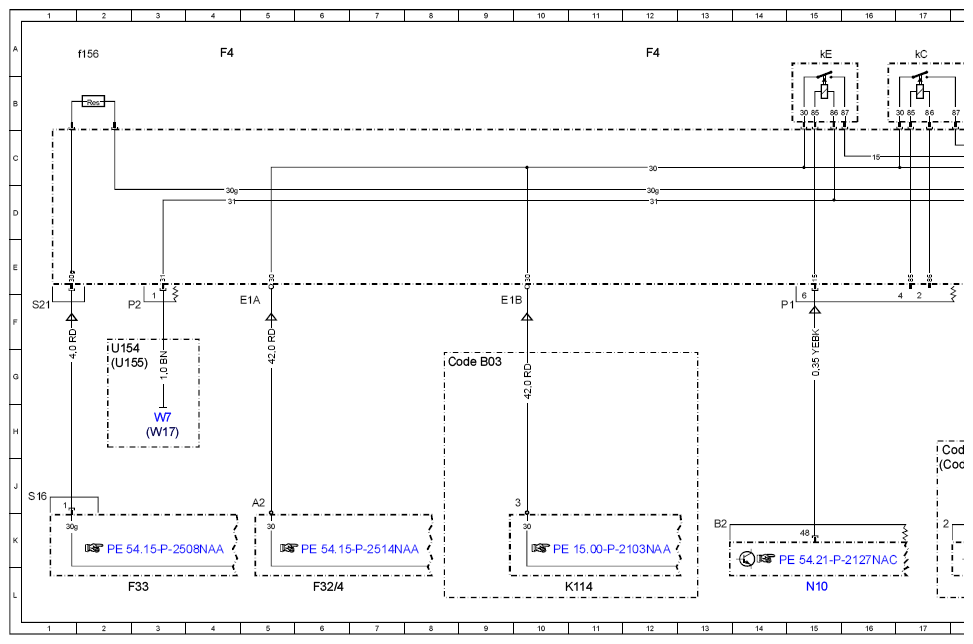

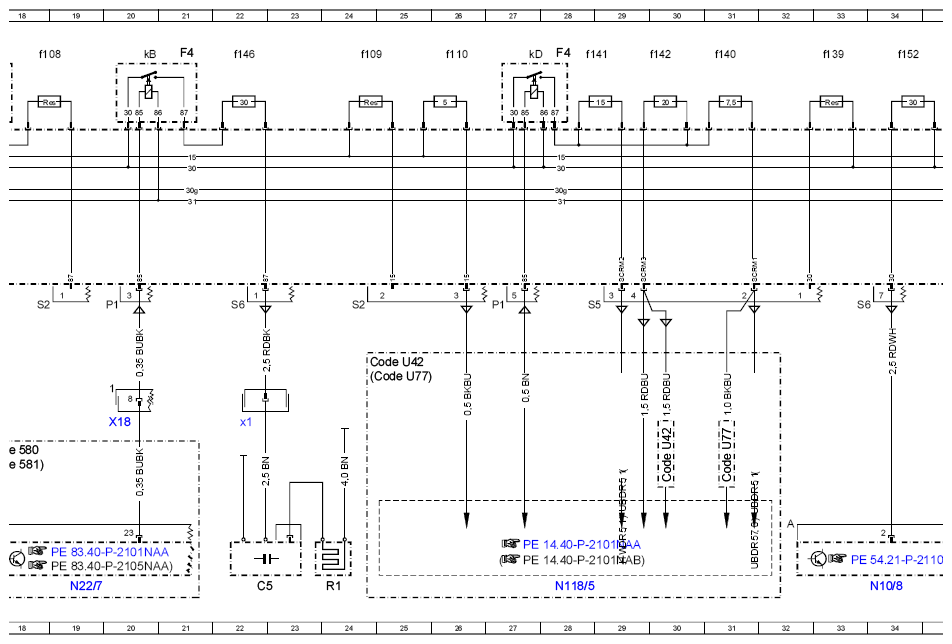

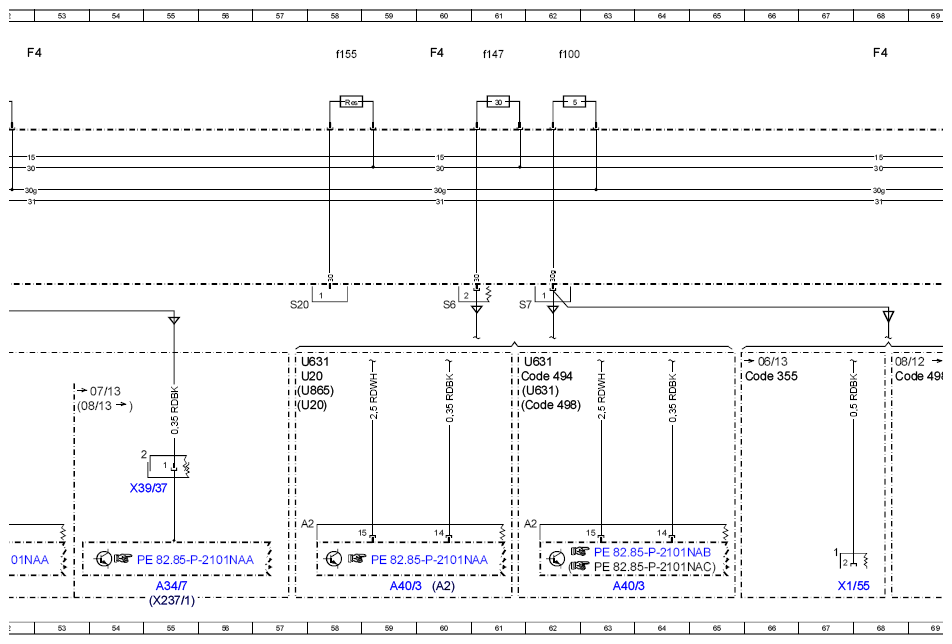

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97NAB
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 without CODE Z04 (B4 armoring for special protection version) without CODE Z05 (B5 armoring on special protection version) without CODE Z22 (Panic alarm system) Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A2 | Radio | 60L |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 51L |
| A34/7 | Bluetooth® module | 55L |
| A40/3 | COMAND control unit | 59L |
| A40/3 | COMAND control unit | 63L |
| A50/6 | Dedicated Short-Range Communications control unit | 71L |
| C5 | Rear window wave trap | 22L |
| C5x1 | Rear window wave trap electrical connector | 22H |
| Code 355 | Preinstallation for navigation retrofit | 66G |
| Code 386 | Comfort telephony | 49G |
| Code 494 | USA version | 36G |
| Code 494 | USA version | 61G |
| Code 498 | Japan version | 61H |
| Code 498 | Japan version | 68G |
| Code 550 | Trailer hitch | 36G |
| Code 580 | Automatic air conditioning | 17H |
| Code 581 | Comfort automatic air conditioning | 17J |
| Code B03 | ECO start/stop function | 8G |
| Code U42 | BlueTEC® diesel exhaust treatment | 24G |
| Code U42 | BlueTEC® diesel exhaust treatment | 30J |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 24G |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 31J |
| Code U80 | 115 V socket | 74G |
| F11/1 | Cockpit fuse block | 70H |
| F32/4 | Interior prefuse box | 6L |
| F33 | Battery compartment prefuse box | 3L |
| F4 | Rear fuse box | 4A |
| F4 | Rear fuse box | 12A |
| F4 | Rear fuse box | 28A |
| F4 | Rear fuse box | 21A |
| F4 | Rear fuse box | 36A |
| F4 | Rear fuse box | 44A |
| F4 | Rear fuse box | 52A |
| F4 | Rear fuse box | 60A |
| F4 | Rear fuse box | 68A |
| F4f100 | Fuse 100 | 62A |
| F4f102 | Fuse 102 | 41A |
| F4f103 | Fuse 103 | 45A |
| F4f104 | Fuse 104 | 52A |
| F4f106 | Fuse 106 | 49A |
| F4f108 | Fuse 108 | 18A |
| F4f109 | Fuse 109 | 24A |
| F4f110 | Fuse 110 | 26A |
| F4f124 | Fuse 124 | 37A |
| F4f125 | Fuse 125 | 42A |
| F4f127 | Fuse 127 | 39A |
| F4f129 | Fuse 129 | 43A |
| F4f139 | Fuse 139 | 33A |
| F4f140 | Fuse 140 | 31A |
| F4f141 | Fuse 141 | 28A |
| F4f142 | Fuse 142 | 30A |
| F4f146 | Fuse 146 | 22A |
| F4f147 | Fuse 147 | 61A |
| F4f152 | Fuse 152 | 34A |
| F4f153 | Fuse 153 | 76A |
| F4f154 | Fuse 154 | 47A |
| F4f155 | Fuse 155 | 58A |
| F4f156 | Fuse 156 | 2A |
| F4kB | Heated rear window relay | 20A |
| F4kC | Backup relay | 17A |
| F4kD | AdBlue® relay | 27A |
| F4kE | Circuit 15 relay | 15A |
| K114 | ECO start/stop function additional battery relay | 11L |
| N10 | SAM control unit | 15L |
| N10/8 | Rear control unit | 34L |
| N118/5 | AdBlue® control unit | 28L |
| N121/1 | Tailgate control unit | 47L |
| N22/7 | Automatic air conditioning control and operating unit | 19L |
| N24/3 | DC/AC converter control unit | 76L |
| N32/1 | Driver seat control unit | 40L |
| N32/2 | Front passenger seat control unit | 43L |
| R1 | Rear window heater | 24L |
| U154 | Valid for 166.0 | 2G |
| U155 | Valid for 166.8 | 2G |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 57G |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 57H |
| U631 | Valid for COMAND | 57G |
| U631 | Valid for COMAND | 61G |
| U631 | Valid for COMAND | 61G |
| U865 | Valid for Audio 20 | 57G |
| W17 | Right rear seat ground point | 3H |
| W7 | Right rear center section ground point | 3H |
| X1/55 | External navigation electrical connector | 67L |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 72J |
| X18 | Vehicle interior and harness for taillamp electrical connector | 20H |
| X237/1 | Mobile phone contact plate | 55L |
| X39/37 | Mobile phone electrical connector | 55J |
| X58/28 | Electric-Brake-Control electrical connector | 37L |
