Remove/Install Additional Battery - AR54.10-P-0007GQA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166.0 as of model year 2016
with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))
MODEL 166.0 up to model year 2016
with CODE B03 (ECO start/stop function)
MODIFICATION NOTES
| 07.12.2015 | New picture inserted | P54.10-4412-09 |
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Evaluation of high-voltage components | Model 166.063 as of model year 2016 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) |
AH54.00-P-6500-01SXH | |
| Notes on AGM battery | AH54.10-P-0002-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 2 | Remove right side of panel in trunk | AR68.30-P-4800GQ | |

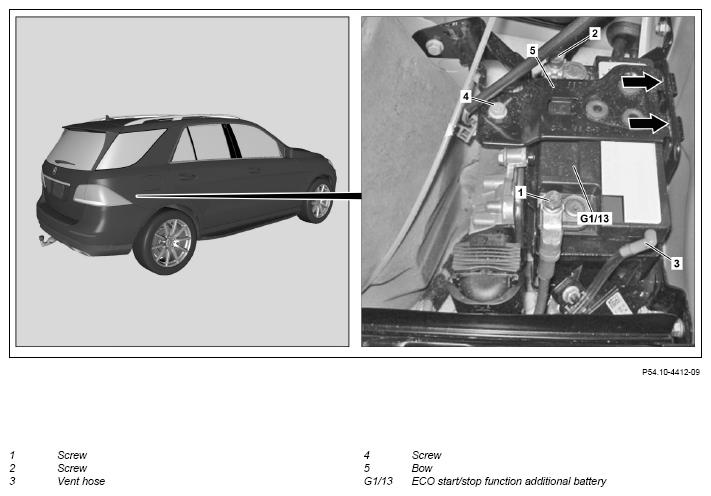

| 3 | Remove bolt (1) | *BA54.10-P-1013-01C | |
| 4 | Detach ground line from additional battery for ECO start/stop function (G1/13) | ||
| 5 | Connect diode test lamp between positive line of additional battery for ECO start/stop function (G1/13) and suitable ground point to check on-board electrical system for voltage. | If the diode test lamp lights up, the on-board electrical system is still active because of a defect in the electrical system. In this case: ↓ Detach ground line from on-board electrical system battery. |
AR54.10-P-0003GZ |
| 6 | Unscrew bolt (2) | *BA54.10-P-1013-01C | |
| 7 | Detach positive line | ||
| 8 | Pull out bleed hose (3) | ||
| 9 | Remove bolt (4) from bracket (5) | ||
| 10 | Swivel bracket (5) upwards | ||
| 11 | Remove additional battery for ECO start/stop function (G1/13) from the battery carrier | ||
| 12 | Install in the reverse order |
BATTERY
| Number | Designation | Model 166 | ||
|---|---|---|---|---|
| BA54.10-P-1013-01C | Screw/bolt, battery cable to battery terminal for additional battery | M6 | Nm | 6 |
