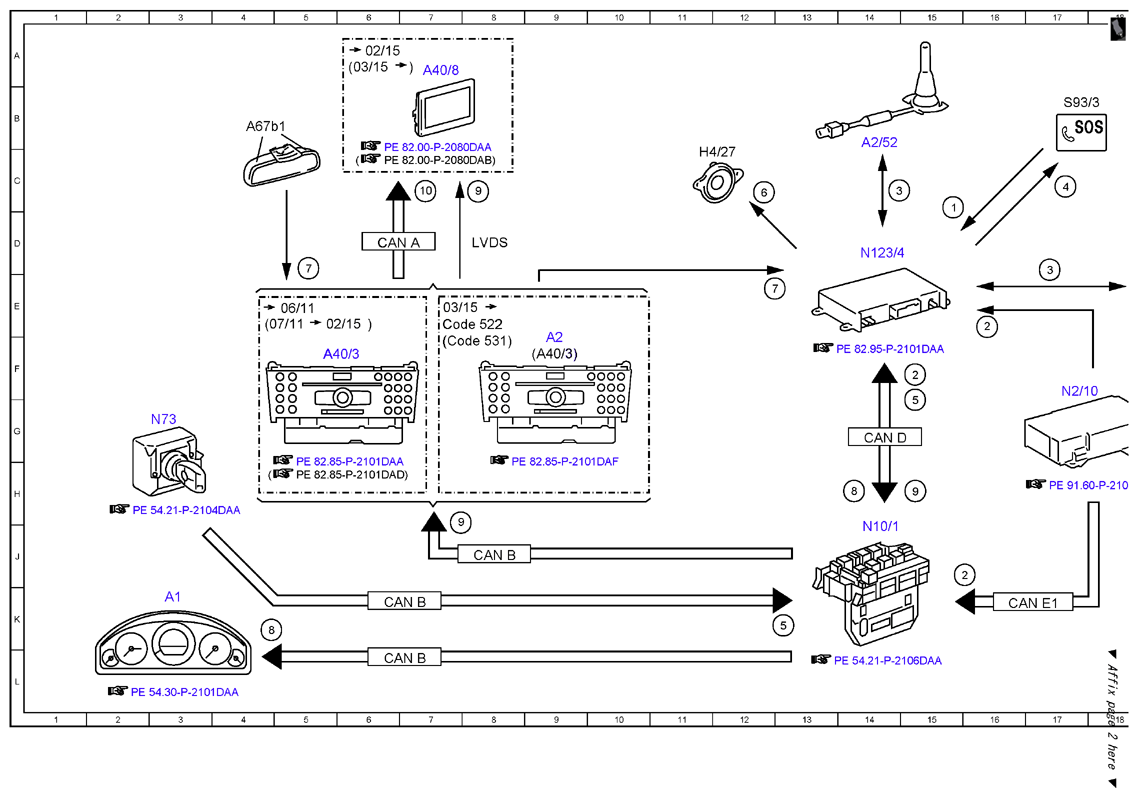

Electrical function diagram for manual or automatic emergency call, function - PE82.95-P-2066-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 348 (Emergency call/assistant system) without CODE 347 (Ecall emergency call system, Europe)
MODEL 212 with CODE 359 (TELE AID emergency call system) without CODE 347 (Ecall emergency call system, Europe)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Manual emergency call, signal | 15C |
| 10 | Switch-on request, signal | 7C |
| 2 | Crash, signal | 15F |
| 2 | Crash, signal | 16J |
| 2 | Crash, signal | 16E |
| 3 | Telephone, signal | 14C |
| 3 | Telephone, signal | 17D |
| 4 | Status indication, signal | 17C |
| 5 | Circuit 15R, status | 13K |
| 5 | Circuit 15R, status | 15G |
| 6 | Voice output, signal | 12C |
| 7 | Voice input, signal | 5D |
| 7 | Voice input, signal | 12E |
| 8 | Instrument cluster, message | 4K |
| 8 | Instrument cluster, message | 14H |
| 9 | Audio/COMAND display, message | 7J |
| 9 | Audio/COMAND display, message | 8C |
| 9 | Audio/COMAND display, message | 15H |
| A1 | Instrument cluster | 3K |
| A2 | Radio | 9F |
| A2/52 | Emergency call system antenna | 14B |

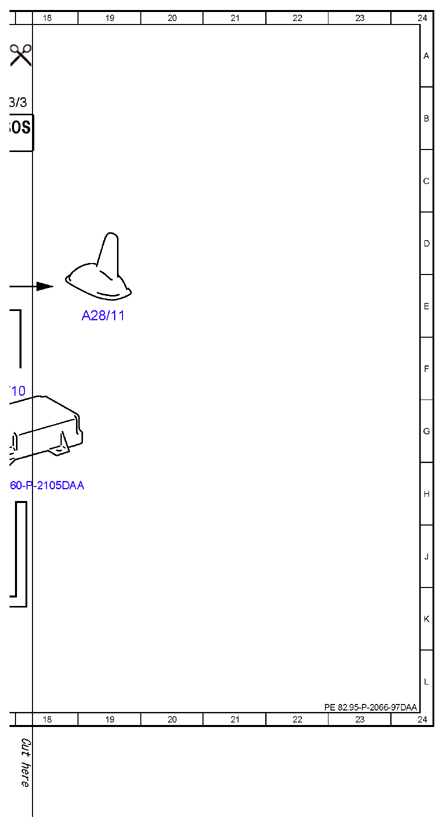

| A28/11 | Multifunction antenna | 19E |
| A40/3 | COMAND control unit | 5F |
| A40/3 | COMAND control unit | 9F |
| A40/8 | Audio/COMAND display | 7A |
| A67b1 | Hands-free system microphone | 4B |
| CAN A | Telematics CAN | 6D |
| CAN B | Interior CAN | 6L |
| CAN B | Interior CAN | 8J |
| CAN B | Interior CAN | 6K |
| CAN D | Diagnostic CAN | 14G |
| CAN E1 | Chassis CAN 1 | 16K |
| Code 522 | Audio 20 radio | 7E |
| Code 531 | COMAND APS | 7F |
| H4/27 | Center instrument panel speaker | 11C |
| LVDS | Low voltage differential signal | 8D |
| N10/1 | Front SAM control unit with fuse and relay module | 14J |
| N123/4 | Emergency call system control unit | 14D |
| N2/10 | Supplemental restraint system control unit | 17F |
| N73 | Electronic ignition switch control unit | 3G |
| S93/3 | Emergency call system button | 17B |
