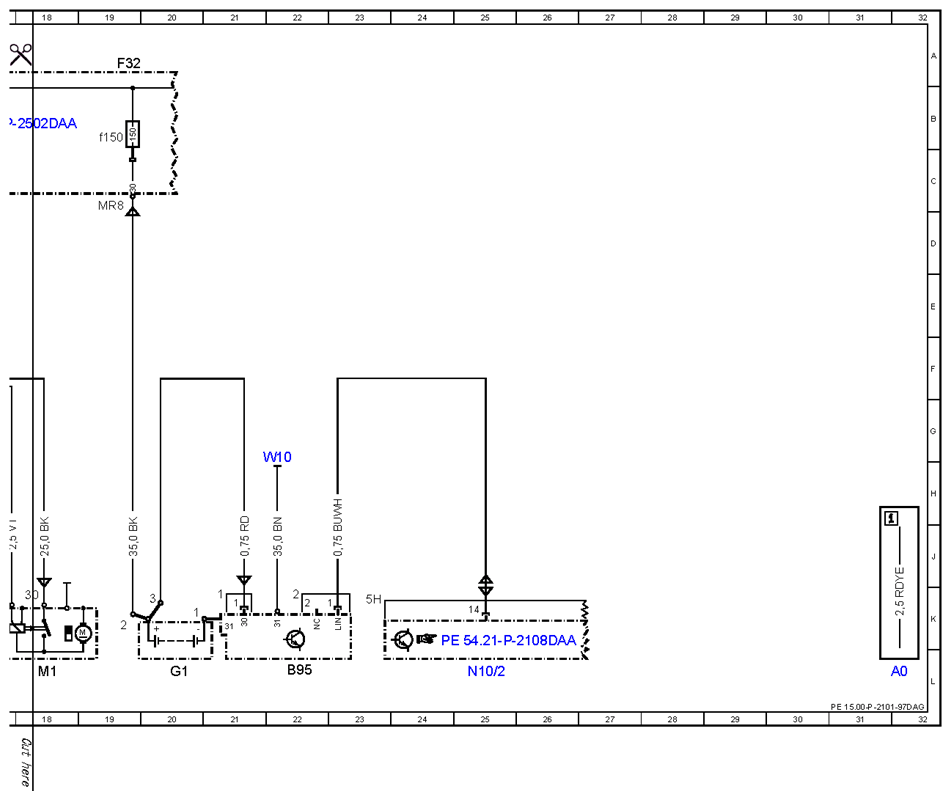

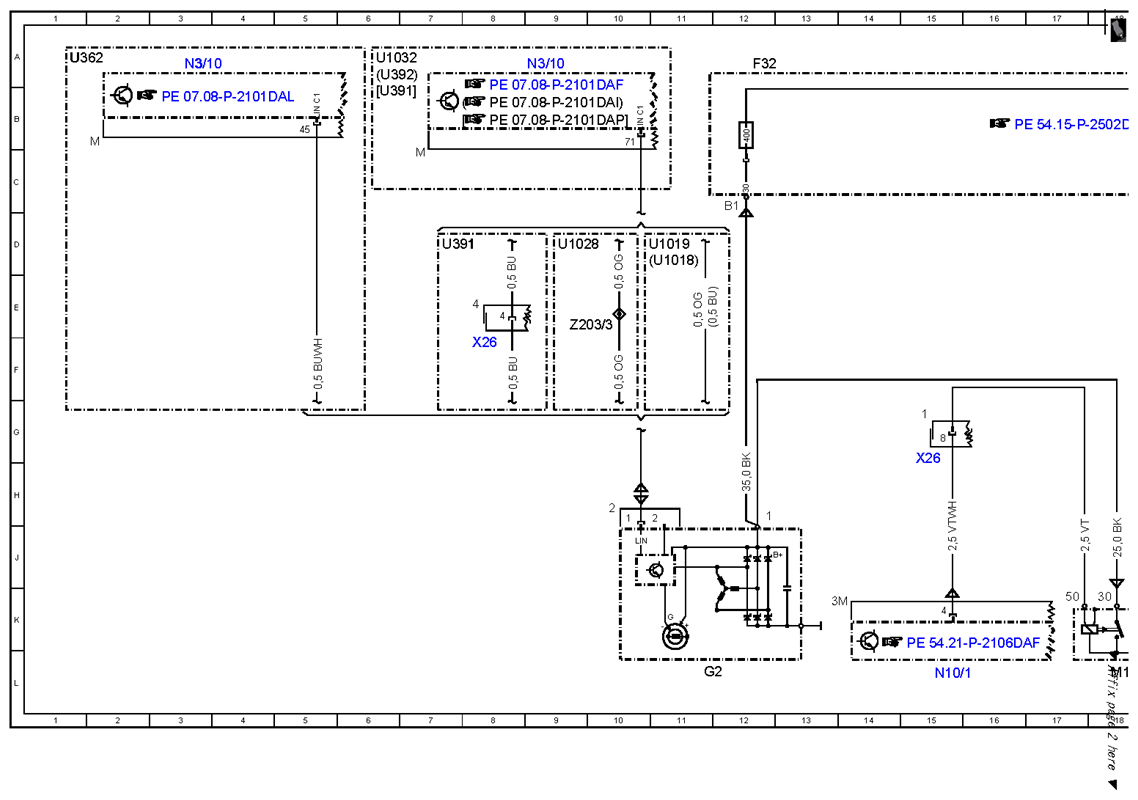

Wiring diagram of starter, alternator, battery - PE15.00-P-2101-97DAG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 157, 274, 276, 278 in MODEL 212 (except 212.095) up to model year 2015
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B95 | Battery sensor | 22L |
| F32 | Front electrical prefuse box | 12A |
| F32 | Front electrical prefuse box | 19A |
| F32f150 | Pyrofuse 150 | 19B |
| G1 | On-board electrical system battery | 20L |
| G2 | Alternator | 11L |
| M1 | Starter | 18L |
| N10/1 | Front SAM control unit with fuse and relay module | 15L |
| N10/2 | Rear SAM control unit with fuse and relay module | 25L |
| N3/10 | ME-SFI [ME] control unit | 9A |
| N3/10 | ME-SFI [ME] control unit | 3A |
| U1018 | Valid for gasoline engine 276 | 10D |
| U1019 | Valid for gasoline engine 278 | 10D |
| U1028 | Valid for engine 157 | 9D |
| U1032 | Valid for engine 278 and 157 | 6A |
| U362 | Valid for gasoline engine 274 | 1A |
| U391 | Valid for gasoline engine 276.8 | 7D |
| U391 | Valid for gasoline engine 276.8 | 6B |
| U392 | Valid for gasoline engine 276 except gasoline engine 276.8 | 6A |
| W10 | Right front battery ground point | 22G |
| X26 | Interior and engine wiring harness electrical connector | 15H |
| X26 | Interior and engine wiring harness electrical connector | 8F |
| Z203/3 | Alternator LIN signal connector sleeve | 10E |
