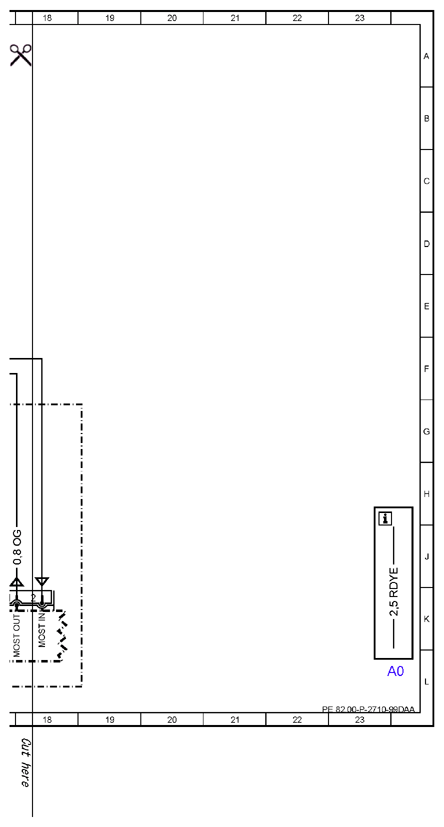

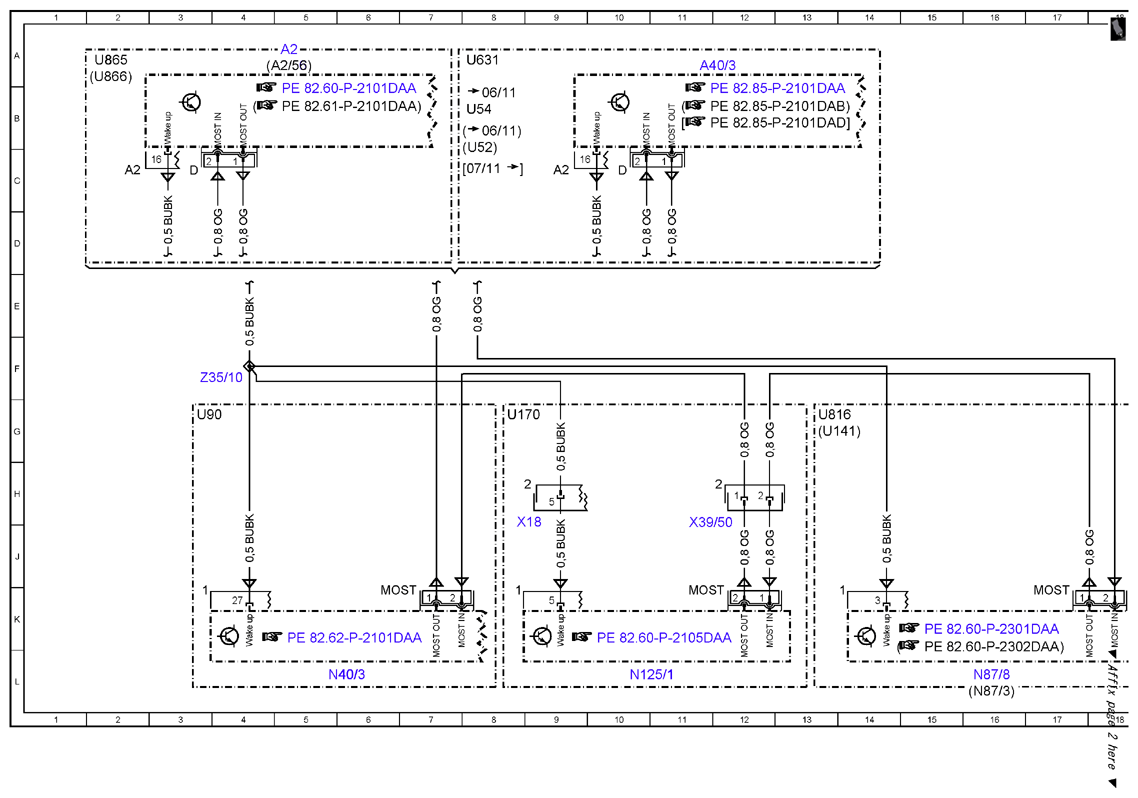

Wiring diagram of MOST bus - PE82.00-P-2710-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to 3/1/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 24L |
| A2 | Radio | 5A |
| A2/56 | Radio with auto pilot system | 5A |
| A40/3 | COMAND control unit | 11A |
| MOST | Media Oriented System Transport | 6K |
| MOST | Media Oriented System Transport | 12K |
| MOST | Media Oriented System Transport | 17K |
| N125/1 | Media interface control unit | 10L |
| N40/3 | Sound system amplifier control unit | 6L |
| N87/3 | Digital Audio Broadcasting control unit | 16L |
| N87/8 | SDAR control unit / high definition tuner | 16L |
| U141 | Valid for Digital Audio Broadcasting | 13G |
| U170 | Valid for media interface | 8G |
| U52 | Valid for Japan | 8C |
| U54 | Valid for all except Japan | 8B |
| U631 | Valid for COMAND | 8A |
| U816 | Valid for satellite digital audio radio (SDAR) | 13G |
| U865 | Valid for Audio 20 | 2A |
| U866 | Valid for Audio 50 | 2A |
| U90 | Valid for sound system | 3G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 9J |
| X39/50 | MOST electrical connector | 11J |
| Z35/10 | MOST wake-up signal connector sleeve | 4F |
