Connector separation point wiring diagram - PE54.18-P-2300-97DAE

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212 X35/3, X35/4

Code:	Designation:	Position:
A0	Color code key	80L
A17/3	Left rear KEYLESS GO door handle	23L
A17/4	Right rear KEYLESS GO door handle	60L
A2	Radio	27A
A2	Radio	63A
A2/39	Left rear door KEYLESS GO antenna	22L
A2/41	Right rear door KEYLESS GO antenna	58L
A2/56	Radio with auto pilot system	27A
A2/56	Radio with auto pilot system	63A
A40/3	COMAND control unit	32A
A40/3	COMAND control unit	68A
A85/3	Left rear door lock	1L
A85/3s1	Left rear door rotary tumbler switch	2L
A85/4	Right rear door lock	38L
A85/4s1	Right rear door rotary tumbler switch	39L
B48/10	Right rear door pressure sensor	56L
B48/9	Left rear door pressure sensor	19L
CAN B	Interior CAN	13B
CAN B	Interior CAN	50B
H4/3h1	Left rear door tweeter	30L
H4/3h2	Left rear door bass speaker	29L
H4/4h1	Right rear door tweeter	67L
H4/4h2	Right rear door bass speaker	66L
H4/70	Left rear door sound system tweeter	33L
H4/71	Right rear door sound system tweeter	70L
H4/80	Left rear door sound system midrange speaker	31L
H4/81	Right rear door sound system midrange speaker	68L
N10/1	Front SAM control unit with fuse and relay module	10A
N10/1	Front SAM control unit with fuse and relay module	47A
N10/2	Rear SAM control unit with fuse and relay module	3A
N10/2	Rear SAM control unit with fuse and relay module	40A
N2/10	Supplemental restraint system control unit	18A
N2/10	Supplemental restraint system control unit	54A
N40/3	Sound system amplifier control unit	36A
N40/3	Sound system amplifier control unit	72A
N69/3	Left rear door control unit	8L
N69/4	Right rear door control unit	45L
N69/5	KEYLESS-GO control unit	22A
N69/5	KEYLESS-GO control unit	59A
U12	Valid for left-hand drive vehicles	5A
U12	Valid for left-hand drive vehicles	43A
U12	Valid for left-hand drive vehicles	41A
U13	Valid for right-hand drive vehicles	7A
U13	Valid for right-hand drive vehicles	5A
U13	Valid for right-hand drive vehicles	41A
U500	Not valid for sound system	28H
U500	Not valid for sound system	24A
U500	Not valid for sound system	65H
U500	Not valid for sound system	61A
U500	Not valid for sound system	29A
U500	Not valid for sound system	65A
U52	Valid for Japan	29C
U52	Valid for Japan	65C
U54	Valid for all except Japan	29B
U54	Valid for all except Japan	65B
U596	Valid for rear sidebag	52A
U596	Valid for rear sidebag	15A
U631	Valid for COMAND	29A
U631	Valid for COMAND	65A
U82	Valid for KEYLESS GO	20A
U82	Valid for KEYLESS GO	57A
U865	Valid for Audio 20	24B
U865	Valid for Audio 20	61B
U866	Valid for Audio 50	24B
U866	Valid for Audio 50	61B
U90	Valid for sound system	31H
U90	Valid for sound system	34A
U90	Valid for sound system	68H
U90	Valid for sound system	70A
U921	Not valid for England	1H
U921	Not valid for England	37H
U928	Valid for England	1H
U928	Valid for England	37H
W18	Left front seat crossmember ground point	2E
W19	Right front seat crossmember ground point	39E
X30/32	Left vehicle floor interior CAN voltage distributor electrical connector	13A
X30/33	Right vehicle floor interior CAN voltage distributor electrical connector	50A
X35/3	Left rear door electrical connector	1H
X35/4	Right rear door electrical connector	38H

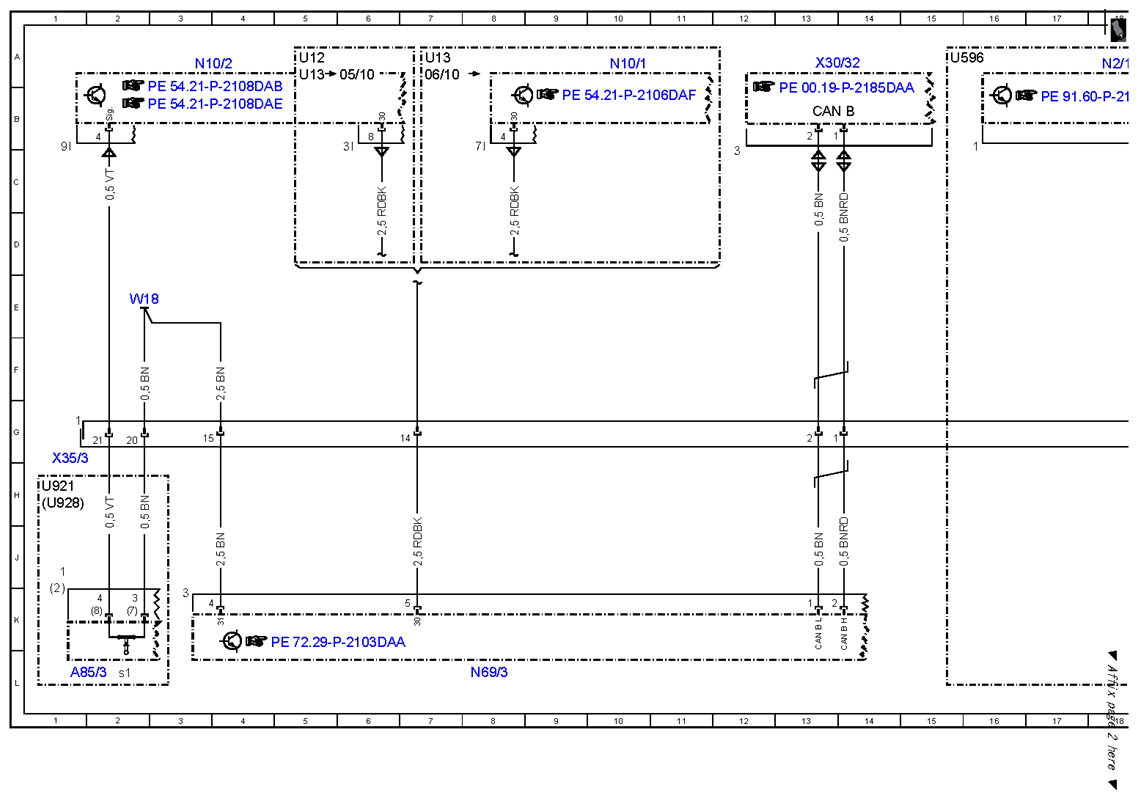

Fig 1: Connector Separation Point - Wiring Diagram (1 Of 5)

Courtesy of MERCEDES-BENZ USA

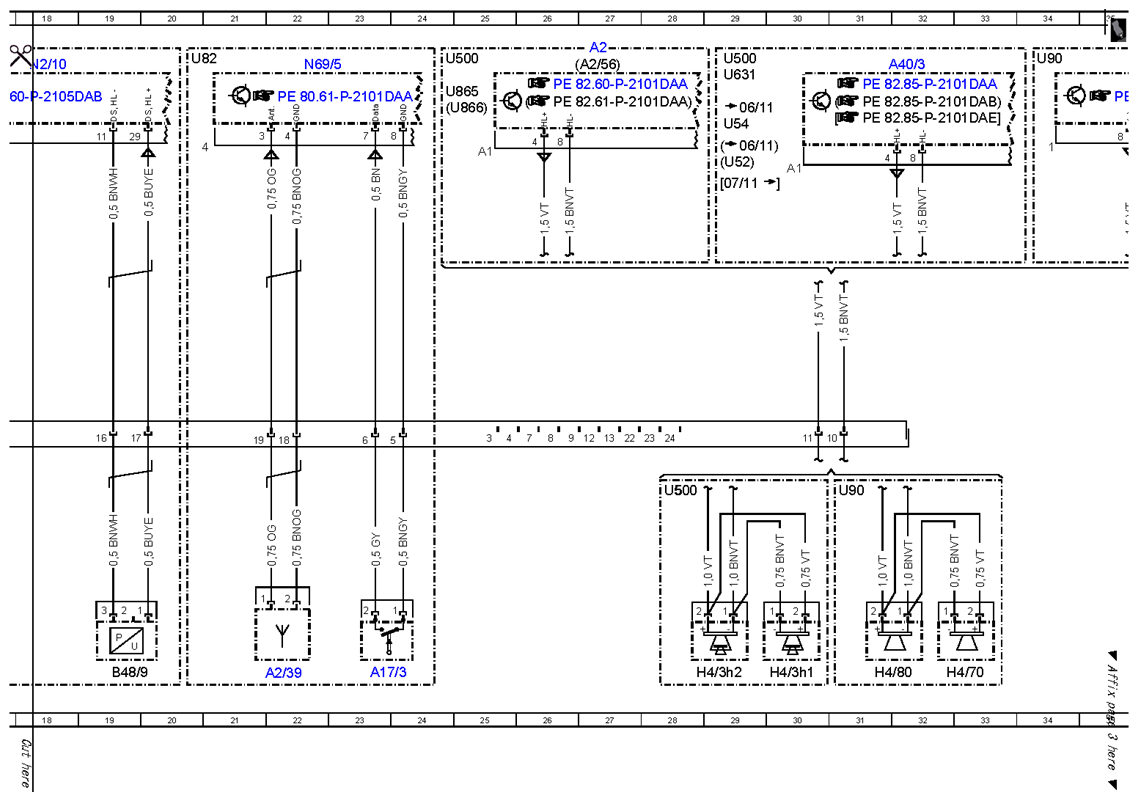

Fig 2: Connector Separation Point - Wiring Diagram (2 Of 5)

Courtesy of MERCEDES-BENZ USA

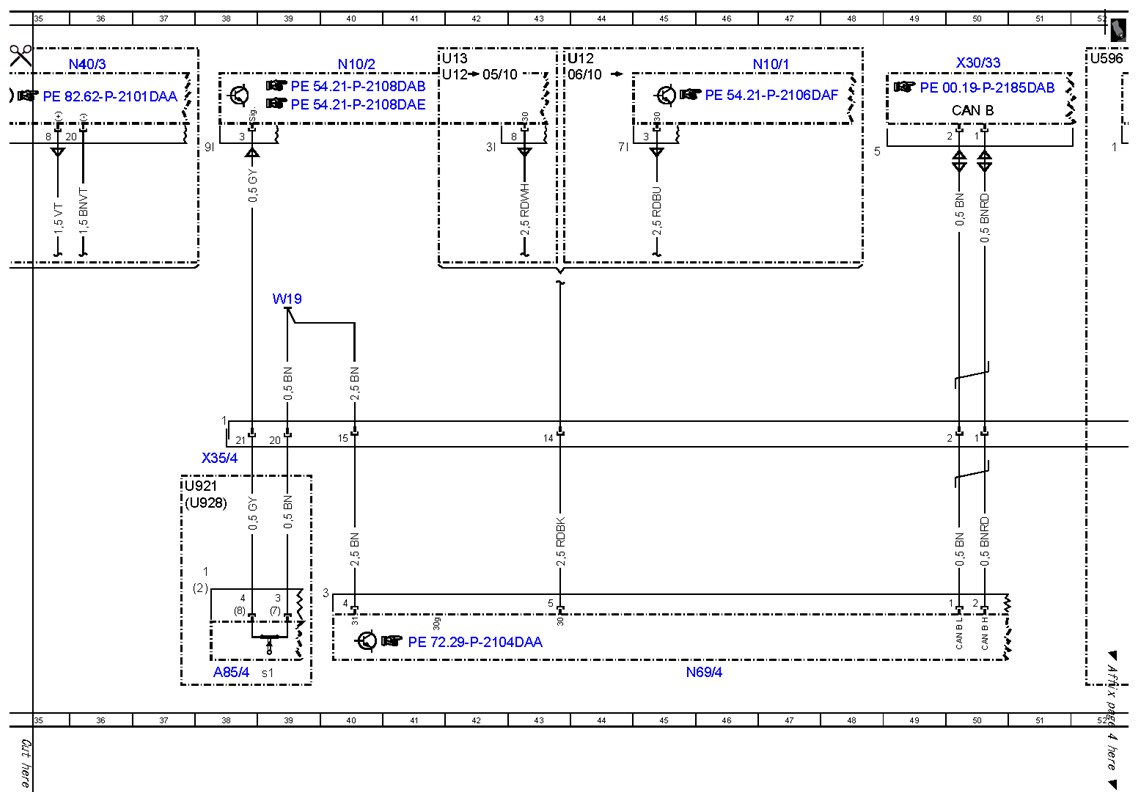

Fig 3: Connector Separation Point - Wiring Diagram (3 Of 5)

Courtesy of MERCEDES-BENZ USA

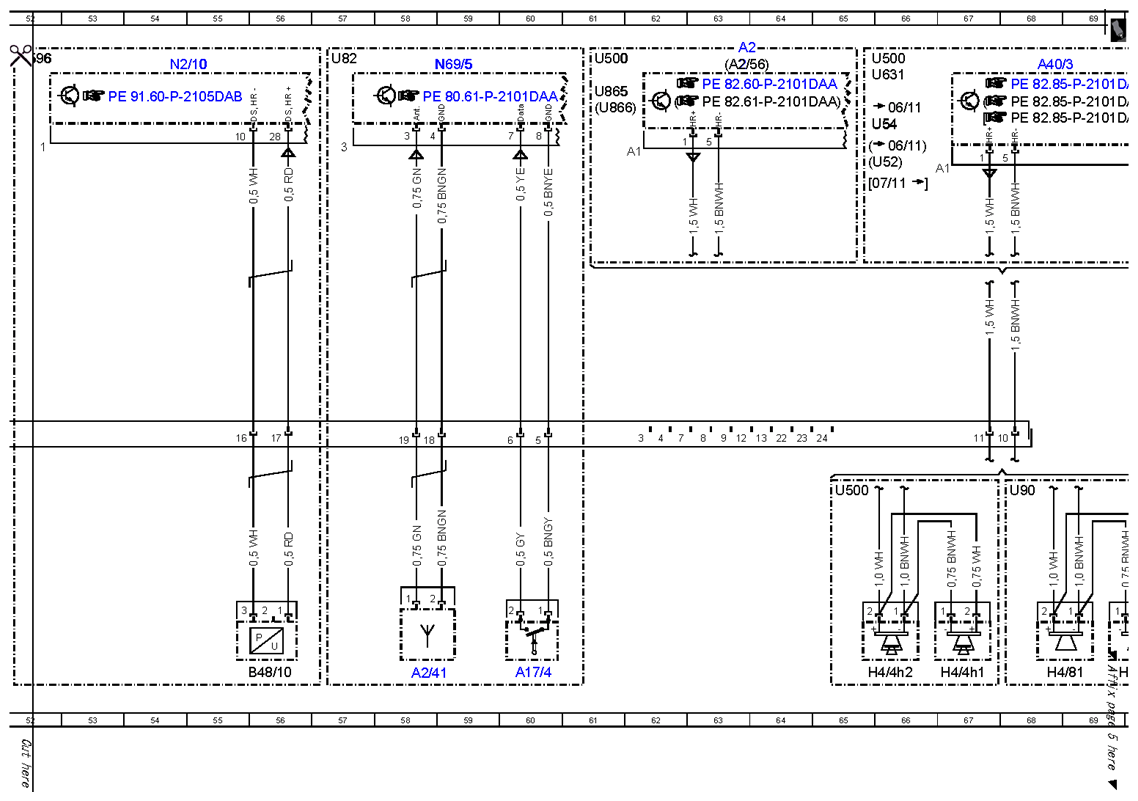

Fig 4: Connector Separation Point - Wiring Diagram (4 Of 5)

Courtesy of MERCEDES-BENZ USA

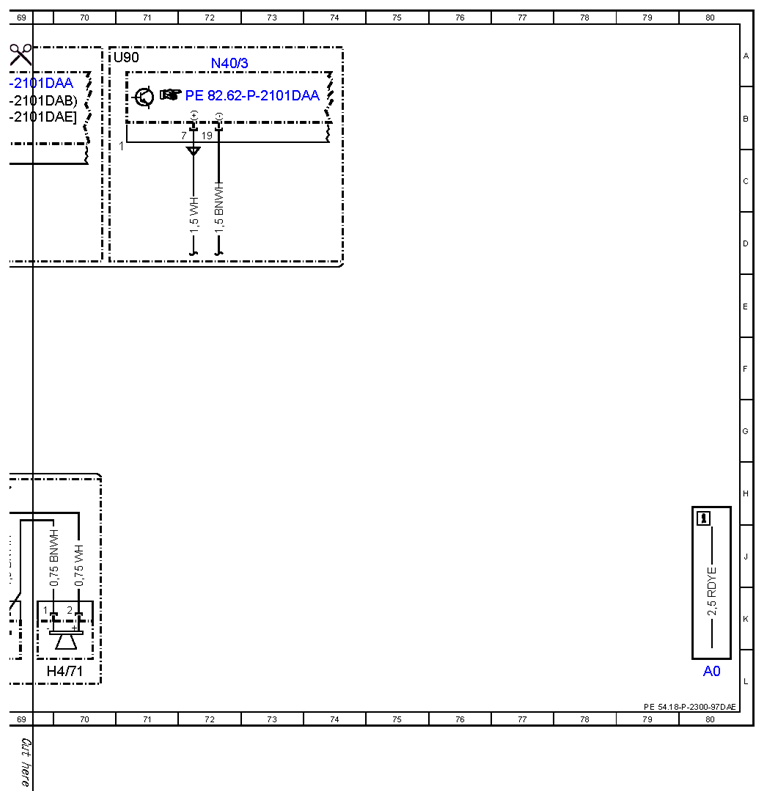

Fig 5: Connector Separation Point - Wiring Diagram (5 Of 5)

Courtesy of MERCEDES-BENZ USA
