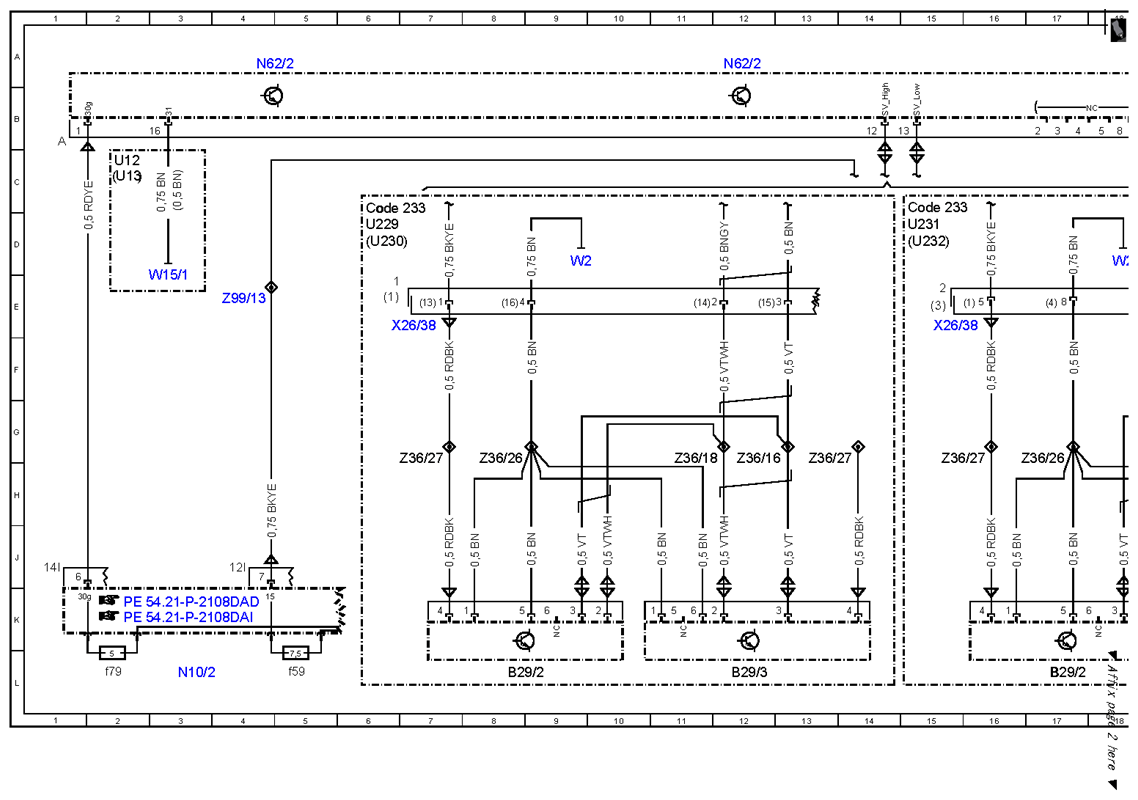

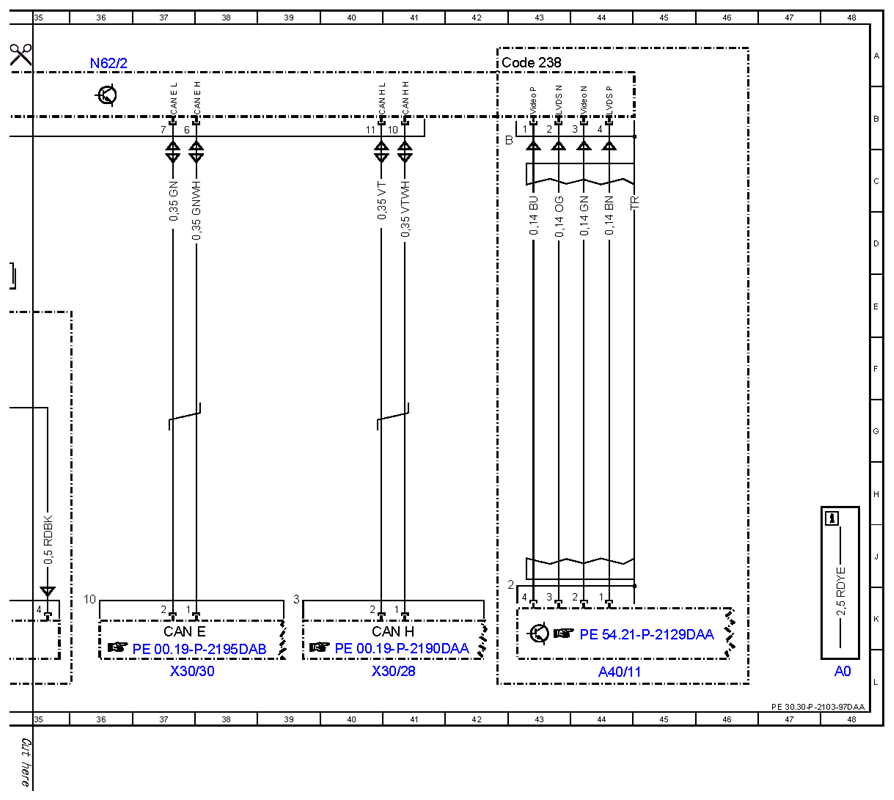

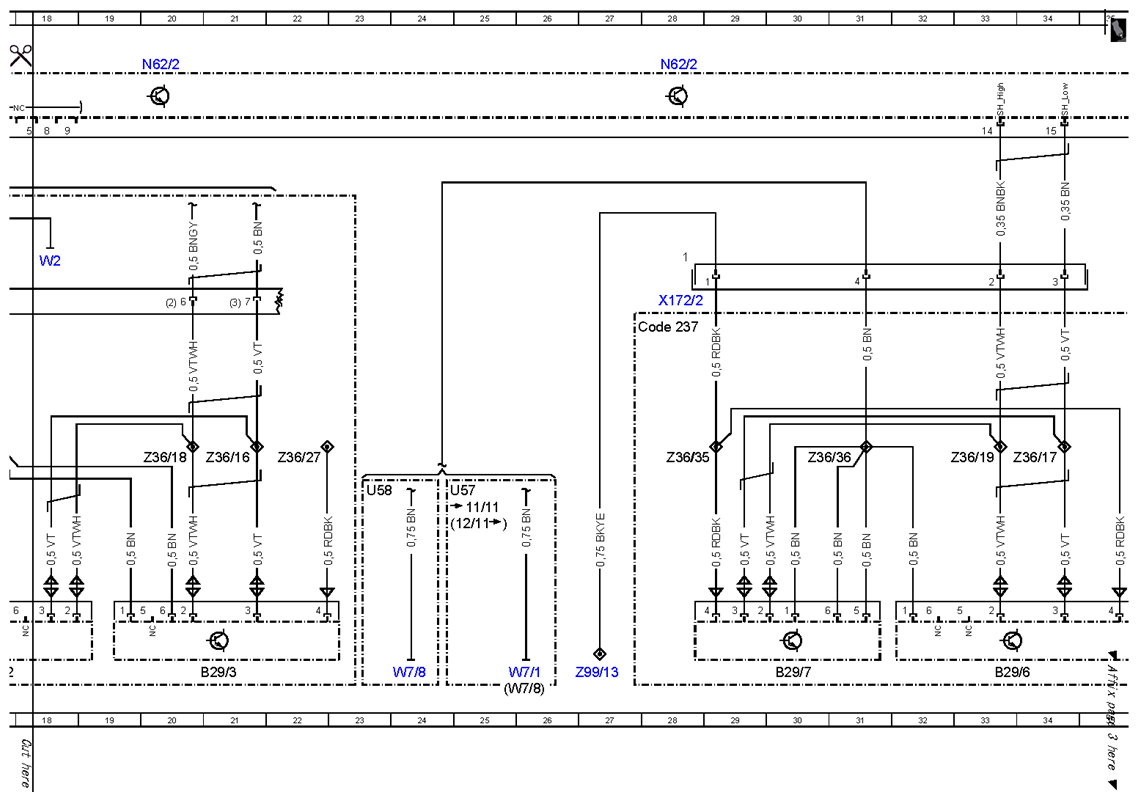

Wiring diagram for the video and radar sensor system control unit - PE30.30-P-2103-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156, 157, 271, 272, 273, 276, 278, 642, 651 in MODEL 212 up to model year 2013
with CODE 233 (DISTRONIC PLUS)
with CODE 237 (Active Blind Spot Assist)
with CODE 238 (Active lane keeping Assist) Control unit N62/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A40/11 | Multifunction camera | 44L |
| B29/2 | DISTRONIC sensor (DTR) / left front bumper | 8L |
| B29/2 | DISTRONIC sensor (DTR) / left front bumper | 17L |
| B29/3 | DISTRONIC sensor (DTR) / right front bumper | 12L |
| B29/3 | DISTRONIC sensor (DTR) / right front bumper | 21L |
| B29/6 | Left rear bumper radar sensor | 33L |
| B29/7 | Right rear bumper radar sensor | 30L |
| CAN E | Chassis CAN | 37K |
| CAN H | Vehicle dynamics CAN | 41K |
| Code 233 | DISTRONIC PLUS | 6D |
| Code 233 | DISTRONIC PLUS | 15C |
| Code 237 | Active Blind Spot Assist | 27E |
| Code 238 | Active Lane Keeping Assist | 42A |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f59 | Fuse 59 | 5L |
| N10/2f79 | Fuse 79 | 2L |
| N62/2 | Video and radar sensor system control unit | 4A |
| N62/2 | Video and radar sensor system control unit | 12A |
| N62/2 | Video and radar sensor system control unit | 20A |
| N62/2 | Video and radar sensor system control unit | 28A |
| N62/2 | Video and radar sensor system control unit | 36A |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 2C |
| U229 | Valid for short range radar with active Park Assist without pedestrian protection | 6D |
| U230 | Valid for short range radar with active Park Assist and pedestrian protection | 6D |
| U231 | Valid for short range radar with pedestrian protection without active Park Assist | 15D |
| U232 | Valid for short range radar without active Park Assist | 15D |
| U57 | Valid for model 212.2 | 24H |
| U58 | Valid for model 212.0/1 | 23H |
| W15/1 | Right footwell ground point | 3E |
| W2 | Right front ground point at lamp unit | 9D |
| W2 | Right front ground point at lamp unit | 18D |
| W7/1 | Right taillamp trunk ground point | 26L |
| W7/8 | Right wheelhouse trunk ground point | 25L |
| W7/8 | Right wheelhouse trunk ground point | 24L |
| X172/2 | Rear bumper radar sensors electrical connector | 28E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 7E |
| X26/38 | Front bumper and frame wiring harness electrical connector | 15E |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 41L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 37L |
| Z36/16 | Front sensor CAN connector sleeve | 12G |
| Z36/16 | Front sensor CAN connector sleeve | 21G |
| Z36/17 | Rear sensor CAN connector sleeve | 34G |
| Z36/18 | Front sensor CAN connector sleeve | 11G |
| Z36/18 | Front sensor CAN connector sleeve | 20G |
| Z36/19 | Rear sensor CAN connector sleeve | 33G |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 8G |
| Z36/26 | Front DISTRONIC PLUS sensor ground connector sleeve | 17G |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 7G |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 13G |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 16G |
| Z36/27 | DISTRONIC front voltage supply connector sleeve | 22G |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 28G |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 31G |
| Z99/13 | Radar sensors control unit circuit 87 connector sleeve | 4E |
| Z99/13 | Radar sensors control unit circuit 87 connector sleeve | 27L |
