Adjusting fixtures for distance and comparison measurement according to the model concerned - AR40.30-P-0401-01EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

MEASURING BRIDGE CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT

Number	Designation			MODEL 212, 218
BE40.30-P-1001-10B	Dimension to be set on suspension 170 589 00 63 00	a	mm	37, 0
		b	mm	416, 0
		For picture, see		AR40.30-P-0401-01EW

MEASURING BRIDGE CHECK VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENT

Number	Designation			MODEL 212, 218
BE40.30-P-1002-10B	Dimension to be set on holding pipe 164 589 04 63 00 or holding pipe 170 589 00 63 01	a	mm	183, 0
		b	mm	196, 0
		For picture, see		AR40.30-P-0401-01EW

Fig 1: Identifying Retaining Tube (170 589 00 63 01)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Retaining Tube (164 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

The following special tools are required: mount (07) and holding tube (08) or holding tube (08).

Illustration shows holding tube 170 589 00 63 01

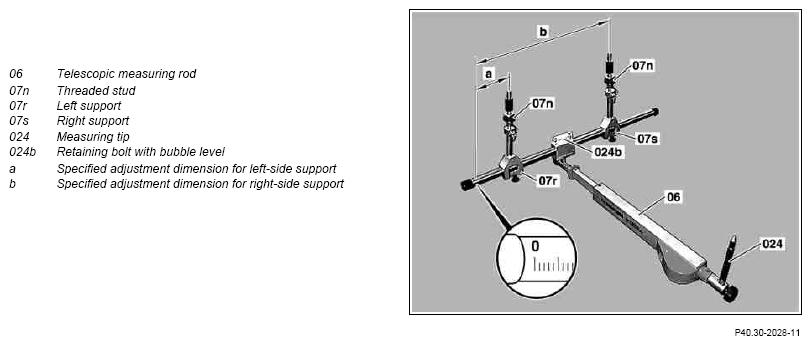

Fig 4: Measuring Tool Components

Courtesy of MERCEDES-BENZ USA

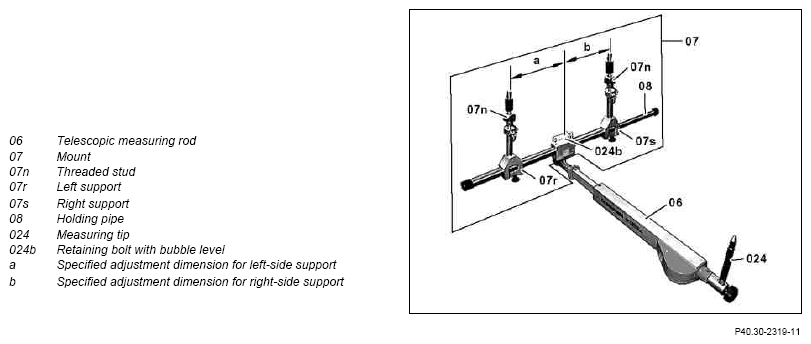

Insert holding pipe (08) into suspension (07).
Both holding pipes (08) can be used.

Illustration shows holding tube 164 589 04 63 00

Fig 5: Insert Holding Pipe Into Suspension
Courtesy of MERCEDES-BENZ USA
Slide suspension (07) as far as the end stop on the threaded bolts.
Align suspension (07) horizontally.
Set dimensions (a) and (b) on mounts (07r, 07s).

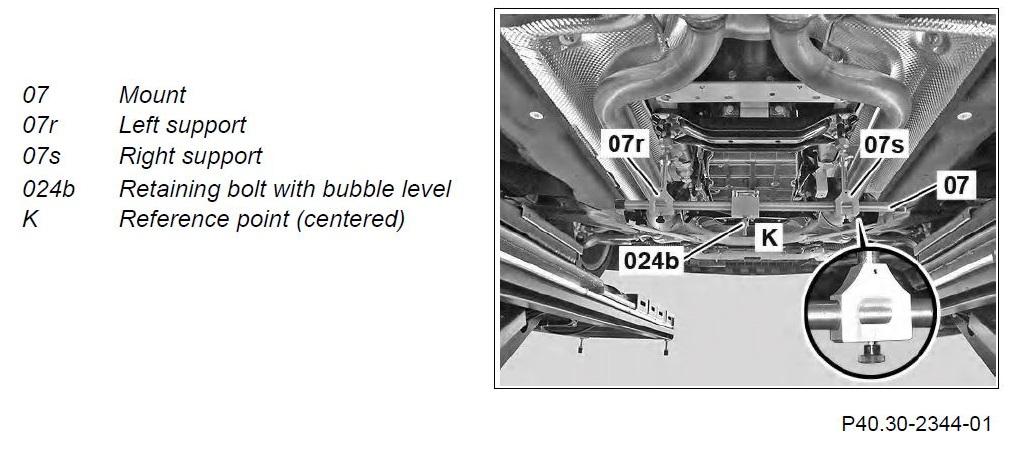

The suspension (07) enables the vehicle center to be displayed with the check point (K).

Fig 6: Suspension Dimension And Mounts
