Remove/install leak oil line to injectors - AR07.03-P-9105OGR
ENGINE 642 in MODEL 166
| Remove | |||
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. | AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1 | Remove right and left air filter housing | AR09.10-P-1150OGR | |
| 2 | Remove soundproofing from left or right cylinder head cover | ||

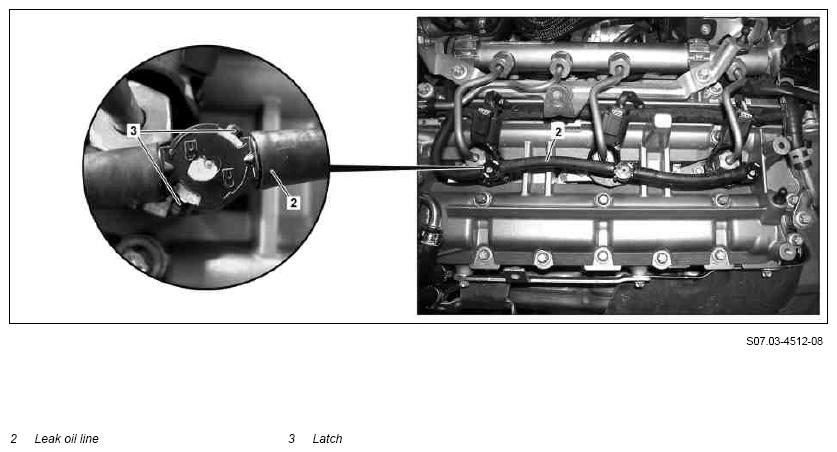

| 3 | Turn cover (3) counterclockwise and remove | ||
| 4 | Detach the leak oil line (2) | ||
| Check | |||
| 5 | Check connection for leak oil line (2) on fuel injector | ||
| Install | |||
| 6 | Install leak oil line (2) | ||
| 7 | Place plug (3) in position and turn clockwise | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Check leaktightness for a running engine |
