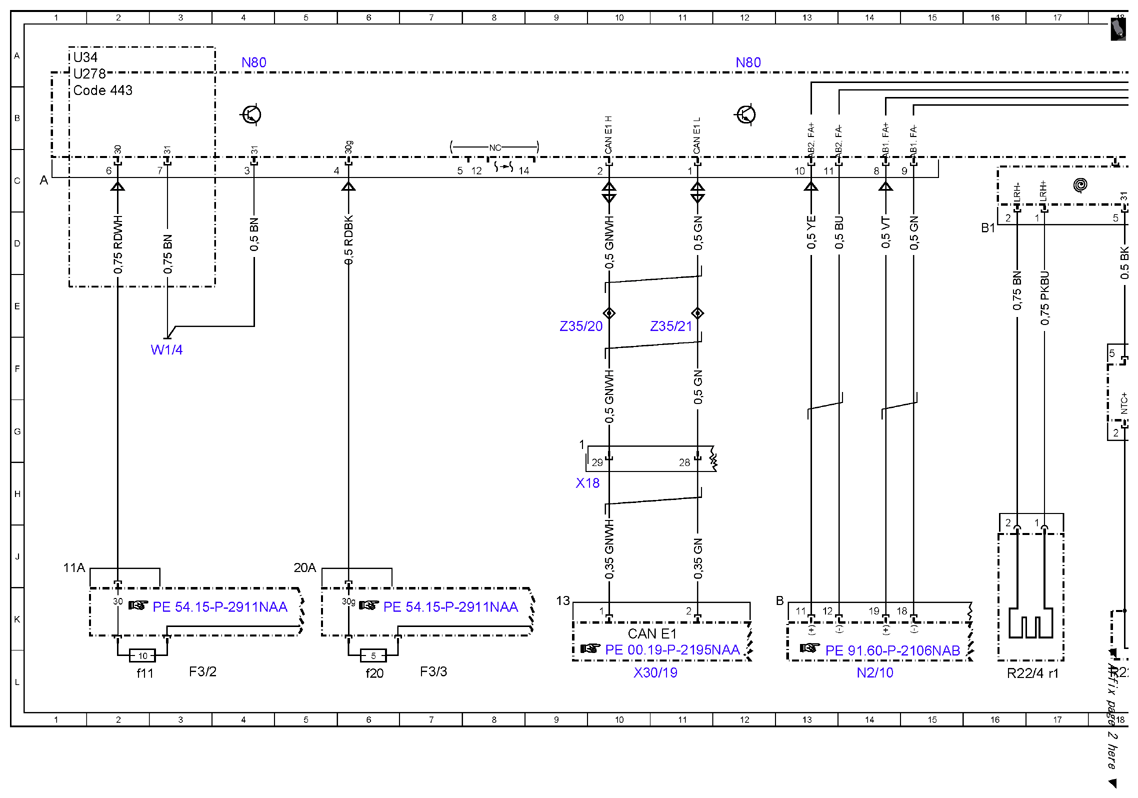

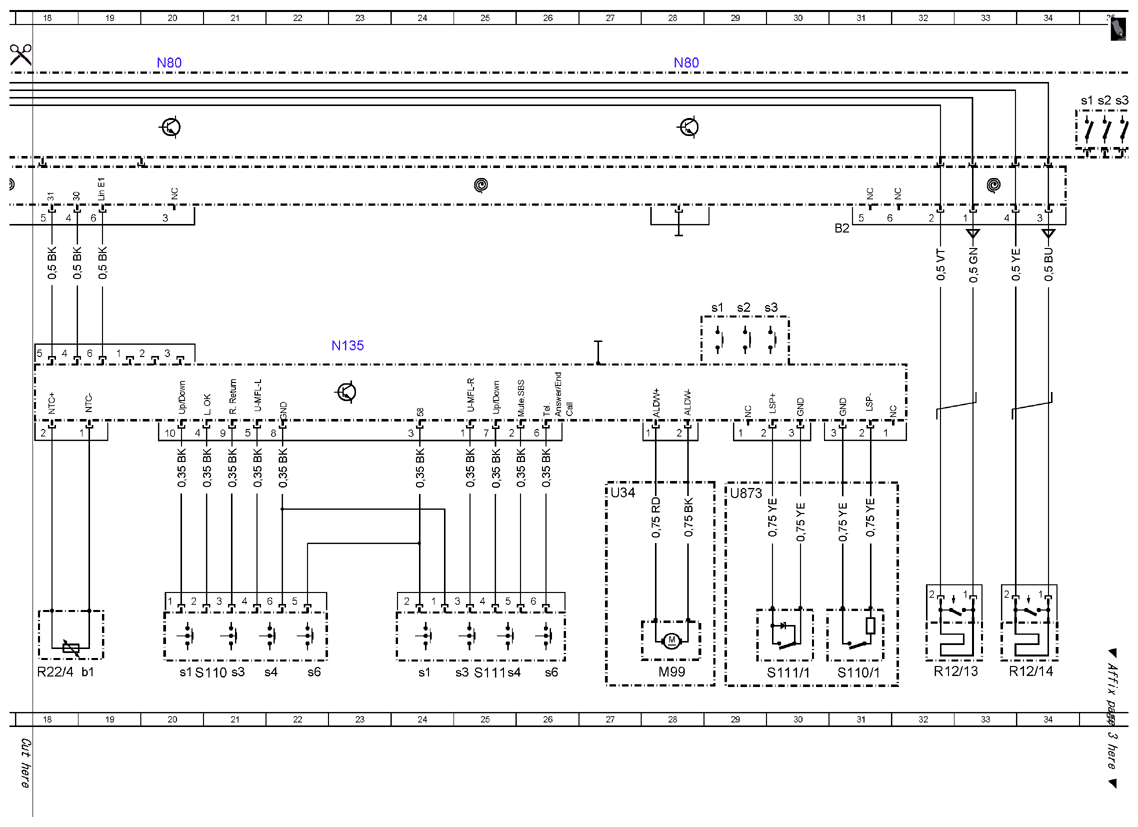

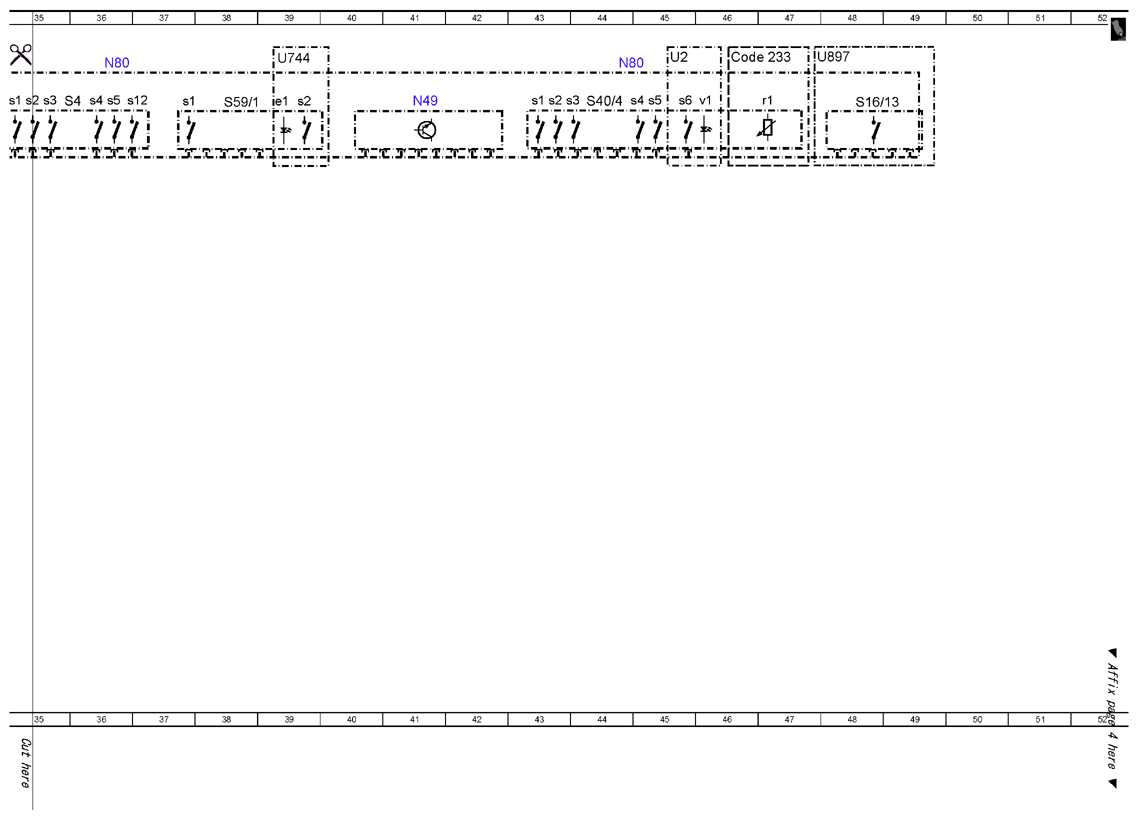

| A0 |
Color code key |
56L |
| CAN E1 |
Chassis CAN 1 |
10K |
| Code 233 |
DISTRONIC PLUS |
46A |
| Code 443 |
Steering wheel heater |
1B |
| F3/2 |
Cockpit circuit 30 fuse box |
3L |
| F3/2f11 |
Fuse 11 |
2L |
| F3/3 |
Cockpit circuit 30g fuse box |
7L |
| F3/3f20 |
Fuse 20 |
6L |
| M99 |
Steering wheel vibration motor |
28L |
| N135 |
Steering wheel electronics |
23F |
| N135s1 |
Left fanfare horn system button |
29E |
| N135s2 |
Right fanfare horn system button |
29E |
| N135s3 |
Center horns button |
30E |
| N2/10 |
Supplemental restraint system control unit |
14L |
| N49 |
Steering wheel angle sensor |
41B |
| N80 |
Steering column module control unit |
4A |
| N80 |
Steering column module control unit |
20A |
| N80 |
Steering column module control unit |
36A |
| N80 |
Steering column module control unit |
28A |
| N80 |
Steering column module control unit |
12A |
| N80 |
Steering column module control unit |
44A |
| R12/13 |
Driver airbag squib 1 |
32L |
| R12/14 |
Driver airbag squib 2 |
34L |
| R22/4 |
Steering wheel heater |
16L |
| R22/4 |
Steering wheel heater |
18L |
| R22/4b1 |
Heating element temperature sensor |
19L |
| R22/4r1 |
Steering wheel heater heating element |
17L |
| S110 |
Left multifunction steering wheel button group |
21L |
| S110/1 |
Steering wheel downshift button |
31L |
| S110s1 |
Scroll forward/back button |
20L |
| S110s3 |
System selection button |
21L |
| S110s4 |
"Back" and voice control system OFF button |
22L |
| S110s6 |
OK button |
22L |
| S111 |
Right multifunction steering wheel button group |
25L |
| S111/1 |
Steering wheel upshift button |
30L |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
24L |
| S111s3 |
Accept/terminate phone call button |
25L |
| S111s4 |
Voice control system ON button |
25L |
| S111s6 |
Mute button |
26L |
| S16/13 |
DIRECT SELECT lever |
48B |
| S4 |
Combination switch |
35B |
| S40/4 |
Cruise control lever |
44B |
| S40/4r1 |
DISTRONIC control |
47B |
| S40/4s1 |
Resume from memory switch |
43B |
| S40/4s2 |
Decelerate and set switch |
43B |
| S40/4s3 |
Accelerate and set switch |
43B |
| S40/4s4 |
OFF switch |
45B |
| S40/4s5 |
Indicator switch |
45B |
| S40/4s6 |
SPEEDTRONIC switch |
45B |
| S40/4v1 |
SPEEDTRONIC light emitting diode |
46B |
| S4s1 |
Turn signal lamps switch |
35B |
| S4s12 |
Liftgate windshield washer system switch |
36B |
| S4s2 |
Headlamp flasher/high beam switch |
35B |
| S4s3 |
Low beam switch |
35B |
| S4s4 |
Windshield washer system switch |
36B |
| S4s5 |
Wipe switch |
36B |
| S59/1 |
Steering column adjustment and steering wheel heater switch |
38B |
| S59/1e1 |
Steering wheel heater indicator lamp |
39B |
| S59/1s1 |
Steering column adjustment switch |
37B |
| S59/1s2 |
Steering wheel heater switch |
39B |
| U2 |
Valid for all except USA |
45A |
| U278 |
Valid for active Lane Keeping Assist |
1A |
| U34 |
Valid for automatic lane recognition |
27H |
| U34 |
Valid for automatic lane recognition |
1A |
| U744 |
Valid for steering wheel heater |
39A |
| U873 |
Valid for steering wheel shift buttons |
29H |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
47A |
| W1/4 |
Cockpit ground point |
3F |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
10H |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
10L |
| Z35/20 |
Chassis CAN high connector sleeve 1 |
9E |
| Z35/21 |
Chassis CAN low connector sleeve 1 |
11E |
