| A0 |
Color code key |
80L |
| A45 |
Fanfare horns and airbag clock spring contact |
32D |
| A45 |
Fanfare horns and airbag clock spring contact |
52D |
| A45 |
Fanfare horns and airbag clock spring contact |
61D |
| CAN E |
Chassis CAN |
15K |
| CAN E |
Chassis CAN |
19K |
| Code 428 |
Steering wheel shift paddles |
34H |
| Code 428 |
Steering wheel shift paddles |
58H |
| Code 443 |
Steering wheel heater |
9E |
| Code 443 |
Steering wheel heater |
4E |
| Code 443 |
Steering wheel heater |
45H |
| Code 443 |
Steering wheel heater |
45B |
| Code 476 |
Automatic lane detection |
9E |
| Code 476 |
Automatic lane detection |
56H |
| Code 476 |
Automatic lane detection |
4E |
| F34 |
Interior fuse box |
11L |
| F34f123 |
Fuse 123 |
10K |

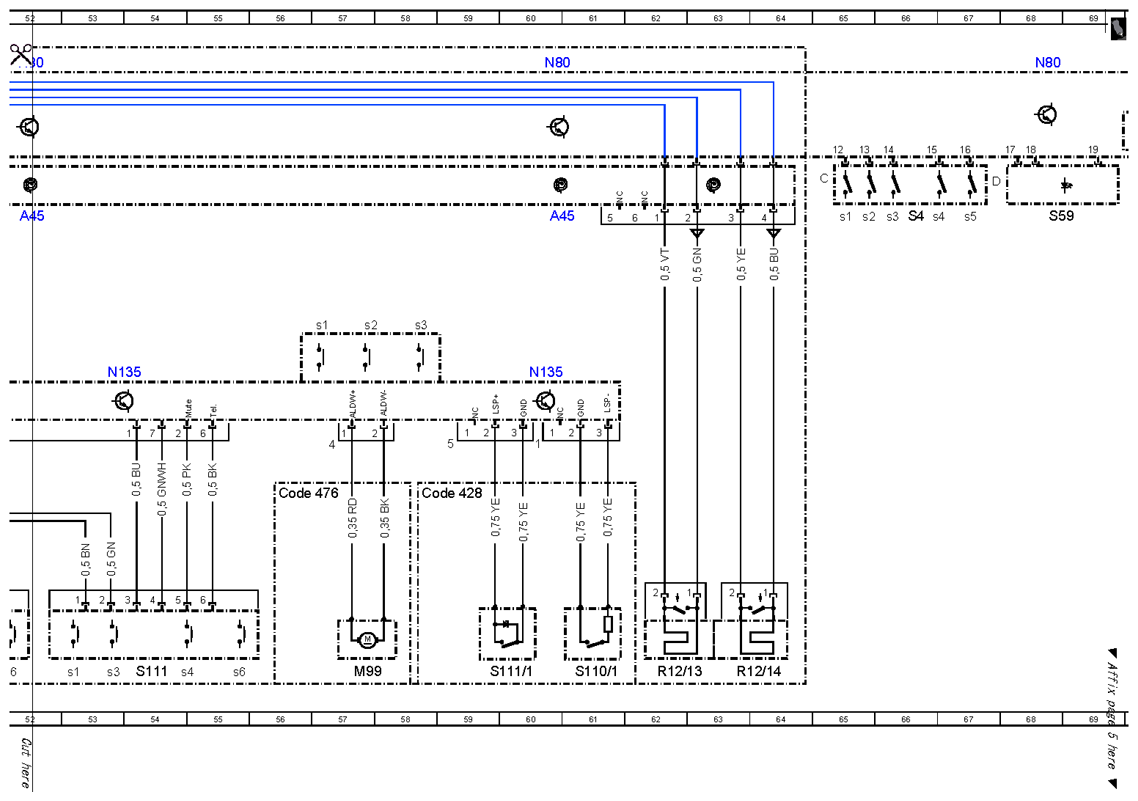

| M99 |
Steering wheel vibration motor |
57L |

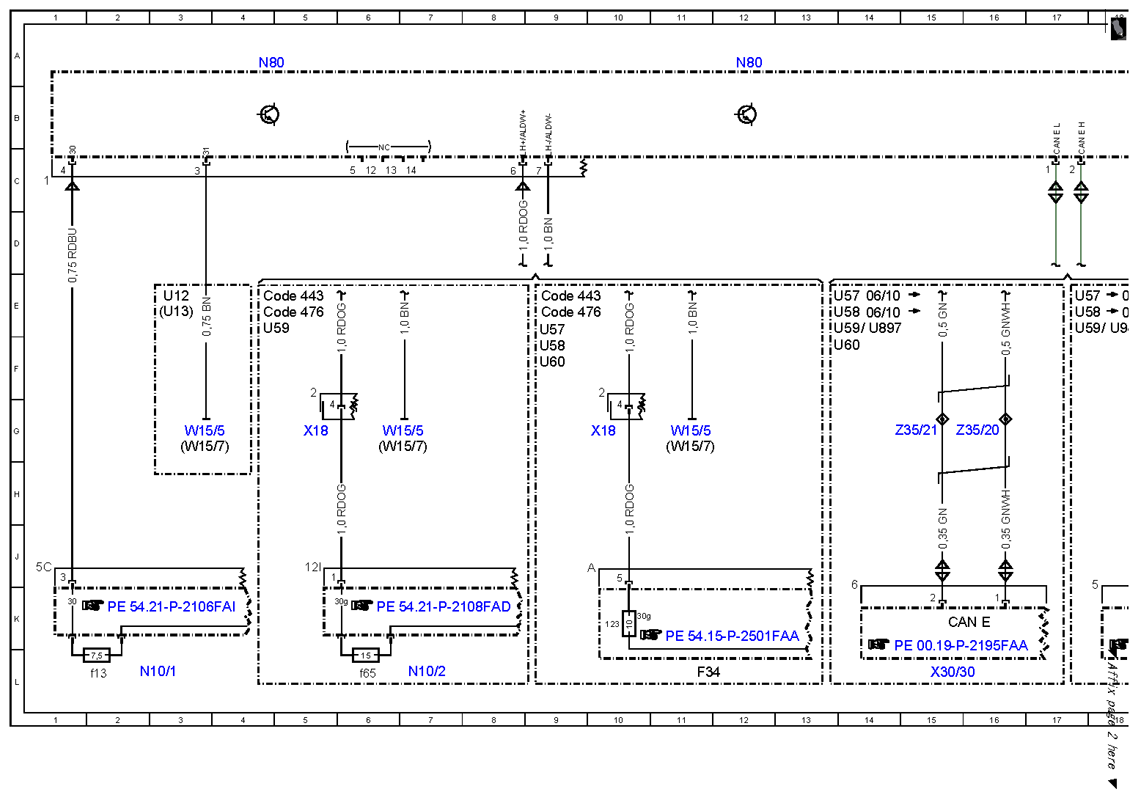

| N10/1 |
Front SAM control unit with fuse and relay module |
2L |
| N10/1f13 |
Fuse 13 |
2L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7L |
| N10/2f65 |
Fuse 65 |
6L |
| N135 |
Steering wheel electronics |
26G |
| N135 |
Steering wheel electronics |
53F |
| N135 |
Steering wheel electronics |
60F |
| N135s1 |
Left fanfare horn system button |
32E |
| N135s1 |
Left fanfare horn system button |
57E |
| N135s2 |
Right fanfare horn system button |
33E |
| N135s2 |
Right fanfare horn system button |
57E |
| N135s3 |
Center horns button |
34E |
| N135s3 |
Center horns button |
58E |
| N2/10 |
Supplemental restraint system control unit |
23L |
| N2/10 |
Supplemental restraint system control unit |
43L |
| N49 |
Steering angle sensor |
71A |
| N80 |
Steering column module control unit |
4A |
| N80 |
Steering column module control unit |
12A |
| N80 |
Steering column module control unit |
28A |
| N80 |
Steering column module control unit |
20A |
| N80 |
Steering column module control unit |
36A |
| N80 |
Steering column module control unit |
44A |
| N80 |
Steering column module control unit |
52A |
| N80 |
Steering column module control unit |
60A |
| N80 |
Steering column module control unit |
68A |
| N80 |
Steering column module control unit |
75A |

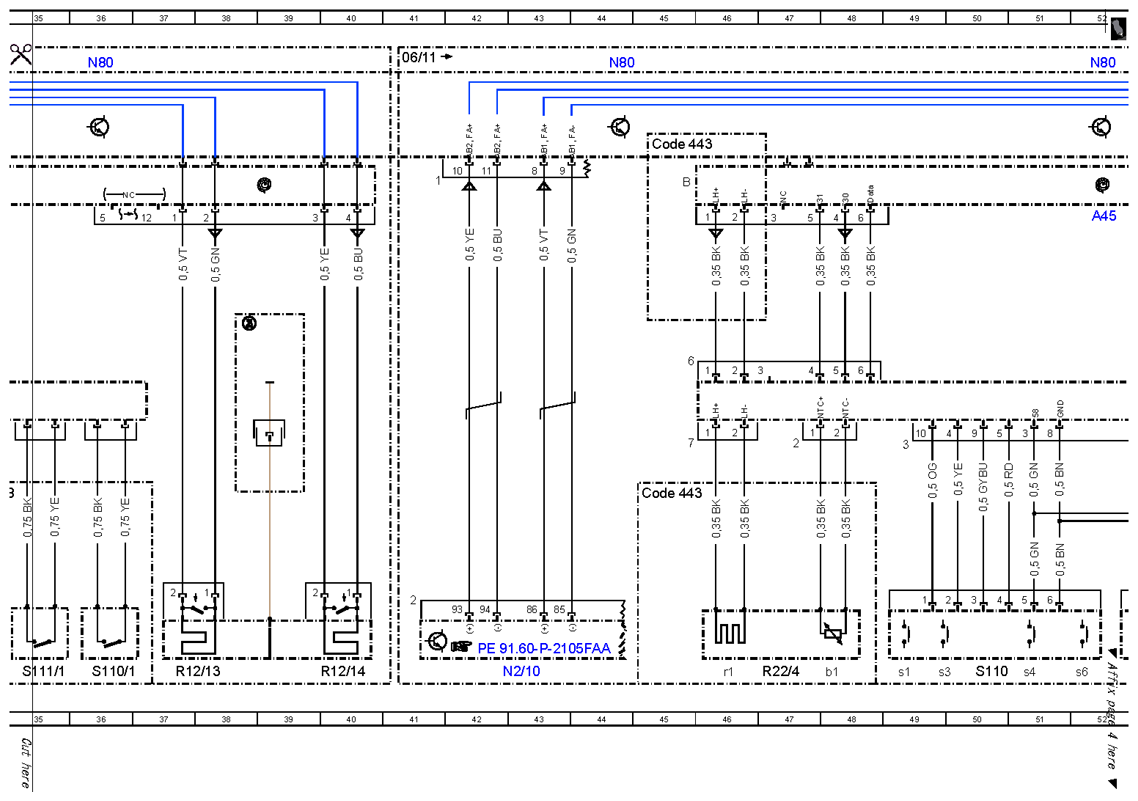

| R12/13 |
Driver airbag squib 1 |
37L |
| R12/13 |
Driver airbag squib 1 |
62L |
| R12/14 |
Driver airbag squib 2 |
40L |
| R12/14 |
Driver airbag squib 2 |
63L |
| R22/4 |
Steering wheel heater |
47L |
| R22/4b1 |
Heating element temperature sensor |
48L |
| R22/4r1 |
Steering wheel heater heating element |
46L |
| S110 |
Left multifunction steering wheel button group |
28L |
| S110 |
Left multifunction steering wheel button group |
50L |
| S110/1 |
Steering wheel downshift button |
36L |
| S110/1 |
Steering wheel downshift button |
61L |
| S110s1 |
Scroll forward/back button |
27L |
| S110s1 |
Scroll forward/back button |
49L |
| S110s3 |
System selection button |
27L |
| S110s3 |
System selection button |
49L |
| S110s4 |
"Back" and voice control system OFF button |
29L |
| S110s4 |
"Back" and voice control system OFF button |
51L |
| S110s6 |
OK button |
29L |
| S110s6 |
OK button |
52L |
| S111 |
Right multifunction steering wheel button group |
32L |
| S111 |
Right multifunction steering wheel button group |
54L |
| S111/1 |
Steering wheel upshift button |
35L |
| S111/1 |
Steering wheel upshift button |
60L |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
30L |
| S111s1 |
Buttons + and - for setting specific functions and volume control |
53L |
| S111s3 |
Accept/terminate phone call button |
31L |
| S111s3 |
Accept/terminate phone call button |
53L |
| S111s4 |
Voice control system ON button |
32L |
| S111s4 |
Voice control system ON button |
54L |
| S111s6 |
Mute button |
33L |
| S111s6 |
Mute button |
55L |
| S4 |
Combination switch |
66D |

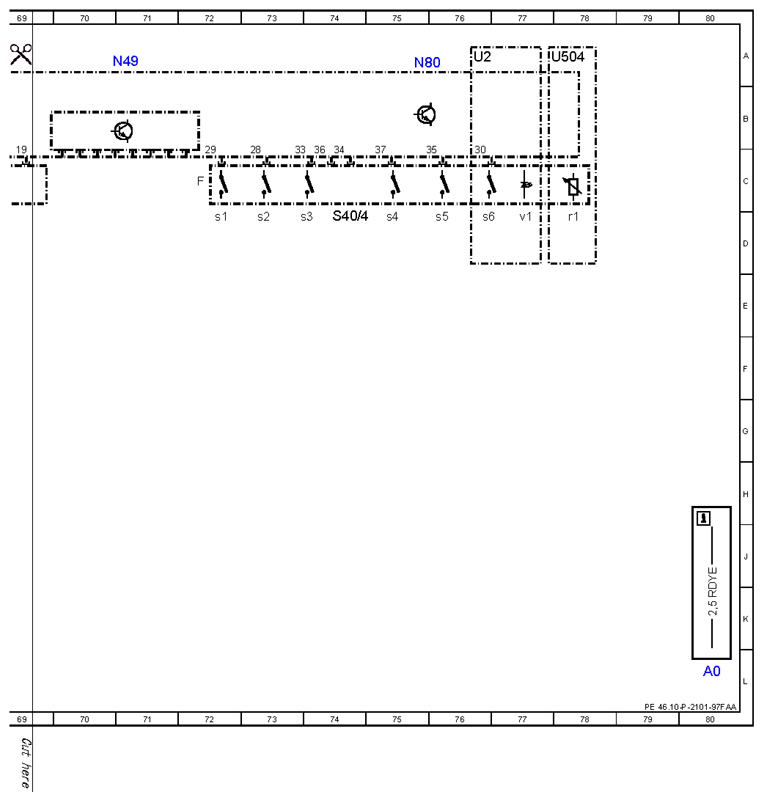

| S40/4 |
Cruise control lever |
74D |
| S40/4r1 |
DISTRONIC control |
78D |
| S40/4s1 |
Resume from memory switch |
72D |
| S40/4s2 |
Decelerate and set switch |
73D |
| S40/4s3 |
Accelerate and set switch |
73D |
| S40/4s4 |
OFF switch |
75D |
| S40/4s5 |
Indicator switch |
76D |
| S40/4s6 |
SPEEDTRONIC switch |
76D |
| S40/4v1 |
SPEEDTRONIC light emitting diode |
77D |
| S4s1 |
Turn signal lamps switch |
65D |
| S4s2 |
Headlamp flasher/high beam switch |
65D |
| S4s3 |
Low beam switch |
66D |
| S4s4 |
Windshield washer system switch |
66D |
| S4s5 |
Wipe switch |
67D |
| S59 |
Steering column adjustment switch |
68D |
| U12 |
Valid for left-hand drive vehicles |
3E |
| U13 |
Valid for right-hand drive vehicles |
3E |
| U2 |
Valid for all except USA |
76A |
| U504 |
Valid for DISTRONIC |
77A |
| U57 |
Valid for model 204.2 |
9E |
| U57 |
Valid for model 204.2 |
13E |
| U57 |
Valid for model 204.2 |
17E |
| U58 |
Valid for model 204.0 |
9F |
| U58 |
Valid for model 204.0 |
13E |
| U58 |
Valid for model 204.0 |
17E |
| U59 |
Valid for model 204.9 |
4E |
| U59 |
Valid for model 204.9 |
13E |
| U59 |
Valid for model 204.9 |
17E |
| U60 |
Valid for model 204.3 |
9F |
| U60 |
Valid for model 204.3 |
13F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
14E |
| U940 |
Valid without DIRECT SELECT |
18E |
| W15/5 |
Left front footwell ground point |
6G |
| W15/5 |
Left front footwell ground point |
3G |
| W15/5 |
Left front footwell ground point |
11G |
| W15/7 |
Right front footwell ground point |
3G |
| W15/7 |
Right front footwell ground point |
6G |
| W15/7 |
Right front footwell ground point |
11G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
5G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
10G |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
15L |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
19L |
| Z35/20 |
Cockpit chassis CAN (high) connector sleeve |
16G |
| Z35/21 |
Cockpit chassis CAN (low) connector sleeve |
15G |
